[Therabbittree]

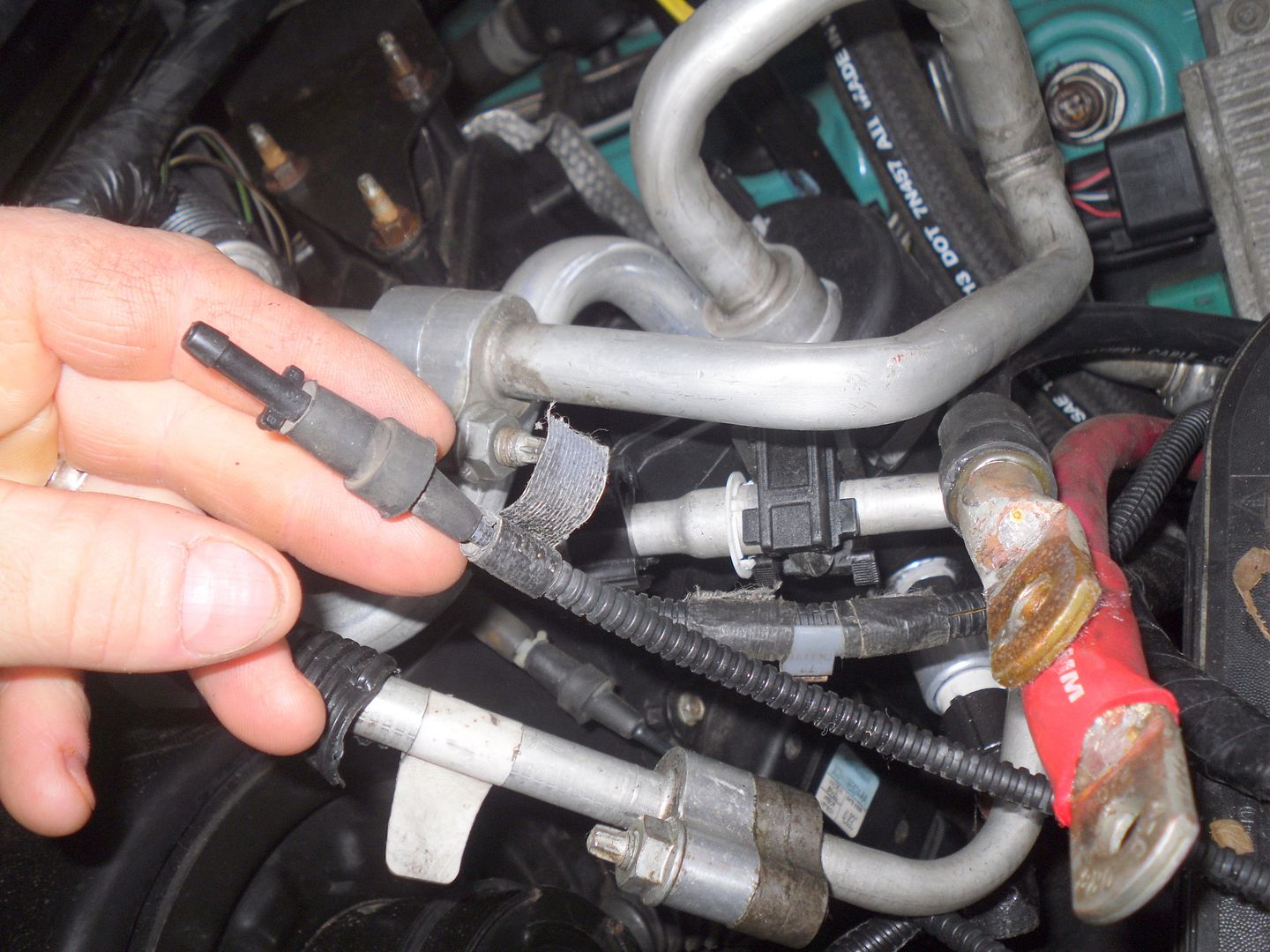

I am looking for some pictures of the passenger side excursion vacuum line setup. from the Vacuum storage tank area etc. I have one black line with out any thing connected to it, and nothing obvious to hook it up to. I will try to post some pictures, but Photo Bucket is driving me nuts lately...
Thanks,
Deo



[Therabbittree]

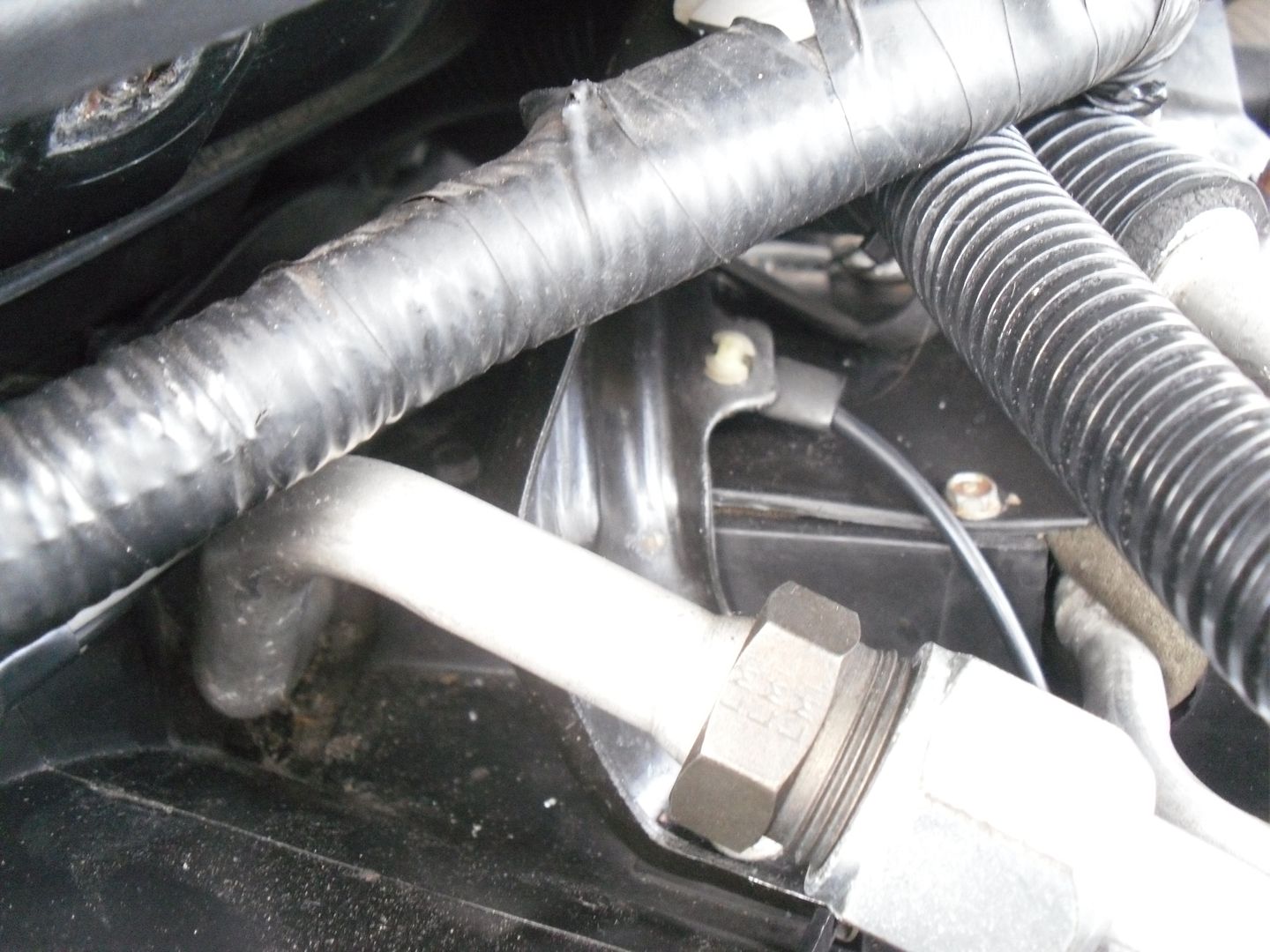

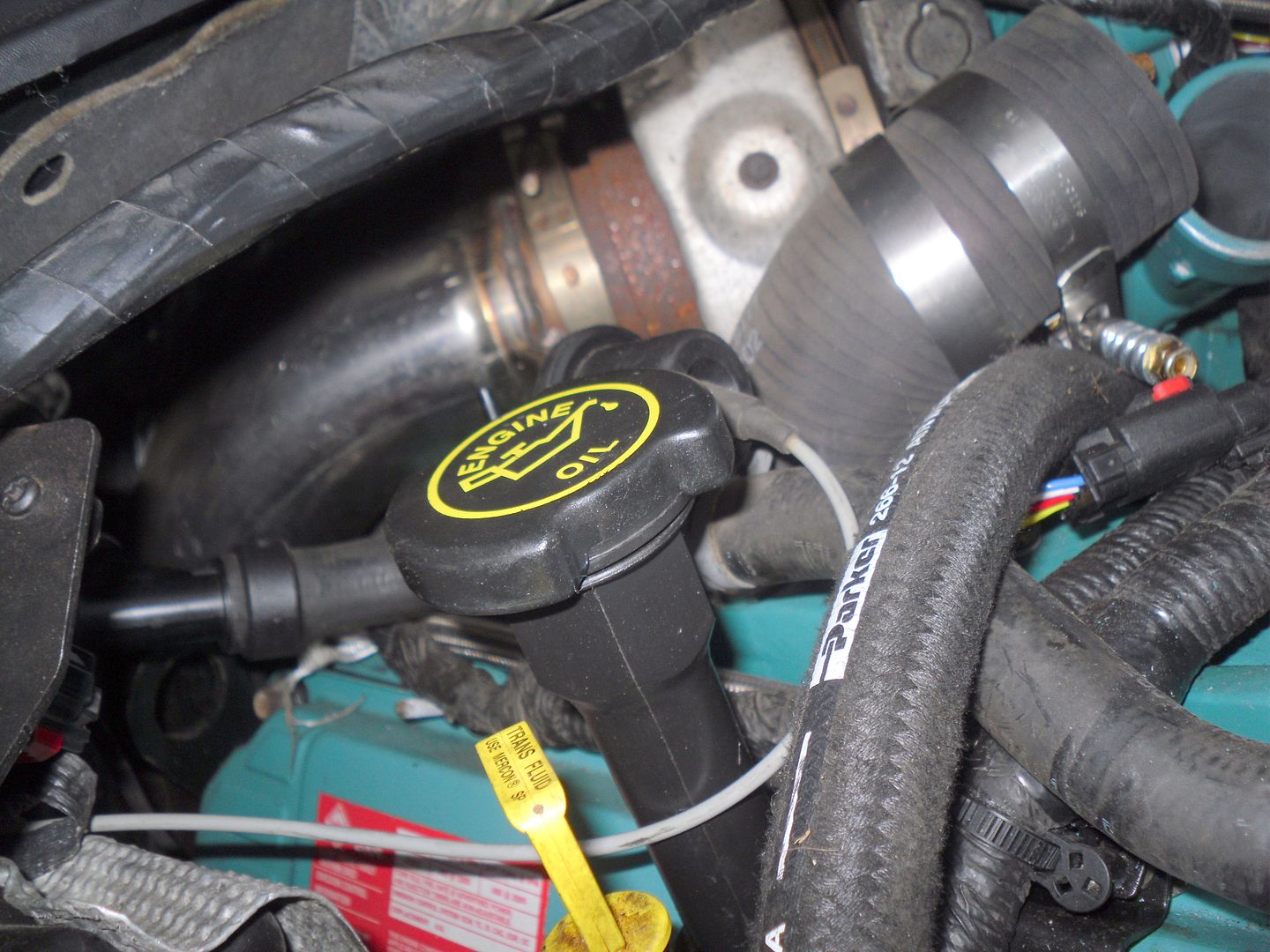

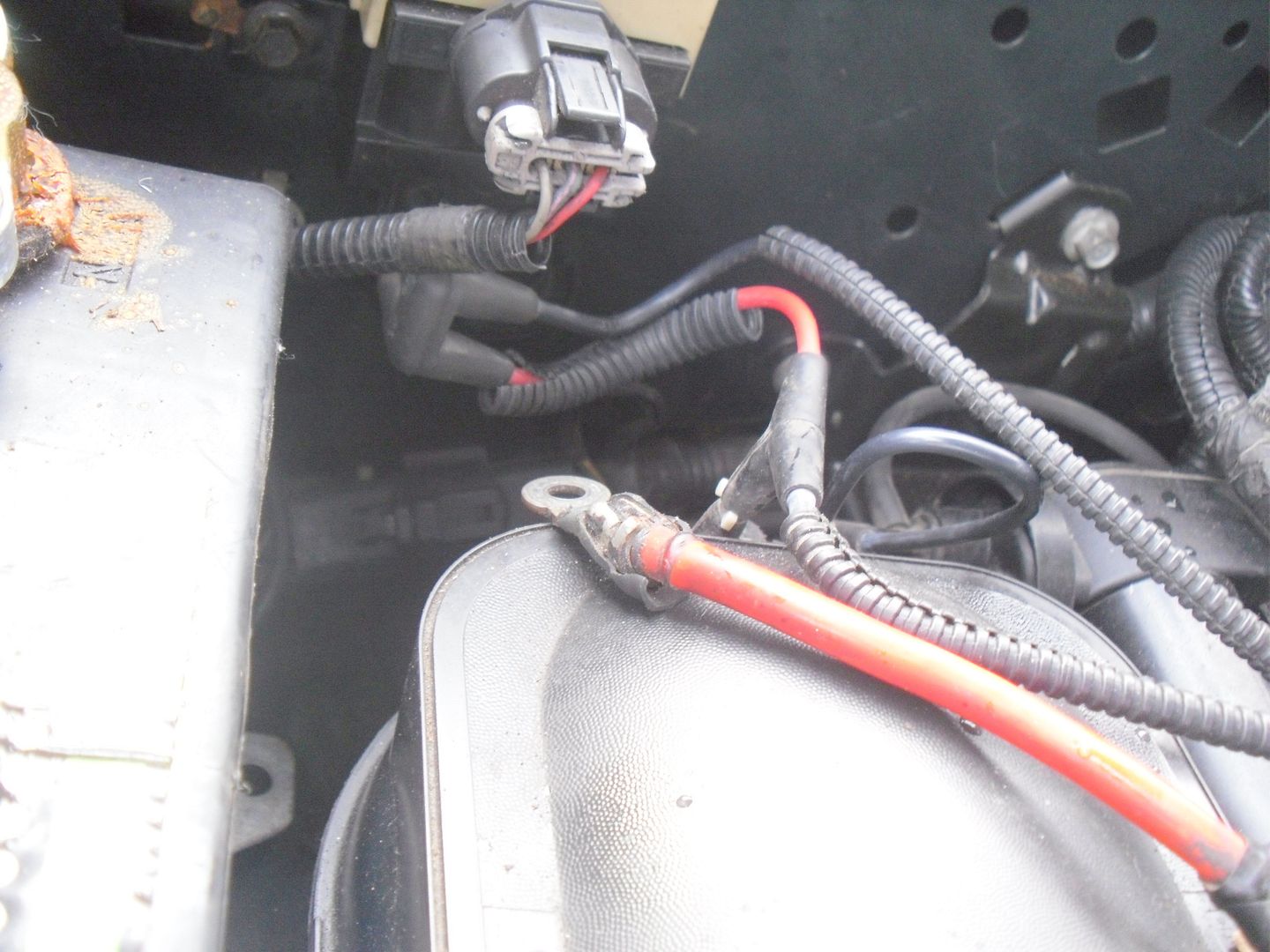

Here are the pictures. When truck is running vacuum is present at the hose.




The heater control is hooked up like normal



Any Ideas?



[ZMANN]

not sure by your picture but the other end should be easy to find it may even plug into the reservoir tank

if it wasn't dark and raining i would go look

but the lines just go to the ESOF solenoid on the fender and then to the hubs (shouldn't be vacuum present to the hubs )

to the heater control valve is the grey one and it look like it's intact

from the pump to the reservoir reservoir to the HVAC under the dash



[ZMANN]

minimal schematic



[Therabbittree]

Thanks!, I found it today, ended up to be one of the front hub lines... easy fix. thanks!,
Deo
