So I built my Headache rack. (first time)

Tools used:
Sawzaw
Drill
Cordless drill
Grinder
Lincoln Welder
level
pen/paper
Measuring tape
ratchet kit
Gloves and eye Protection

Supplies:
1/4" Steel for Bottom mounting plates.
1 1/2 Box tubing.
1/8" steel for Light hanger.
2/8? Angle iron for Front bed rail support.
Grade *8 Bolts, nuts and washers.
Black spray paint.

All cost me nothing lol :D
__________________________________________________________

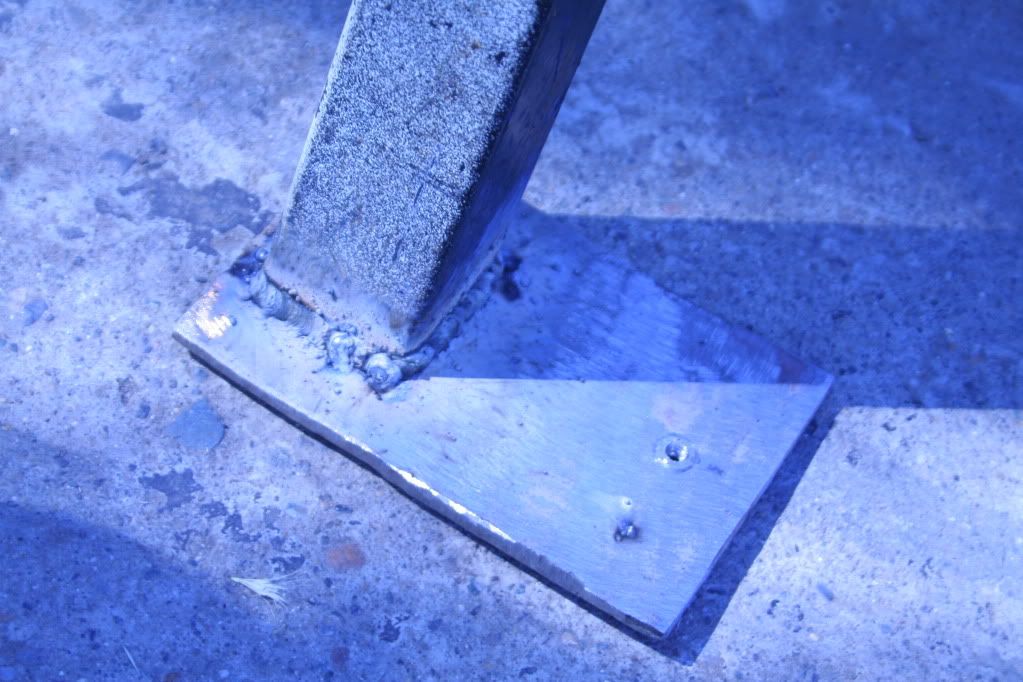

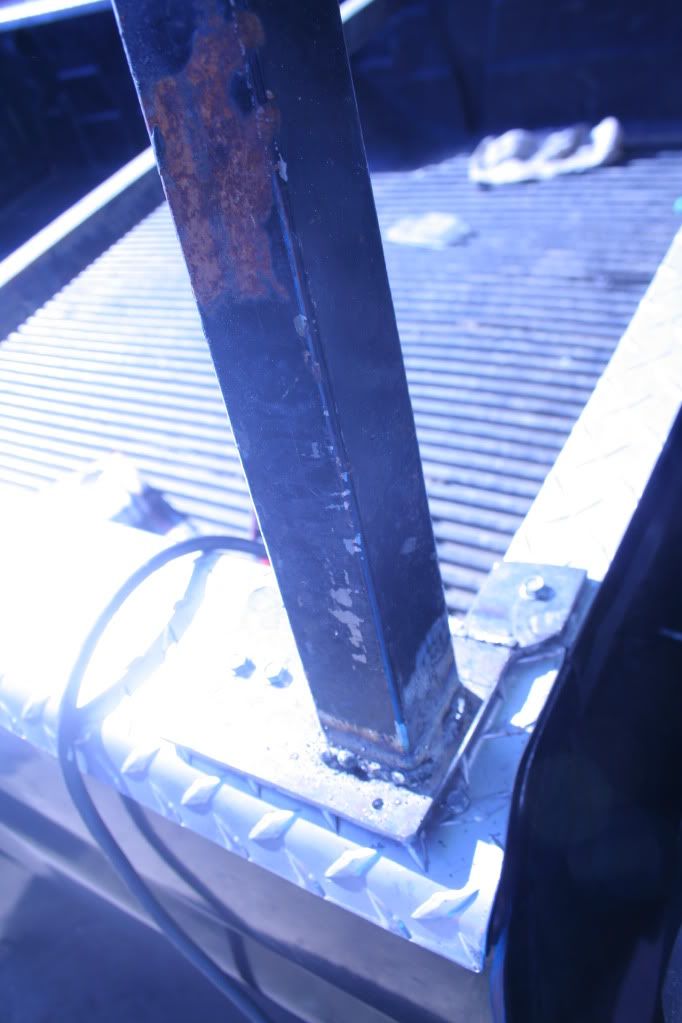

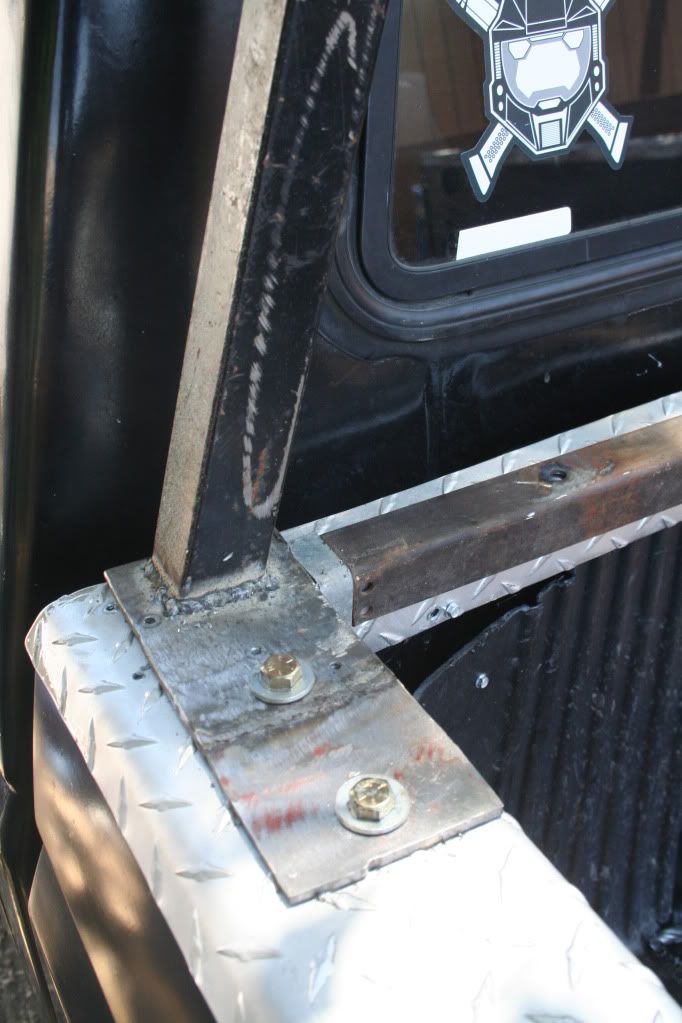

I made my first Mounting design but didnt work to well so i had to modify and add to the plate.

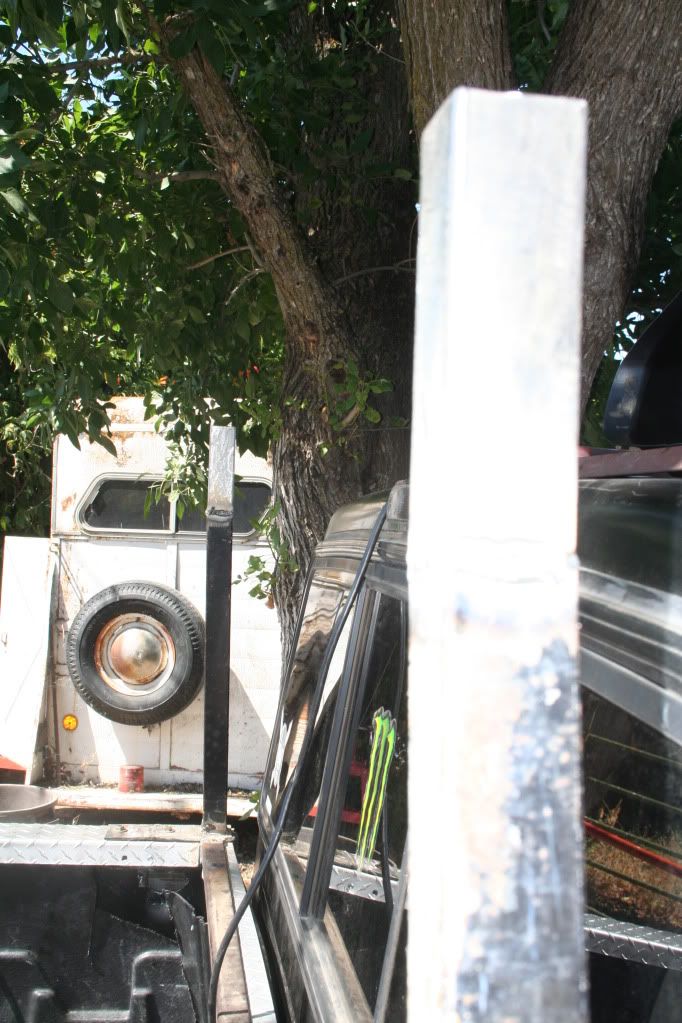

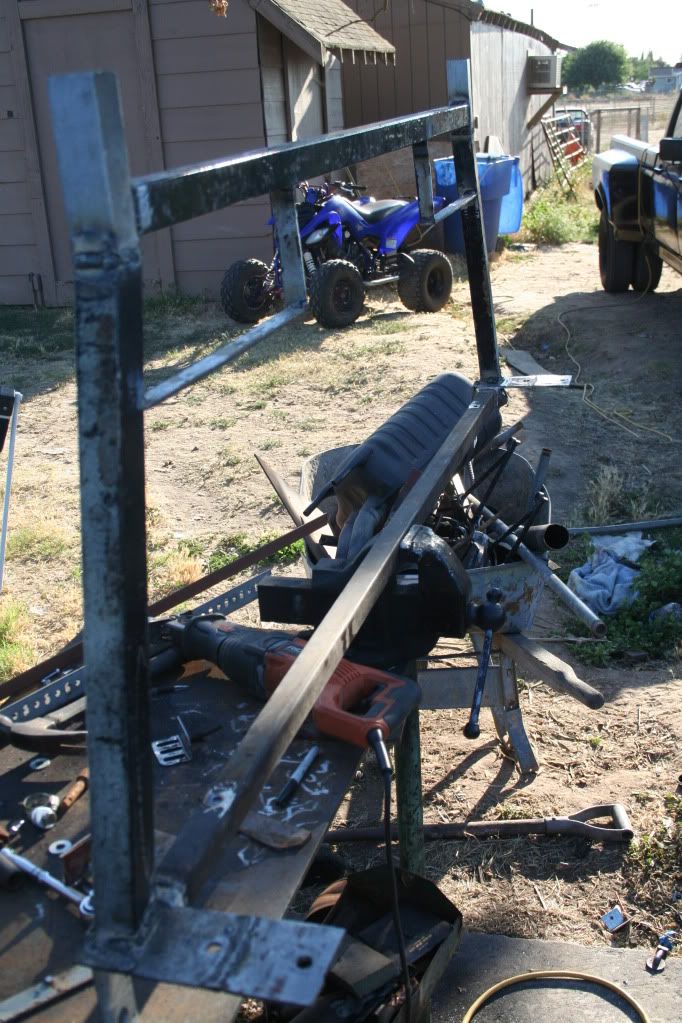

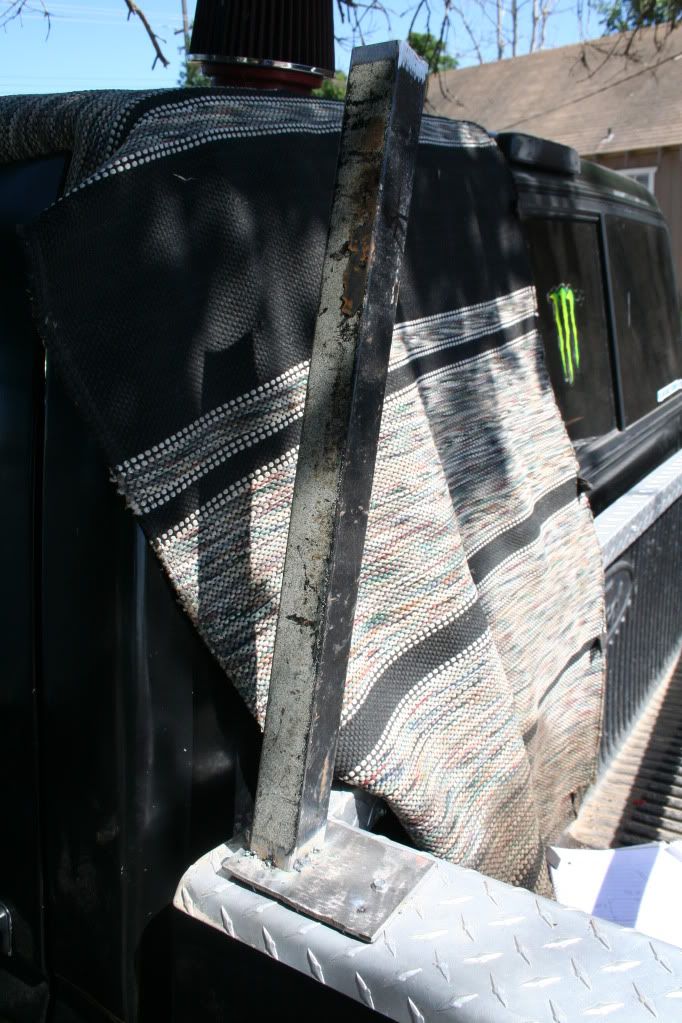

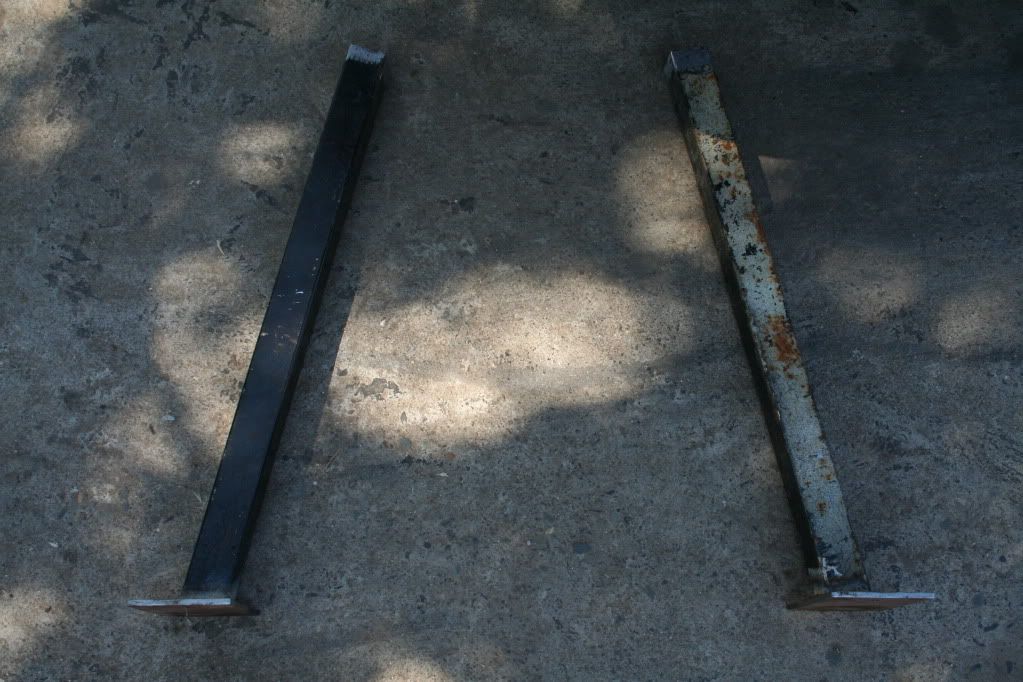

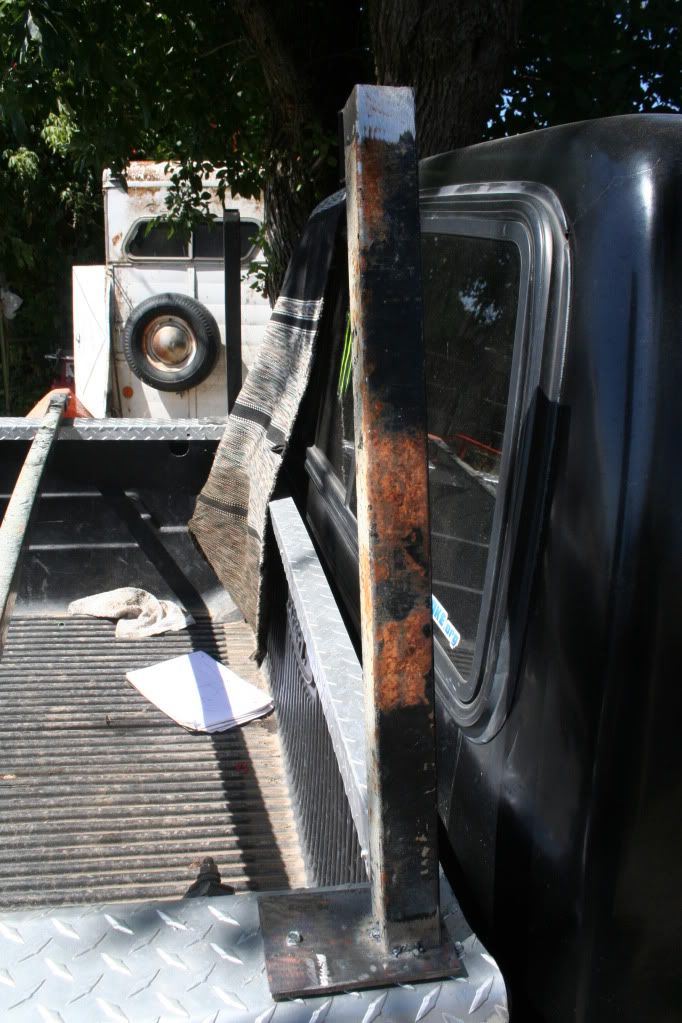

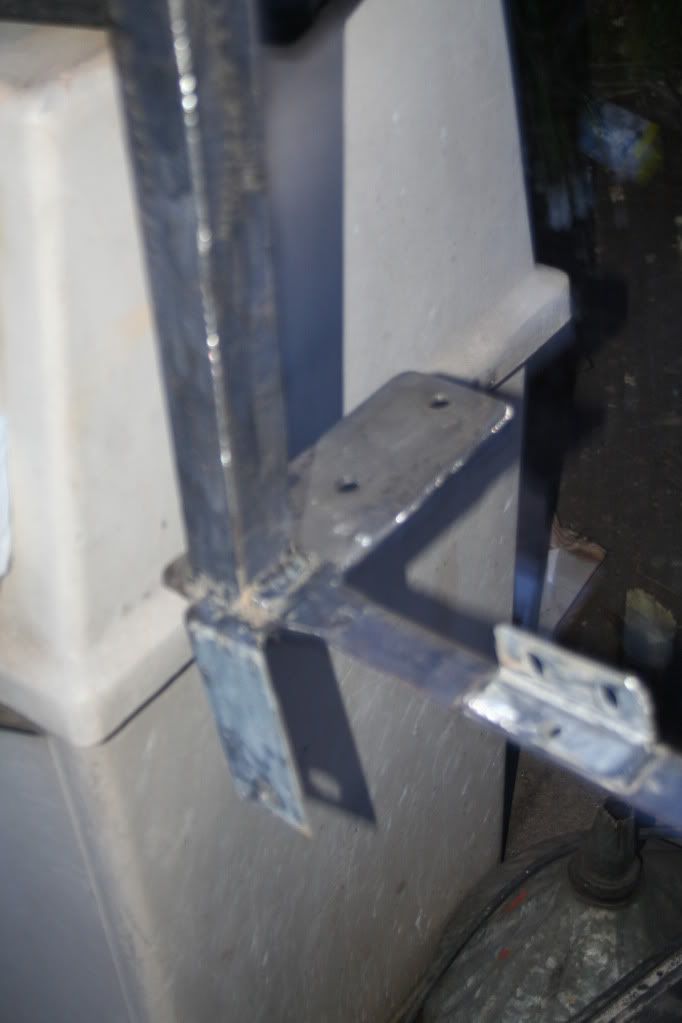

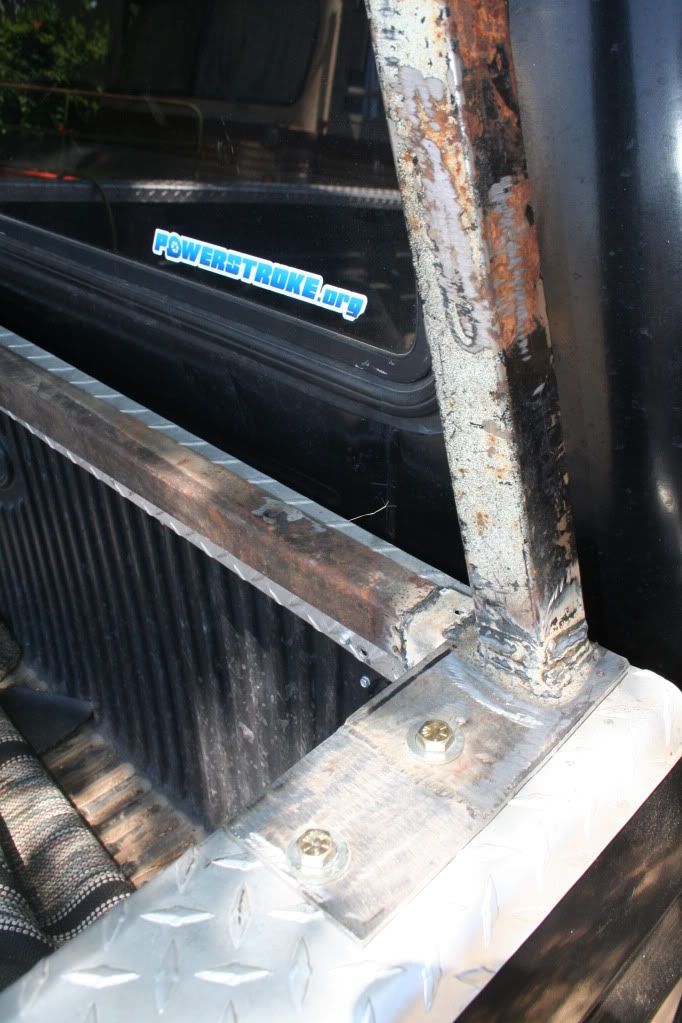

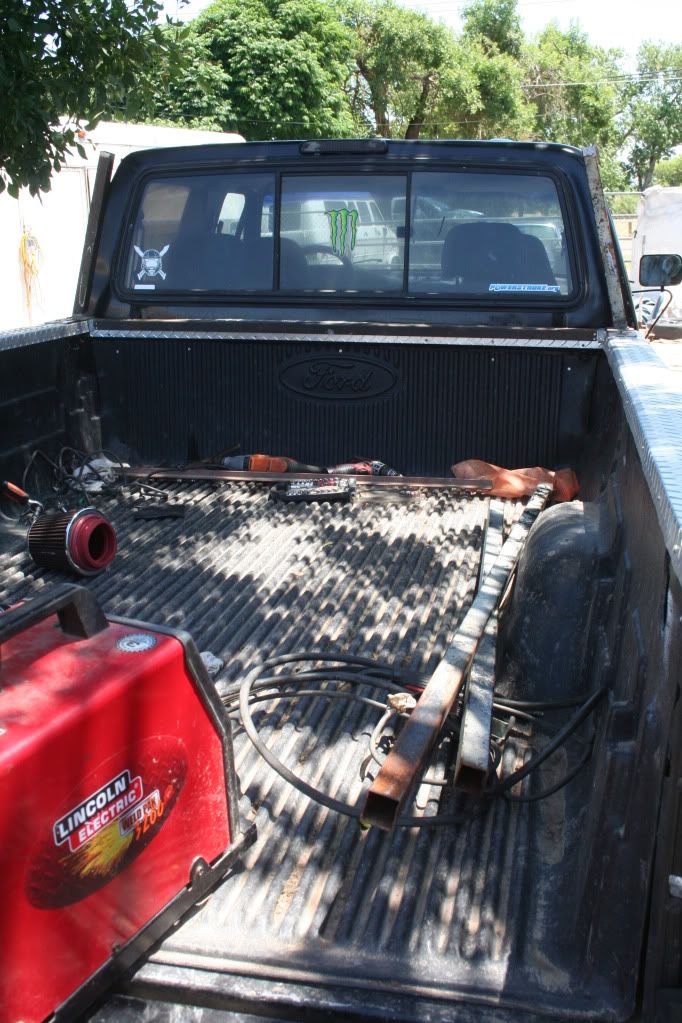

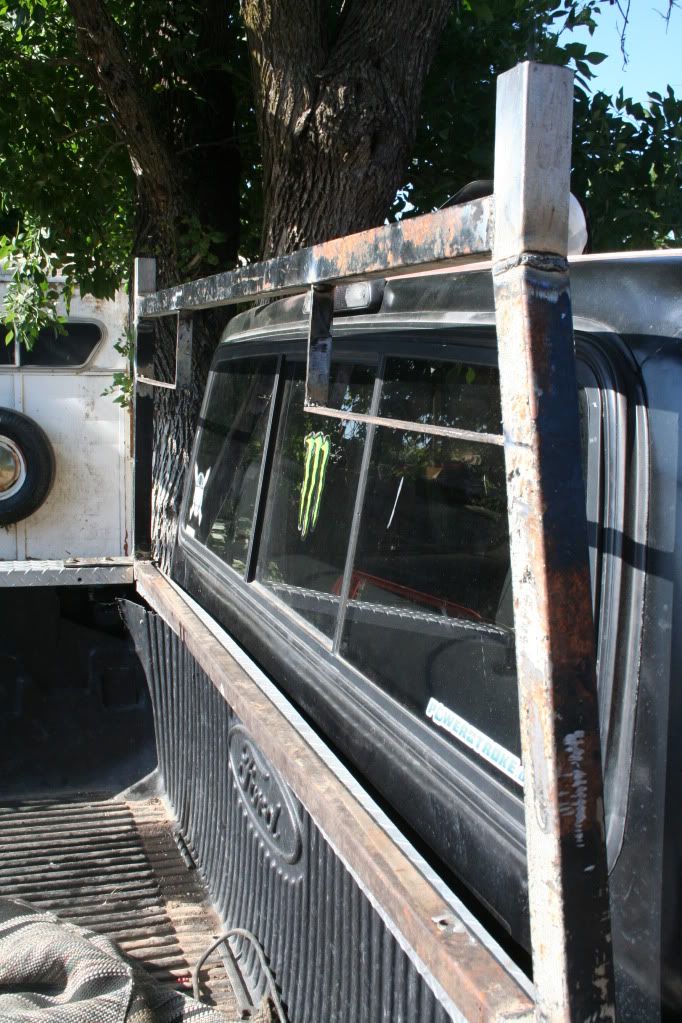

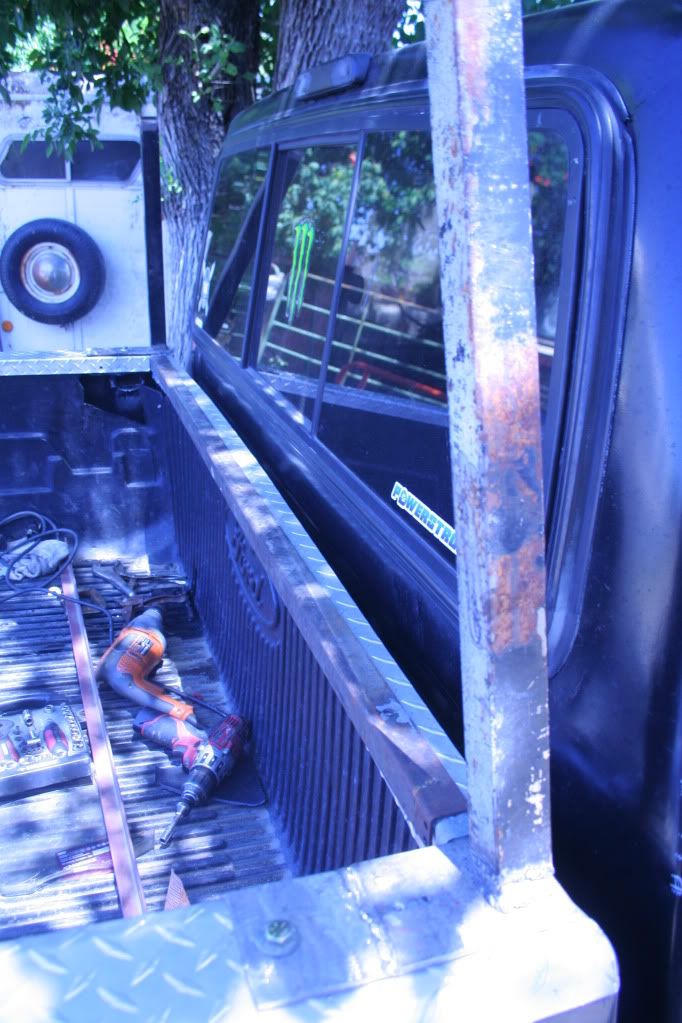

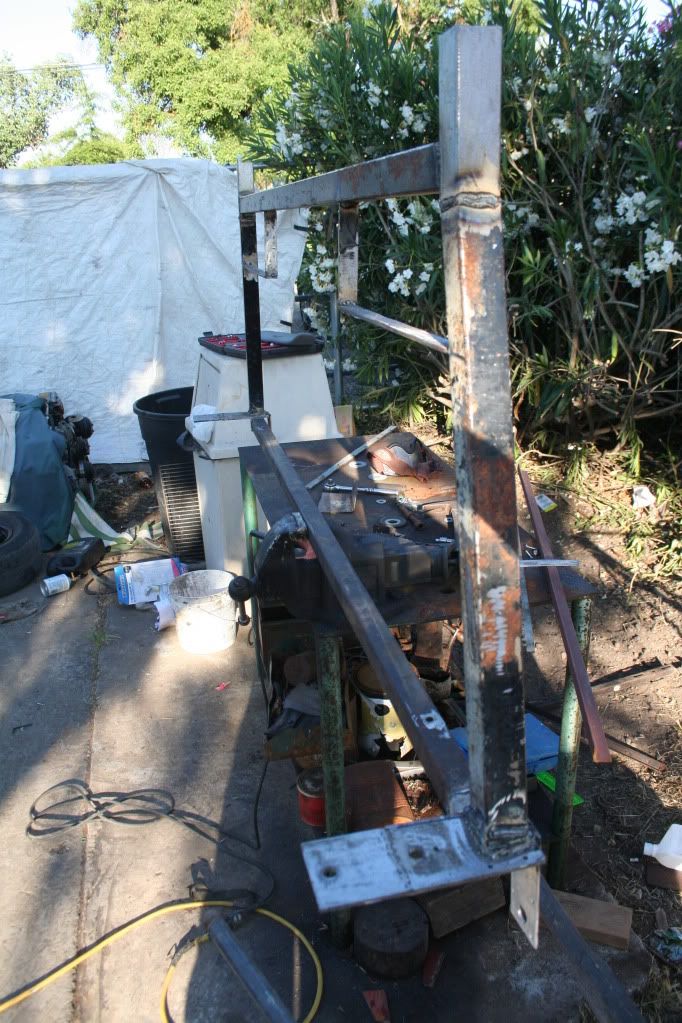

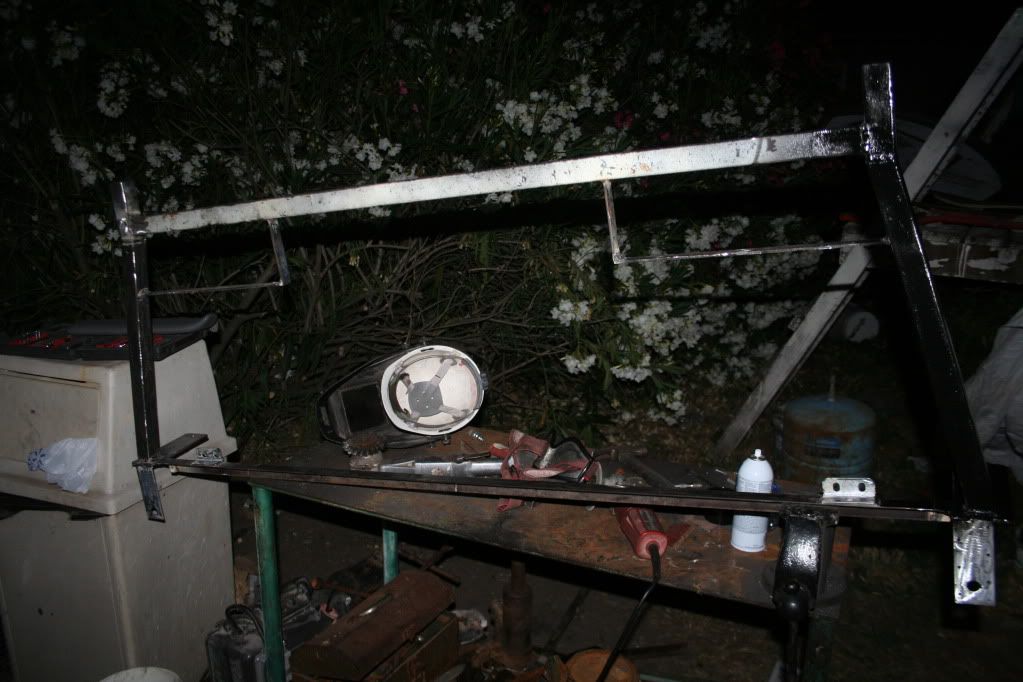

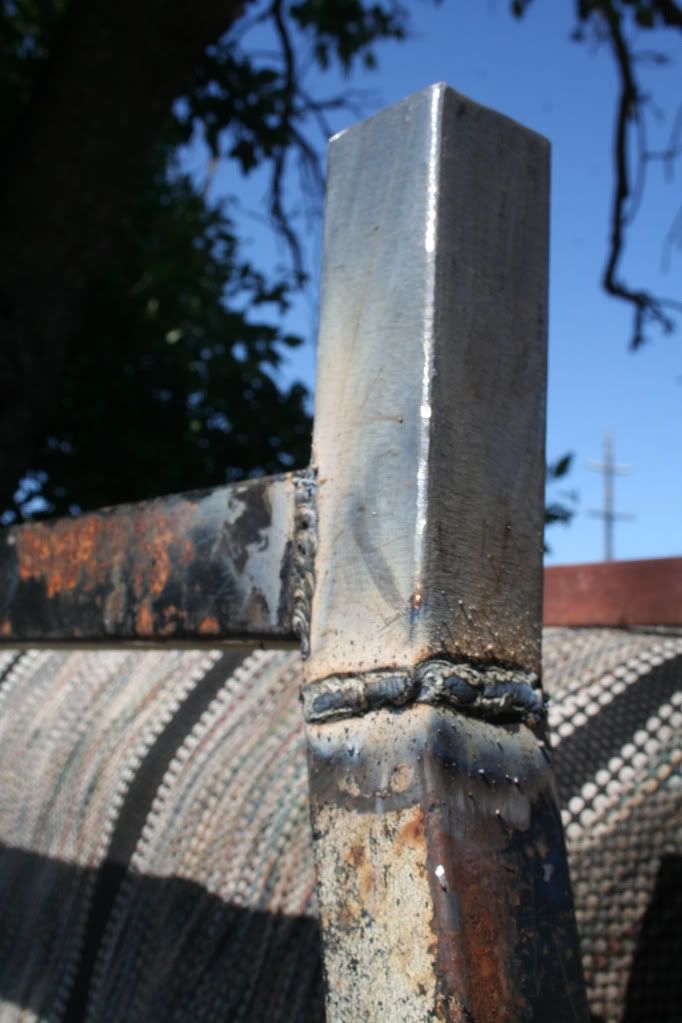

Pictures are from beggining to close to end:





























I dont have a SHop so i do my work outside.


·
Viking Heavy Diesel
Joined
·
20,738 Posts
Well c'mon then, lets see the rest of it.


·
Registered
Joined
·
5,393 Posts
Discussion Starter #3
I no. I no, I have to upload em. Just painted it today.


·
Viking Heavy Diesel
Joined
·
20,738 Posts
I will wait patiently I guess.


·
Registered
Joined
·
5,393 Posts
Discussion Starter #5
haha your gonna have to, Cuz My trucks filled with Yard sale left overs. Wont be empty till tommorow :doh: so the Rack is covered along with my 8 feet of beed


·
Registered
Joined
·
2,166 Posts
well comon man!


·
Registered
Joined
·
5,393 Posts
Discussion Starter #7
Well do you want pix with a bunch of crap in the back?>>


·
Premium Member
Joined
·
2,402 Posts
Still Waiting.......
Doug


·
Registered
Joined
·
5,393 Posts
Discussion Starter #9
Hah, ALright ill get some with a bunch of crap in front of it.


·
Registered
Joined
·
5,393 Posts
Discussion Starter #10
Uploading them now. SHould be up in the next 5 mins. Remember ITs not gonna be a good one lol


·
Registered
Joined
·
5,393 Posts
Discussion Starter #11

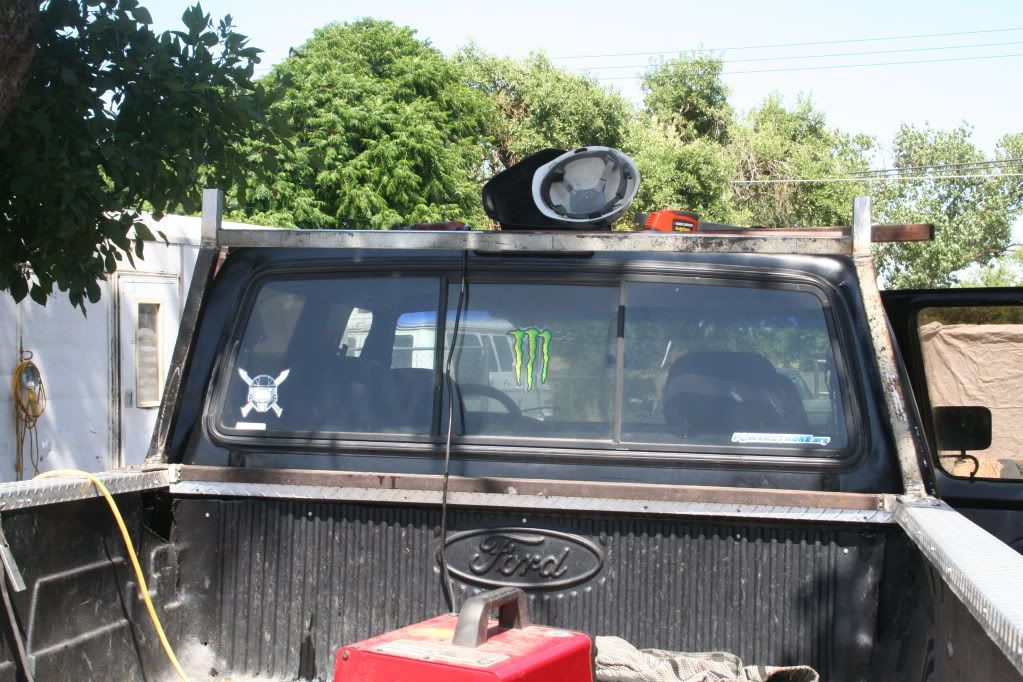

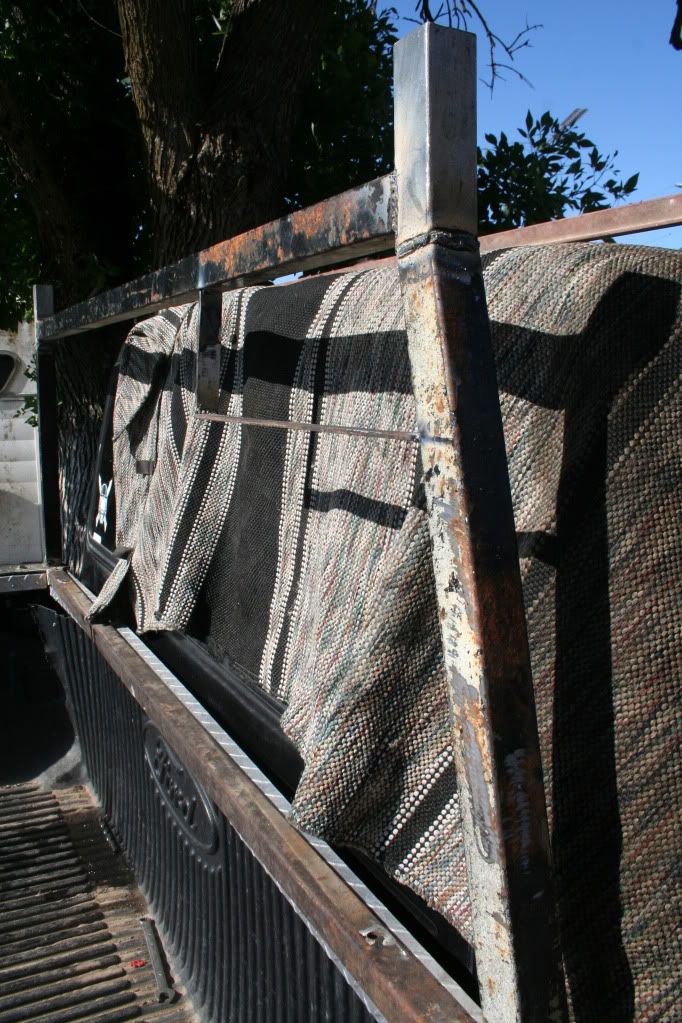

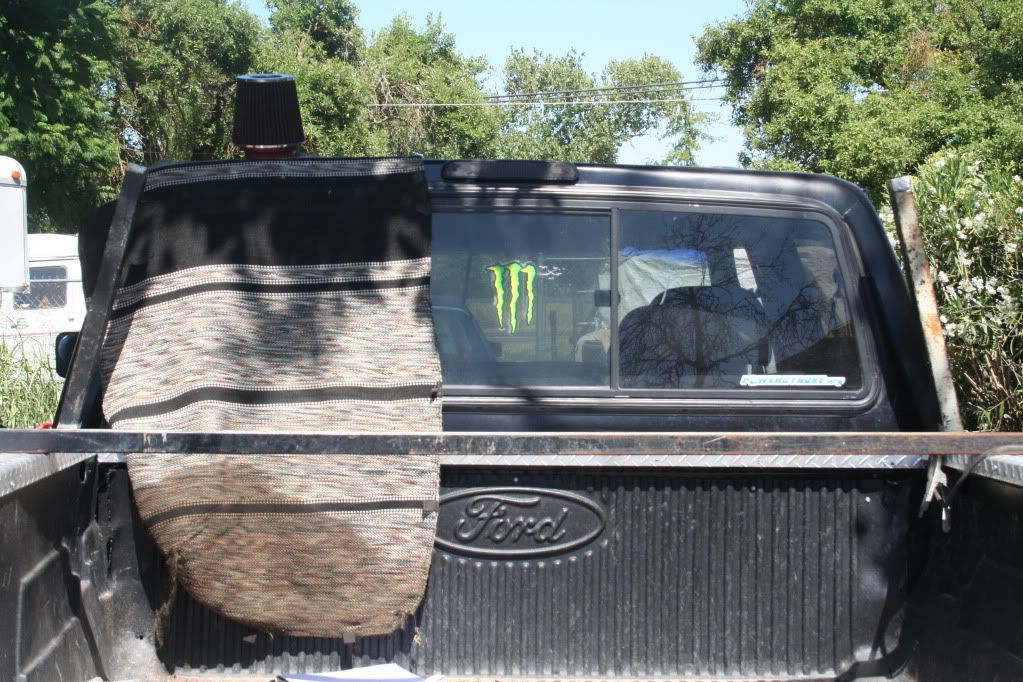

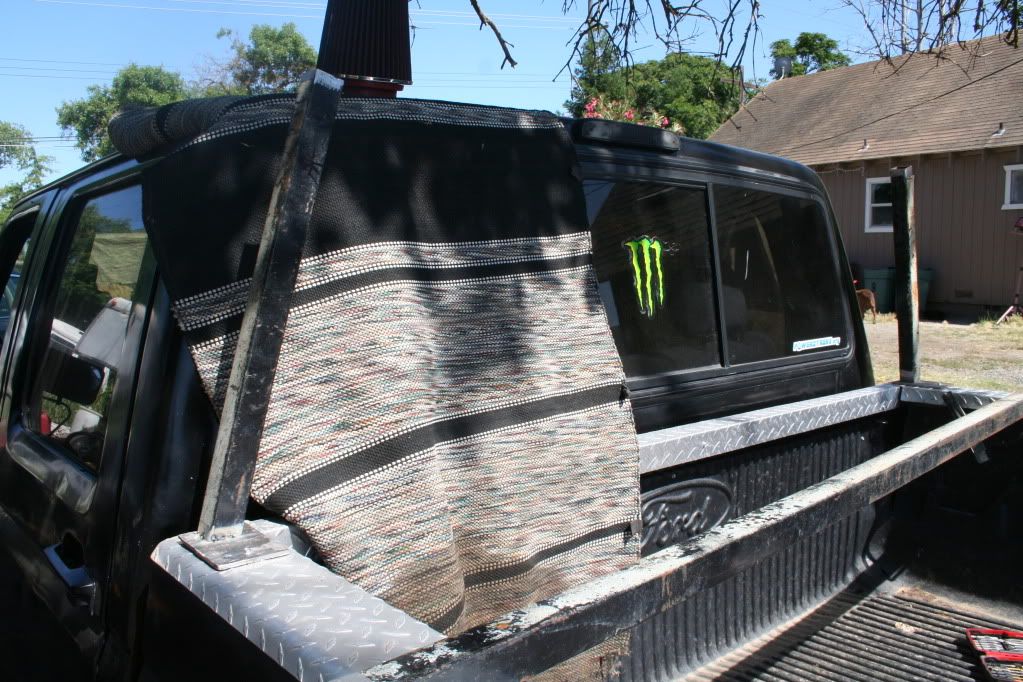

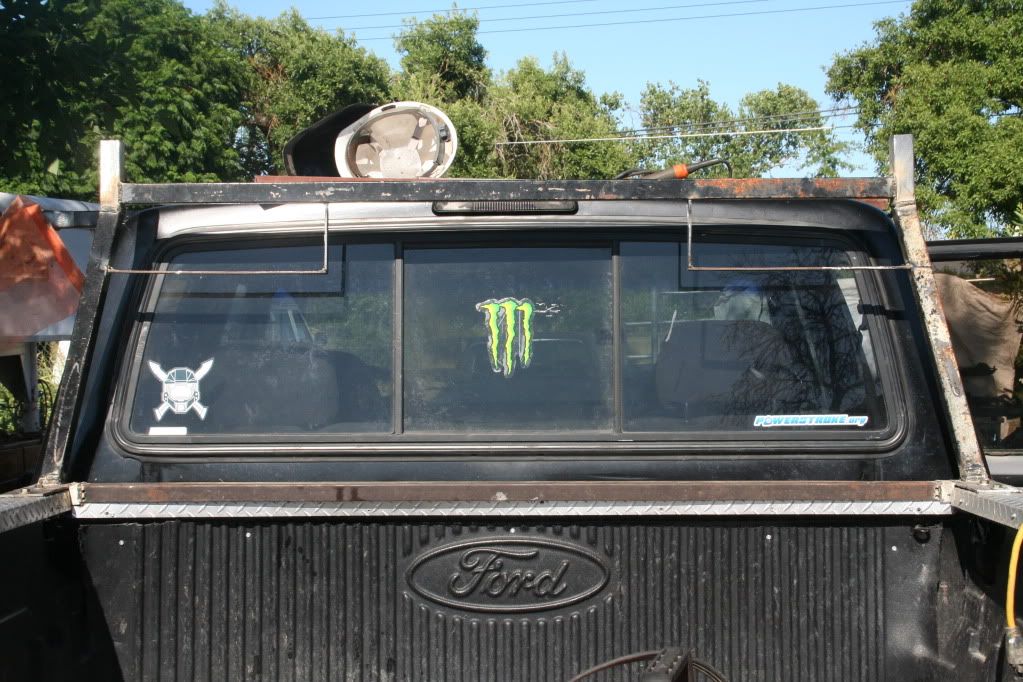

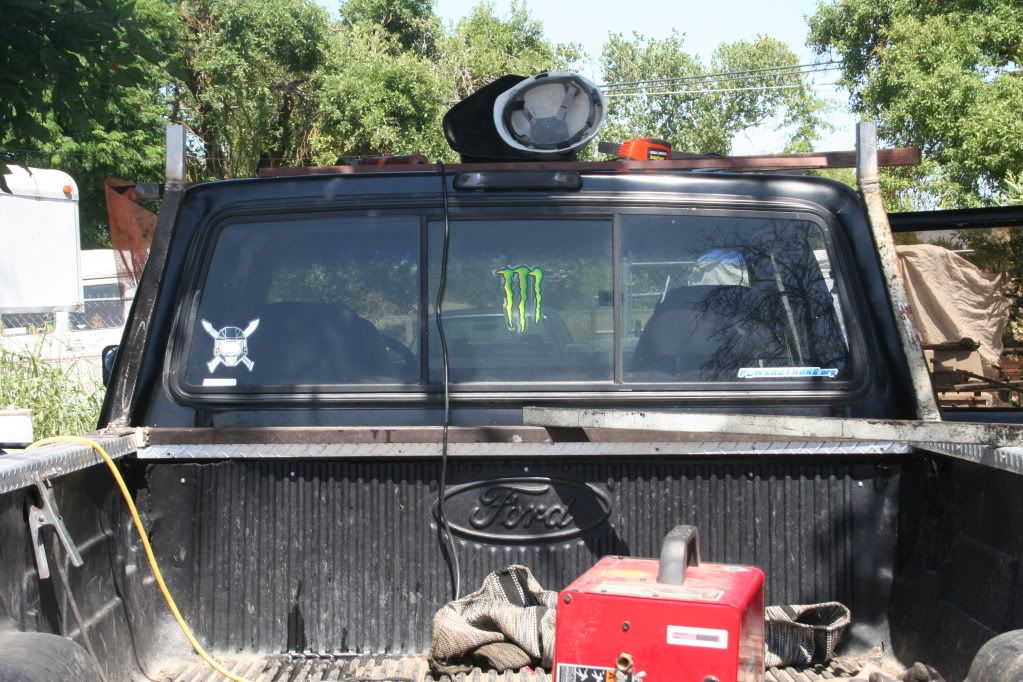

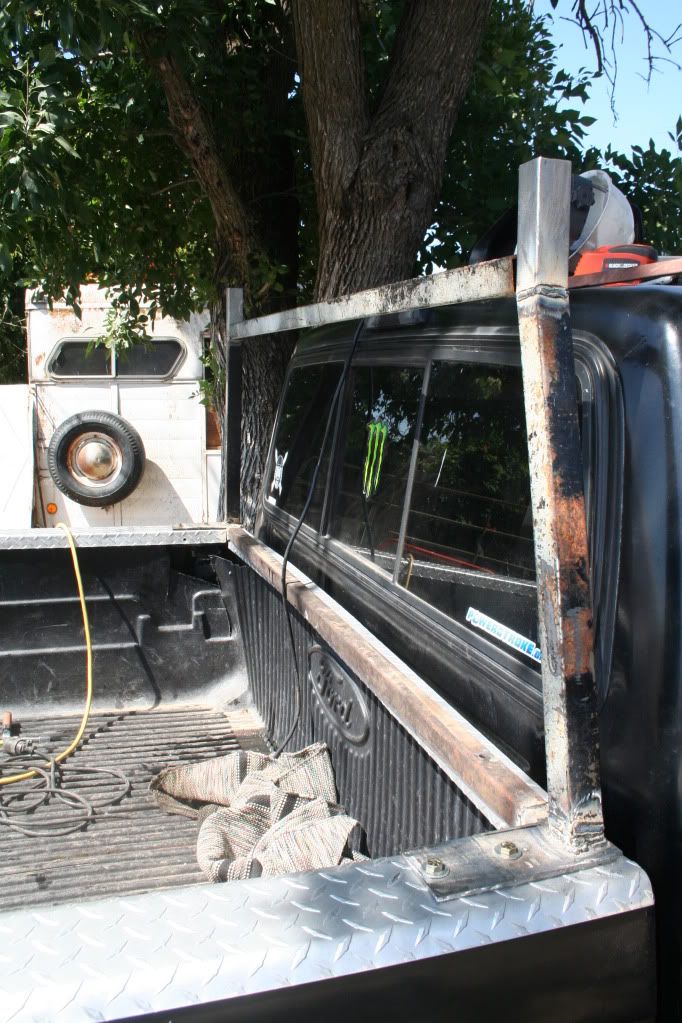

alright here ya go.


·
Registered
Joined
·
5,393 Posts
Discussion Starter #12
I havent installed my Lights or strobes yet.


·
Registered
Joined
·
5,393 Posts
Discussion Starter #14
haha, NOpe. Just a open day. Wiring isnt fun.

I have to Mock em up. Drill the hole. Drill thru the Tubing Drill thru my bed, Wrap the wires up COnnect the Strobes in a X pattern. Run it up the truck to the cab. Go thru the floor, then wire to the controller.
not easy/


·
Registered
Joined
·
2,236 Posts
quit complaining... get it done, :hehe: just kidding good job man,

looks incomplete for some reason though probably because im used to seeing them with expanded steal or cross bars, etc.
there is a nice one ive seen though that had spider web design might be something youd look at and add to yours...


·
Registered
Joined
·
5,393 Posts
Discussion Starter #16
Yeah i dont wanna do the spyder look. And it is incomplete lol going to raise it when i get my riof rack and throw spotligh on this rack and the front of the roof rack.

I might do a net design on he head rack. Took me long enough to get this one to fit perfect. I wentthru 3 design plans on the pillars. And had to do 3 diff mounting setups till i found the most solid one with a 3 bolt mounting space


·
Premium Member
Joined
·
23,192 Posts
you gonna build the roof rack too? i saw one yesterday on an old 53 chevy one ton, and it had a grape vine design, looked great imo.


·
Registered
Joined
·
5,393 Posts
Discussion Starter #18
I was going to build one but my uncles giving me a really nice yakima roof rack. I just have to widen it and then make a tie down pole across my roof for the racks clamps.


·
Premium Member
Joined
·
2,402 Posts
Don't catch the horse blanket on fire
when your welding. That wouldn't be good.
Doug


·
Registered
Joined
·
5,393 Posts
Discussion Starter #20

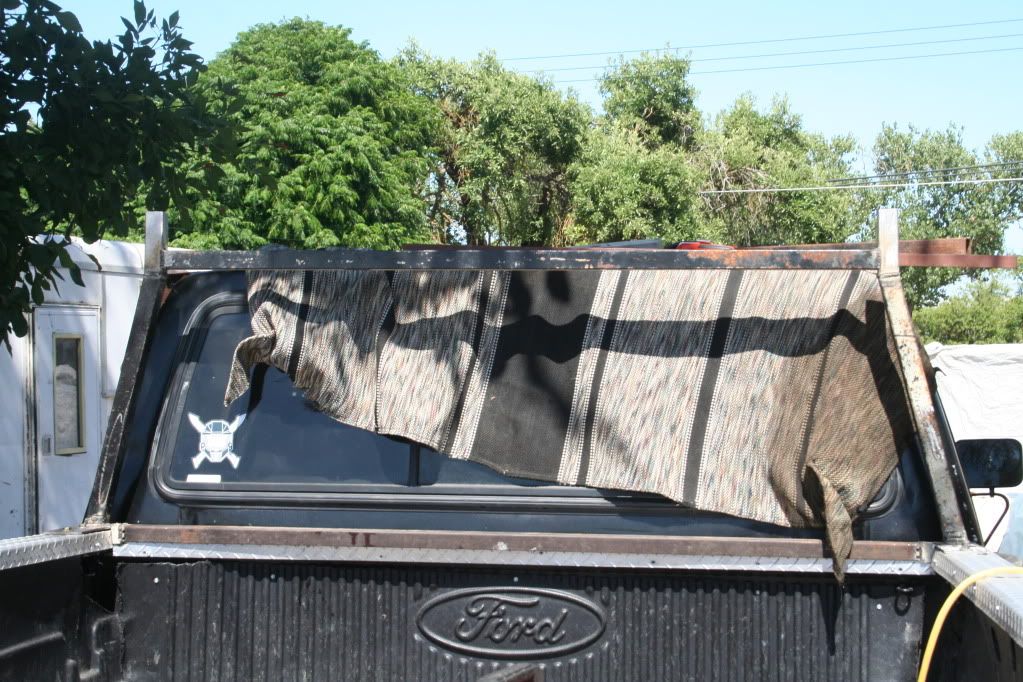

You caught that huh? haha works good acctually. COuldnt find the welding blanket. and this things like 1/2 thick if not more
