What are head studs?

Hey everyone,

New to the diesel world per say. I see alot of guys on here saying they have replaced their head studs? What are the head studs? What do they do? and how do you know if they went bad or are going bad?
Reply With Quote Quick reply to this message
Sponsored Links
Advertisement

  #2
Old 11-26-2011, 05:41 PM
Compression Ignition Addict


Join Date: Jul 2011
Location: springfield,il
Posts: 238
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 1 reviews
i hate to be the one to say this but "search"
head studs replace the stock weak head bolts
Reply With Quote Quick reply to this message
  #3
Old 11-26-2011, 05:49 PM
Compression Ignition Addict


Join Date: Oct 2011
Location: Jenks, OK
Posts: 347
Thanks: 1
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
Head studs are like a bolt that is threaded on both ends, instead of like a normal bolt that has threads on one end and a head on the other end that you can put a wrench/socket on. You screw one end into the block, slide your heads over all the studs sticking up, then screw nuts onto the other theaded end and torque them down. ARP studs are very strong and race proven for many, many years.

Factory head bolts are TTY (torque to yield) meaning you can only use them once. They WILL stretch if you ever have an EGR cooler failure and get some coolant seepage into your intake stream (water doesn't compresss like air is and the weak point will make up this difference...the TTY head bolts) or get a head gasket leaking.

ARP's have a much higher strength.
Reply With Quote Quick reply to this message
  #4
Old 11-26-2011, 05:53 PM
Compression Ignition Addict


Join Date: Oct 2011
Location: Jenks, OK
Posts: 347
Thanks: 1
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews

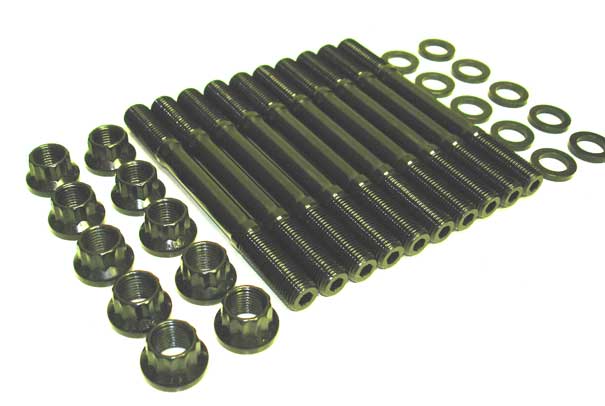

ARP head studs:

Reply With Quote Quick reply to this message
  #5
Old 11-26-2011, 05:53 PM
Compression Ignition Addict


Join Date: Oct 2011
Location: Jenks, OK
Posts: 347
Thanks: 1
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
They have an allen hole in the end, to put an allen wrench in to assist in screwing them into the block.
Reply With Quote Quick reply to this message
  #6
Old 11-26-2011, 05:59 PM
Compression Ignition Addict


Join Date: Oct 2011
Location: Jenks, OK
Posts: 347
Thanks: 1
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
Just reread the original posters question again. What they do is clamp the heads to the block. This is where all your combustion pressure is contained. They are under extreme force. Diesels have very high cylinder pressures so they need a lot of clamping force.

The heads sit on top of the pistons. Your fuel/air charge is ignited just under the heads. This is where the power/explosion of the combustion cycle happens and where all the power in your engine is made. As I said above, these engines have a problem with EGR cooler failures, which come from oil cooler failures/clogging from the Ford Gold Coolant. This link is copied from NYC F-350's signature. It tells you about the weak points of these engines, how to fix them and have a long happy relationship with your 6.0:

Basic things every 6.0 owner should know: Budget 6.0L Build - Diesel Forum - TheDieselStop.com

Last edited by code.mafia; 11-26-2011 at 07:01 PM.
Reply With Quote Quick reply to this message
  #7
Old 11-26-2011, 06:03 PM
NOT a Democrat


Join Date: Oct 2009
Location: Robinson Twp PA (Pittsburgh)
Posts: 4,509
Thanks: 2
Thanked 3 Times in 3 Posts
Feedback Score: 0 reviews
Send a message via AIM to Galaxie
Any motor that is built right should have good hardware such as head studs and studs where needed.

I use ARP on any motor I build. Most always studs where I can. e.g. heads, rockers, anything where I know needs clamping strengts and also parts I know I will have off again.

On our trucks, they are better than the TTY bolts as states above!
Reply With Quote Quick reply to this message
  #8
Old 11-26-2011, 06:20 PM
Super Moderator




Join Date: Mar 2008
Location: Abingdon, Md.
Posts: 11,972
Thanks: 3
Thanked 29 Times in 15 Posts
Feedback Score: 3 reviews
All this time I thought it was guys hung like bulls that thought that made them attractive to the womens.
Reply With Quote Quick reply to this message
  #9
Old 11-26-2011, 06:22 PM
information regurgitator


Join Date: Dec 2010
Location: NYC
Posts: 5,905
Thanks: 18
Thanked 180 Times in 167 Posts
Feedback Score: 0 reviews
EDIT before I post:
I see there are answers already posted, but this post took way too much time to type, so I am posting it anyway.

The way that the engine was manufactured, they installed a style of head bolts which are called Torque To Yield (TTY for short). As those bolts are tightened, they are designed to stretch a little bit.
The problem with that style is that they can still stretch more if cylinder pressures are higher than expected. When this happens, clamping force on the head is lost, the cylinder pressures lift the head off the block and the head gaskets blow.
What typically causes this to happen on the 6.0 is a culmination of a few things.
First, the block is cast in the factory using a sand mold. They (the manufacturer) does their best to get all of the sand out of the block, but some of this sand actually becomes part of the block. Over time (and wear) this sand can work its way free from the metal surfaces. This usually happens within the cooling system. This is part one.
Next, this casting sand will collect in the oil cooler that is internal to the engine. The oil cooler is a liquid/liquid style cooler, which means coolant and oil flow through it in alternating layered passages. This particular oil cooler has both liquids entering and exiting through the top of the cooler. Any and all debris present in the coolant will settle in the lower portion of the coolant passages, causing a blockage.
Now, we will talk about how the stock coolant that is used figures into this as well.
The Ford Gold coolant requires frequent monitoring of the additive package. The additives combat cavitation, corrosion in the cooling system and the freezepoint of the coolant. The heat that the egr cooler sees depletes the additives rapidly.
Lets stop here for a second and discuss what the egr cooler is, what it does and where it is. The EGR coolers job is to cool exhaust gases before they are reintroduced back into the engine for emissions purposes. The flow of cooled exhaust gases is controlled by the EGR valve. The coolant coming out of the top of the oil cooler is directly fed to the egr cooler. The egr cooler is connected to the exhaust system just previous to the turbo (as far as exhaust flow goes) on the passenger side. The exhaust gas temps can reach 1000F or more fairly easily.
Now, back to coolant. The coolant, once the egr cooler heat has depleted the additives, can create a goo within itself and allow rust scale to form on the walls of the cooling system. This junk and rust scale gets caught in the coolant passages in the oil cooler. This plugging will slow the coolant flow coming out of the oil cooler, and the slower moving coolant going through the egr cooler allows the egr cooler to overheat. Continual overheating of the egr cooler causes it to fail, and begin to leak coolant. This coolant will "stack up" behind the egr valve, waiting for it to open. Once the valve does open, your engine gulps down a drink of coolant. This coolant entering the cylinders is what will raise the cylinder pressure beyond what those stock TTY head bolts can withstand, they stretch, the heads lift, and your head gaskets are toast. There are other consequences to a failed egr cooler. The coolant can also flow out into the exhaust stream while the engine is running, and flow through the side of the turbo that the variable vanes are. Mixing coolant, soot and heat will create a substance that will interfere with the free movement of those vanes. The end result of this is "overboost" or "underboost" conditions. Overboost by itself could possibly pop the head gaskets. Either way, it will run like crap, and you should see white smoke coming out of the tailpipe.
When the truck is shut off, you are still not "out of the woods." The leak is still leaking since the cooling system is still under pressure. The coolant will flowout of the failed egr cooler and flow down the exhaust and enter the exhaust manifold on the passenger side of the engine. This will result in a big cloud of white smoke soon after you start the truck, and it could effect how the truck runs at start-up as the coolant gets pushed through the turbo. You could also see water exiting the tailpipe.
When the truck is off, should your egr cooler leak enough, the coolant could enter the cylinders on that side of the engine through whatever exhaust valves are open when the engine is switched off. When this happens, the engine hydrolocks.
All of the above is usually what causes the head gaskets to blow.
Most of the signs of a failed egr cooler and popped head gaskets are the same, but head gaskets will leak compression from the combustion chambers into the cooling system. The pressure will eject coolant out of the degas bottle (where you monitor/add coolant). Cooling system pressures with blown head gaskets will exceed 16psi. The cap on the degas bottle vents pressure above 16psi, and this pressure will push coolant out.
Once all of this happens, NOBODY wants to put the TTY head bolts back on the engine, (other than FORD during warranty repairs) since that type of fastener isn't the best solution. They use head studs. Head studs screw into the block of the engine, then the heads are slid down onto them, and a washer/nut is what applies the clamping force. The studs do not stretch due to their strength.
I think that just about covers it all. If I missed something, someone will fill it in.
