homemade bumper

I have had alot of people ask about the bumper on my 94 so I thought I would do a write up about building it along pictures.

For my winter project for the winter of 10-11 I decided to build a bumper with tow points and a 2" receiver. I found a great deal on a piece of 8" aluminum channel so that's what I went with. Then I built the frame out of 2x3 and 2x2 1/4" steel.

I cut a small portion of the front of the frame rails and welded two 2"receivers inside the frame rails and then through bolted them.


I used 1/2" plate to make the tow points and drilled a 5/8" hole in them to mount shackles. I carry the shackles in my toolbox. I shaped the aluminum into the shape I wanted and got a large sheet of 1/4" aluminum and filled the gap between the bumper and the truck.

After I got the basic shape I had to cut the ends off.

I bolted the bumper to the frame with 4 1/4" bolts. I cut the center of the bumper out so that it would have holes like the stock one did. I cut it to large and had to go back and fill it.

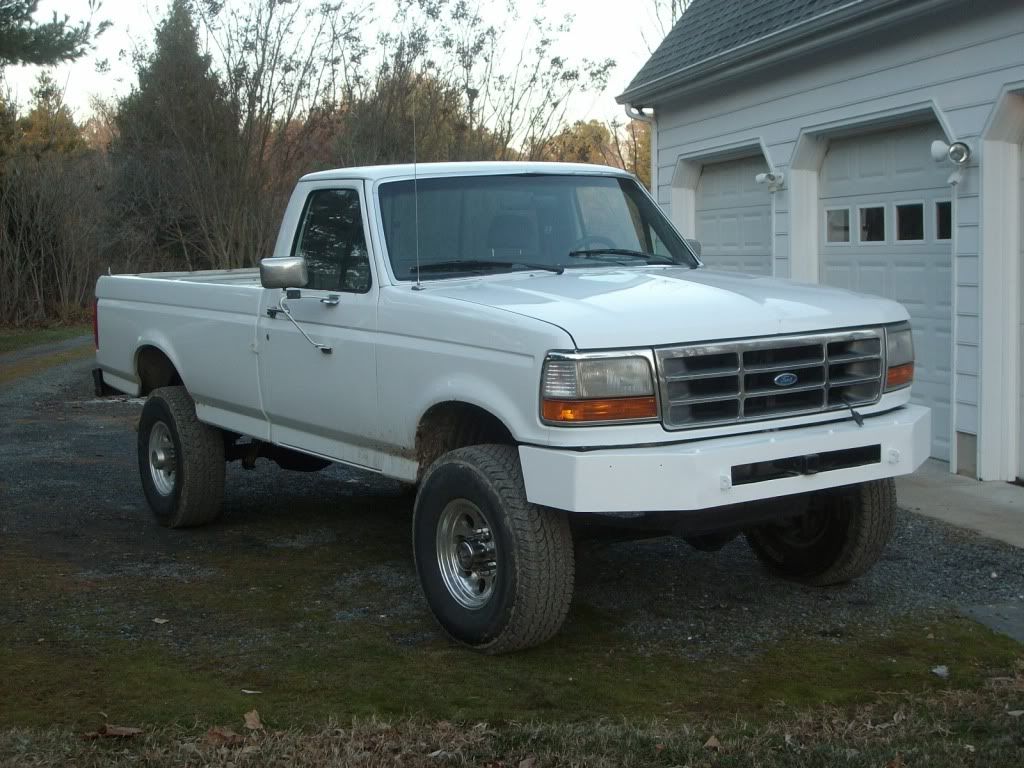

However it did make easier to attach the tow points. After it was all said and done I painted it white to match truck.


The front hitch works, had to test it


If I were to do it again I would use 10"channel and slightly lower the hitch. I would also hide the tow points underneath the bumper or use hooks attached underneath for a cleaner look. All in all I think I have about $350 in supplies and 50hrs into this.

94.5 F250 Reg Cab 4x4 5 speed 4.10 276000 plus miles

97 F350 Crew Cab LB 4x4 5 speed 3.55 320000 plus miles (parts truck)



Quote:
Originally Posted by alberta 7.3 View Post
YouTube: Providing idiots everywhere a podium to share their stupidity
terryknight is offline
post #2 of 14 Old 09-27-2011, 01:25 PM
Compression Ignition Addict

Raul@Stealth Automotive's Avatar

Join Date: Oct 2006
Location: Ventura County, CA
Posts: 20,359
Thanks: 23
Thanked 30 Times in 17 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 2 reviews
Send a message via AIM to Raul@Stealth Automotive
Raul@Stealth Automotive is offline
post #3 of 14 Old 09-27-2011, 01:48 PM
Member

evo45's Avatar

Join Date: Sep 2010
Location: St Lucie, FL
Posts: 43
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Looks good dude.
evo45 is offline
post #4 of 14 Old 09-27-2011, 01:53 PM
My 6OH Hates Me



mudrunninpig's Avatar

Join Date: Sep 2007
Location: Nexus of the Universe
Posts: 24,838
Thanks: 8
Thanked 27 Times in 26 Posts
Mentioned: 0 Post(s)
Quoted: 18 Post(s)
Feedback Score: 1 reviews
looks great

Mike




"The Iron Pig"



mudrunninpig is offline
post #5 of 14 Old 09-27-2011, 01:54 PM
Member

bfever74's Avatar

Join Date: Mar 2011
Location: Dallas/Ft Worth
Posts: 83
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
It doesn't look homemade, great job!!

1996 F250 PSD 4x4
X-Cab XLT 4.10's
DIY 6637 - MBRP DP - 240k

2008 F250 PSD 2wd
X-cab XLT
Bone Stock 225k
bfever74 is offline
post #6 of 14 Old 10-02-2011, 02:51 PM
Viking Heavy Diesel


Ryan Rønning's Avatar

Join Date: Nov 2007
Location: Wasilla, AK
Posts: 20,735
Thanks: 10
Thanked 10 Times in 10 Posts
Mentioned: 0 Post(s)
Quoted: 6 Post(s)
Feedback Score: 1 reviews
That came out great.

Project Frankenstein


1997 Ford F-350, Dually conversion, Cobra 29 LX CB, 12000 watt converter, All LED lights, TW tunes, 4" DP, Napa Intake, coolant filter, 140cc Injectors and lots of running lights.

Quote:
Originally Posted by XPLOSIV View Post
Thanks. I'll give er a good wackin in the morning.
Ryan Rønning is offline
post #7 of 14 Old 10-02-2011, 03:42 PM
Compression Ignition Addict

Buffalo444's Avatar

Join Date: Jun 2010
Location: Carlyle, IL
Posts: 2,166
Thanks: 0
Thanked 1 Time in 1 Post
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
terry what's the overall length of the C-channel you used?

Jason

First rig: e99 F250 CCSB 4x4 auto, white, 388k miles: traded in
Then: 02 F350 RCLB SRW 4x4 zf6, silver, 201k miles, THREW A ROD : traded to Jake
Now: 96 F350 CCLB DRW 4x2 auto, red and silver/grey, 266k miles: rusty but trusty
Buffalo444 is offline
post #8 of 14 Old 10-02-2011, 03:48 PM Thread Starter
the baconator


terryknight's Avatar

Join Date: May 2009
Location: Easton MD 21601
Posts: 12,681
Thanks: 10
Thanked 126 Times in 120 Posts
Mentioned: 6 Post(s)
Quoted: 119 Post(s)
Feedback Score: 2 reviews
thanks for the compliments. I believe it was 96 or 98 inches

94.5 F250 Reg Cab 4x4 5 speed 4.10 276000 plus miles

97 F350 Crew Cab LB 4x4 5 speed 3.55 320000 plus miles (parts truck)



Quote:
Originally Posted by alberta 7.3 View Post
YouTube: Providing idiots everywhere a podium to share their stupidity
terryknight is offline
post #9 of 14 Old 10-02-2011, 03:59 PM
Compression Ignition Addict

belz's Avatar

Join Date: Jul 2008
Location: Wake Forest, NC
Posts: 4,804
Thanks: 69
Thanked 53 Times in 50 Posts
Mentioned: 1 Post(s)
Quoted: 66 Post(s)
Feedback Score: 0 reviews
Looks good and very solid!

Belz
CPA Director

belz is offline
post #10 of 14 Old 10-02-2011, 04:08 PM
Compression Ignition Addict

Buffalo444's Avatar

Join Date: Jun 2010
Location: Carlyle, IL
Posts: 2,166
Thanks: 0
Thanked 1 Time in 1 Post
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Quote:
Originally Posted by terryknight View Post
thanks for the compliments. I believe it was 96 or 98 inches
cool. How much does it weigh altogether?

Jason

First rig: e99 F250 CCSB 4x4 auto, white, 388k miles: traded in
Then: 02 F350 RCLB SRW 4x4 zf6, silver, 201k miles, THREW A ROD : traded to Jake
Now: 96 F350 CCLB DRW 4x2 auto, red and silver/grey, 266k miles: rusty but trusty
Buffalo444 is offline
