CF Upgrades

I installed the "booster" to my WVO Designs CF. It helps put the dirty oil down at the bottom of the bowl where it gets introduced to the column of spinning oil more gently. This helps prevent spashing/mixing of the dirty oil into the clean oil and prevents floaters in the dirty oil from bouncing off the clean oil and ending up in the clean oil stream. Before this, I had the dirty line down on the bottom of the CF, but this does a much better job.

So far, I've spun about 150 gallons through it and it gets a lot more stuff out of the oil this way and the stream of clean oil coming from the CF is visually clearer than without it. I'm very happy with it and it was definitely worth the $100 to me to install it.

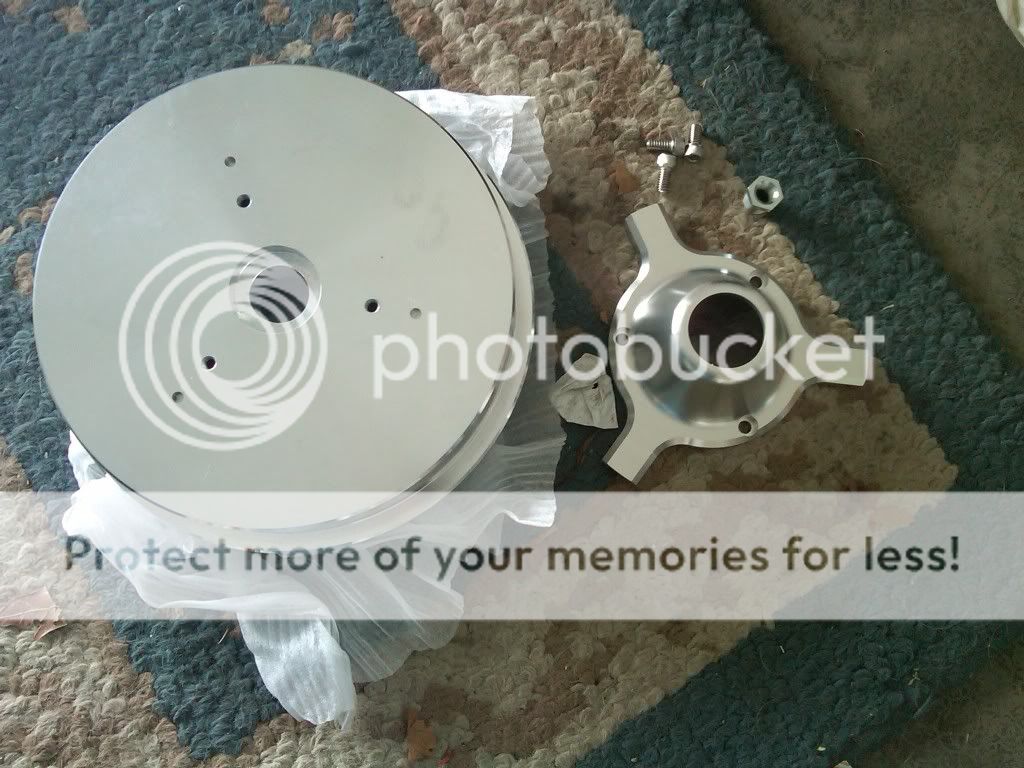

Parts...


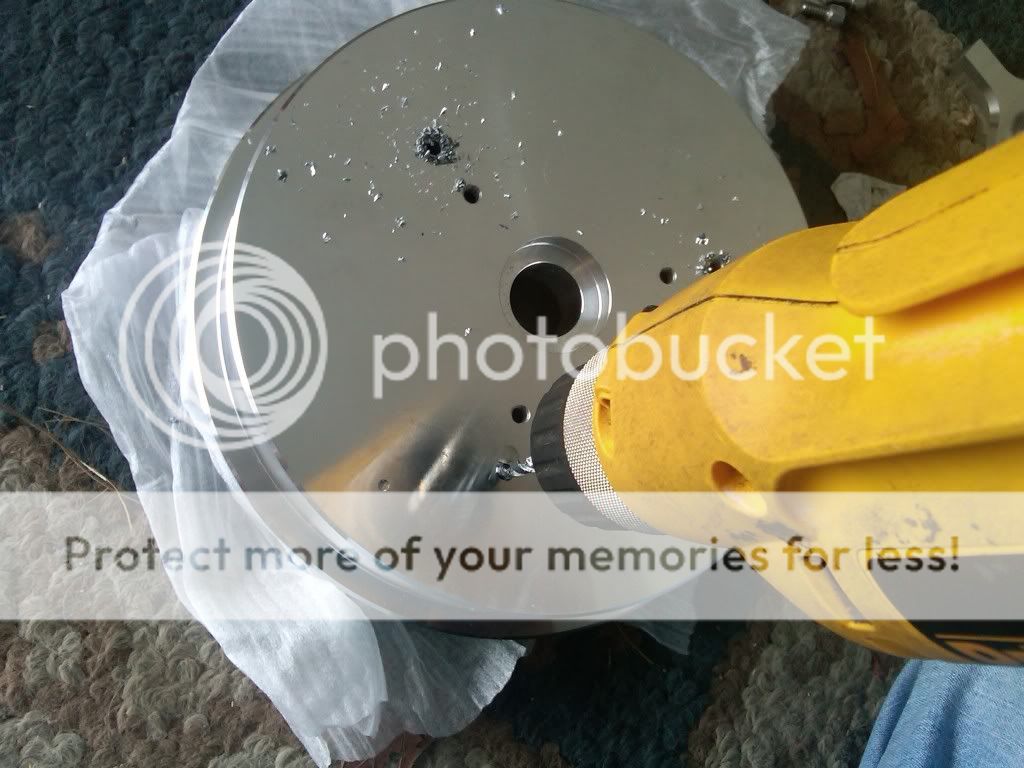

Drilling bottom of bowl for new drain holes...


Installed on the bowl...

'02 7.3L Excursion Limited; ~225Kmi total; ~140Kmi on WVO
Vegistroke V3 (4/09); HIH, Aux Pump, FPHE (11/10); PHP Gryphon custom; 6637;
WW; Turbomaster; EBPV delete; 4" exhaust; Terminator HPOP; Tru-cool; Evans NPG+;
ARI triple-disc TC; V/B-code springs; Bilsteins; 30mm sway bar; 190A alternator; F650 dash, etc.
muns53 is offline
post #2 of 6 Old 04-17-2011, 08:36 AM Thread Starter
Compression Ignition Addict

muns53's Avatar

Join Date: Oct 2008
Location: Hudson Valley, NY region
Posts: 239
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Send a message via AIM to muns53
Installed on the CF...


Rerouting the vent tubes and drip port...


Bottom of the lid...


I have the nipple so the tip goes just inside the booster. So now the oil goes right down into the middle of the bowl and feeds the dirty oil directly to the bottom/side of the bowl through the booster. This is a much less violent way to introduce the oil to the bowl.

'02 7.3L Excursion Limited; ~225Kmi total; ~140Kmi on WVO
Vegistroke V3 (4/09); HIH, Aux Pump, FPHE (11/10); PHP Gryphon custom; 6637;
WW; Turbomaster; EBPV delete; 4" exhaust; Terminator HPOP; Tru-cool; Evans NPG+;
ARI triple-disc TC; V/B-code springs; Bilsteins; 30mm sway bar; 190A alternator; F650 dash, etc.
muns53 is offline
post #3 of 6 Old 04-17-2011, 01:28 PM
Compression Ignition Addict

Join Date: Jan 2010
Posts: 216
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Nice. I have an absolute centrifuge. I run the post cf'd oil through a 1 micron filter sock to my clean barrel. I have to change the filter sock every 300 gallons or so. I believe the the buildup on the filter sock is from the bits that fly out of the cf bowl upon entry. I added a longer feed pipe that leaves only about a 1/16th to 1/4 inch of drop before the oil hits the bowl. This helped, but I think that booster will be alot more effective. Was that purchased from WVO designs?
davidschaffer is offline
post #4 of 6 Old 04-17-2011, 02:54 PM Thread Starter
Compression Ignition Addict

muns53's Avatar

Join Date: Oct 2008
Location: Hudson Valley, NY region
Posts: 239
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Send a message via AIM to muns53
Quote:
Originally Posted by davidschaffer View Post
Nice. I have an absolute centrifuge. I run the post cf'd oil through a 1 micron filter sock to my clean barrel. I have to change the filter sock every 300 gallons or so. I believe the the buildup on the filter sock is from the bits that fly out of the cf bowl upon entry. I added a longer feed pipe that leaves only about a 1/16th to 1/4 inch of drop before the oil hits the bowl. This helped, but I think that booster will be alot more effective. Was that purchased from WVO designs?
Yup, I got it from WVO Designs. You could check with them to see if it will retrofit your bowl or ask at Absolute to see if they have plans to add a similar feed cone to their bowl.

'02 7.3L Excursion Limited; ~225Kmi total; ~140Kmi on WVO
Vegistroke V3 (4/09); HIH, Aux Pump, FPHE (11/10); PHP Gryphon custom; 6637;
WW; Turbomaster; EBPV delete; 4" exhaust; Terminator HPOP; Tru-cool; Evans NPG+;
ARI triple-disc TC; V/B-code springs; Bilsteins; 30mm sway bar; 190A alternator; F650 dash, etc.
muns53 is offline
post #5 of 6 Old 04-17-2011, 05:49 PM
Compression Ignition Addict

Aaron Berk's Avatar

Join Date: Jul 2009
Location: Wilmington Island, GA
Posts: 739
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Nice upgrade Muns

It looks like the feed troughs on that booster are adequately sized.

I'm fighting the splashing issue with my simple CF. I don't have it tamed yet, but I guess I might have to rethink all the feed cone data.

97 F250 ext cab lwb 4x2
AirDog2 and FASS HD (it's a WVO RR setup)
Simple Centrifuge filtering method
203 degree Mod, DIY homegrown intake, CCV mod, battery relocation,
215amp Ambulance Alt.
EBPV gut, Pedestal gut & cut
Diamond Eye 4" (3" dp) turbo back straight pipe no kitty, no muffler


http://wasteveggieoilexplorations.shutterfly.com
Aaron Berk is offline
post #6 of 6 Old 04-17-2011, 06:14 PM
Compression Ignition Addict

Join Date: Jan 2010
Posts: 216
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
I've had some thoughts on splash reduction. Currently I have a hole drilled in the center of my cf lid letting out steam when needed. What about putting a heavy plastic plate ( with holes for steam ) that hovers just above the top of the bowl ( using center vent hole to mount ). It would work best if it had a lip on it that coned down just inside the lip of the bowl. That way, all splash would hit the lid and go back into the bowl to be properly pulled to the walls of the bowl, leaving just enough space for the clean oil to exit.
