DIY regulated return build!

As promised here's a write up for the RR I built. I didn't go with the stainless steel braided crimped lines due to lack of money..

Parts needed:
1- 3/8" barb tee
1- 1/4" barb tee
2- 1/8" mpt - 1/4" barb
1- 1/8" mpt - 3/8" barb
1- 1/8" fpt - 1/4" barb
2- 1/4" fpt - 3/8" barb
1- 1/4" mpt - 3/8" compression
approximately 5 ft of 3/8" ID and 1/4" ID diesel rated fuel line
Plenty of stainless steel hose clamps

Fuel bowl delete parts:
All from NAPA
2- filter base part #4770
1- water/fuel separater (sp? Lol) part #3405
1- fuel filter part #3528

Regulator:
0-150 psi adjustable fuel pressure regulator
Fuel lab makes a great regulator, but others can be found..
As far as the gauge, I strongly recommend a liquid filled, or an electric in-cab fuel pressure gauge. Ask me how I know..

I utilized the stock return and feed line also one stock hard line due to the fact of it being a PITA to reach the back of the head next to turbo and down pipe.

Removing the fuel bowl is fairly easy, first hook up a piece of 3/8" hose to the drain line.. easiest way to get to it is through the passenger side wheel well. Open the yellow valve on the back of the fuel and let it drain. Then disconnect all the fuel lines, and drain line. There's 2 bolts on the front of the oil reservoir that hold the fuel bowl on..


My work area



You can see what all I had to remove to get to the fuel bowl and fuel lines. You don't have to take out the hpop but I had to to do some work on it too.. You'll remove the line that runs from the passenger side of the fuel into the driver side head..



There's 2 plugs that need to removed, 1 is on the front passenger head, the other is at the back of the driver side head..



I forgot to take a pic before I put the hose on to check for clearance. I used the 1/8" mpt - 1/4" barb here.



Same with the driver side head. These were used for my return..



I used the 1/8" mpt - 3/8" barb fitting for the back driver side head. This will be used for a feed. Just a fore-warning, this is a PITA to reach.. I'm 6' with long arms, and still had trouble reaching.. but then again you see the height of the truck i'm working with. lol.



Happened to have some fire-retardant, high heat resistant material to wrap my fuel line since it ended up running behind the turbo pedestal. I would recommend using a 1/8" brass 45* or street 90 to reroute the line if you don't have a shield like this..



Since I was tying back into the stock lines, I reused the compression fitting coming off the fuel bowl.. DO NOT reuse the rubber seal on the line, they'll disintegrate the moment undone.. You can order a new set from here --> Replacement O-rings for Ford Diesel Engines



you'll use one 1/4" fpt - 1/4" on the 3/8" compression fitting.. this will go into your factory return line.





This is the factory feed line i was talking about reusing that runs to the back passenger side head. It's next to impossible to get to without taking off the downpipe..

I forgot to take a pic of the lines running into the tee.. I ran my feed to the back heads to a 3/8" barb tee towards the front, and tied my factory line into it..




This is the regulator i used. Take it from my experience. GET A LIQUID FILLED OR IN-CAB GAUGE! I blew the gauge out within an hour of gettin' her running...

Once again forgot to take a pic, but I ran my return line from the front of the heads into a 1/4" barb tee.. from the tee into my regulator, then from the regulator into the factory return line.. If you pick up a regulator with 2 inlets and one outlet, you'll eliminate the barb tee..

Now since I did the fuel bowl delete, I had to add in new filters.. I've heard nothing but good things about the NAPA filters, so thats what I went with.



All your plumbing and mounting is going to depend on how drastic you want to get with the setup. I did a little rerouting and mounted my filters on the outside of the frame, almost right underneath the rocker panel.. You can't see them from outside the truck unless you're down looking for them, and they don't hang down any lower than some of the other parts on your truck..

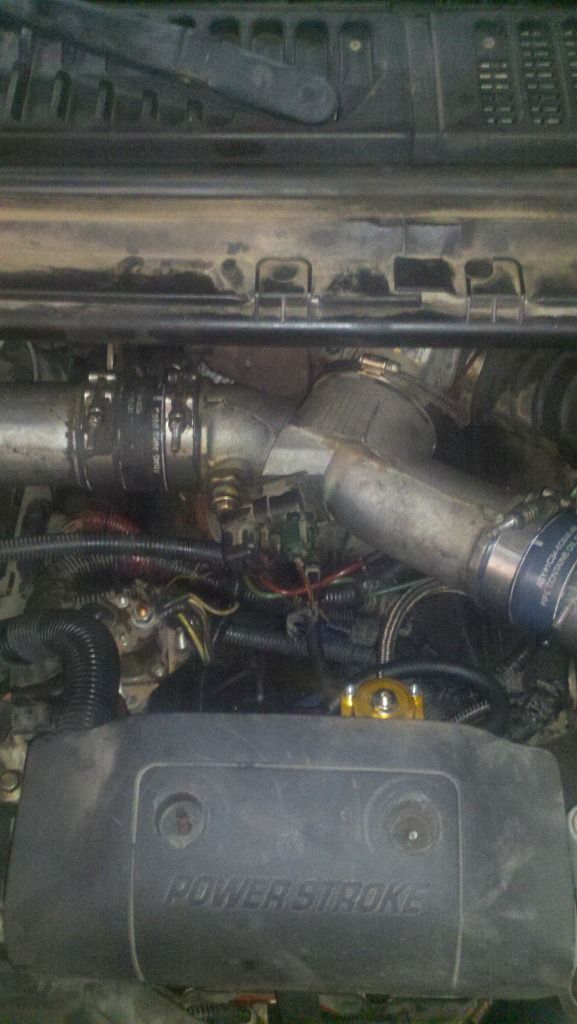

My finished setup before adding the plastic powerstroke cover.


And after!

I got the pressure set at 65 psi and it smoothed out the idle, and quieted down the cackle a lot! It also evened out everything throughout the entire rpm range.. set the pressure a little higher, you'll roll a bit of coal but thats really about the only difference..

Any questions, just ask! I'm also open to any suggestions on making this easier..

Cody Ryan
03 f250 ccsb fx4 7.3
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

4" RC lift
35x12.50 federals on 20x12 rockstars
6637 intake, straight pipe
full RR w/ fuel bowl delete.
rebuild coming soon
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
