DIY fuel system filtration

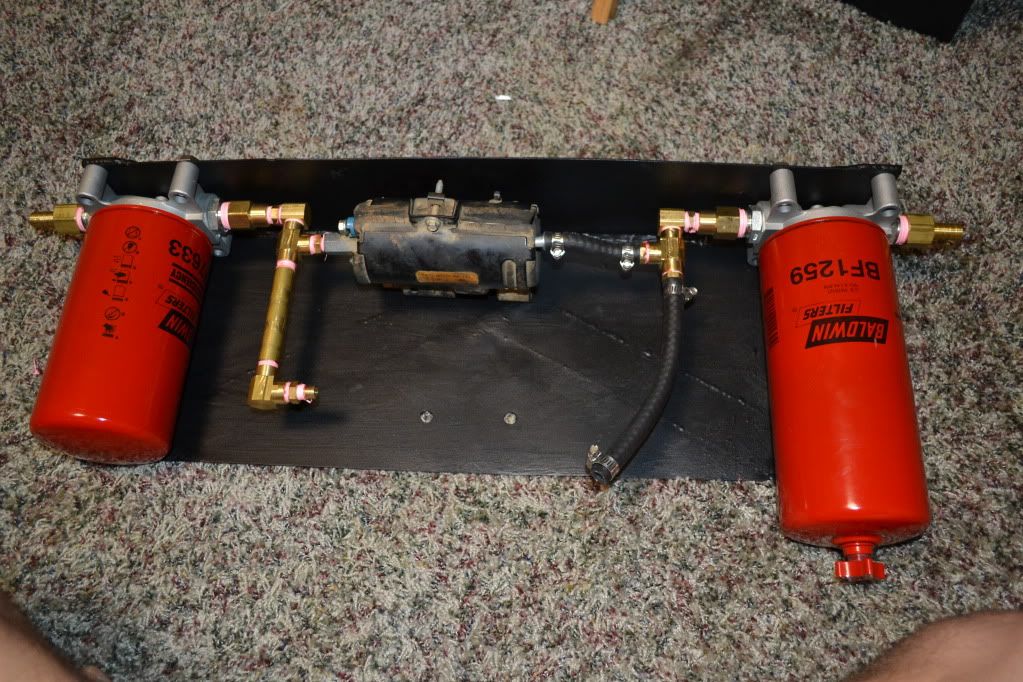

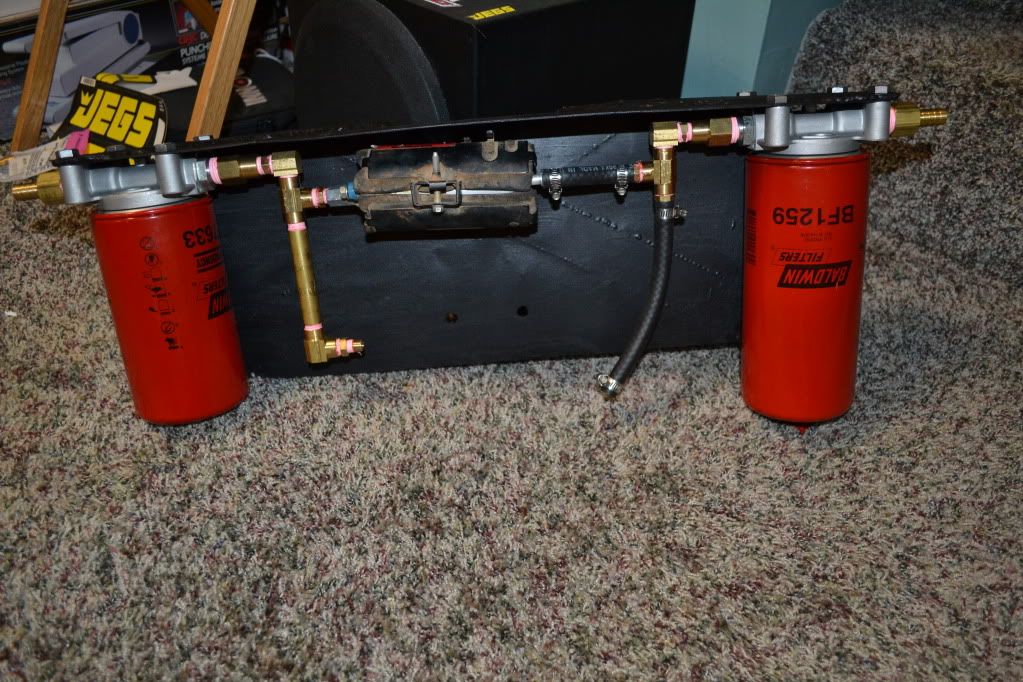

Hey I am building my fuel system and i just ordered my strictly diesel fuel bowl delete and regulated return and just finished my pump and filtration system and i think it came out pretty cool what do you think?




2002 F-250 7.3l 190K
str8 piped exhaust
T4 mount s366 turbo
6637 W/ zoodad
TW custom tunes
18" rockstars with nitto terra grapplers
Pioneer avic-f700bt
Piller mount gauges autometer pyro/boost/tranny
F650 dash w/ fuel pressure and air pressure
Fisher 7.6 HD plow
BTS Transmission
And lights everywhere
kyleh20 is offline
post #2 of 21 Old 10-17-2011, 02:29 PM
Compression Ignition Addict

Join Date: Oct 2006
Location: Walpole, MA
Posts: 1,554
Thanks: 1
Thanked 22 Times in 21 Posts
Mentioned: 1 Post(s)
Quoted: 17 Post(s)
Feedback Score: 0 reviews
Send a message via AIM to rufushusky
Nice man!

I am debating doing this to my 7.3 in the spring...I did something similar to my dodge just one dumb question. Why the T's pre and post pump? Fuel return?

2002 F-350 4X4 ECLB 7.3 4R100 6637 filter w/ RiffRaff cover, 08 diff cover, 203* T-stat, HPX, Stancor Relay, 6.0 trans cooler, Zone leveling kit, 8'6" Western Ultramount
Sold: 04.5 Dodge Ram 2500 5.9 CTD, Reg Cab, 48re
rufushusky is offline
post #3 of 21 Old 10-17-2011, 03:13 PM
Compression Ignition Addict

jesilvas's Avatar

Join Date: Feb 2009
Location: Nacogdoches, TX
Posts: 11,148
Thanks: 0
Thanked 27 Times in 25 Posts
Mentioned: 0 Post(s)
Quoted: 1 Post(s)
Feedback Score: 0 reviews
Dual pumps I bet.
I'm going to do this. Actually have a lot of stuff already but I'm going to use filter heads that have dual in and outs. I was going to get some check valves in case one pump goes out, then the other pump won't try to go backwards in the system.



2000 F-350 Lariat Super Duty, Dually, CCLB, 7.3L
4R100, 2wd
330,000 + miles
jesilvas is offline
post #4 of 21 Old 10-17-2011, 04:52 PM Thread Starter
Powerstroke.org Fanatic

Join Date: Mar 2009
Posts: 121
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Send a message via AIM to kyleh20
don't the stock pumps have one way check valves in them and they can't flow backwards anyways. but yes the other tee is for another stock pump for now eventually i will replace both pumps for one big pump when i can afford it haha but this was cheap for now

2002 F-250 7.3l 190K
str8 piped exhaust
T4 mount s366 turbo
6637 W/ zoodad
TW custom tunes
18" rockstars with nitto terra grapplers
Pioneer avic-f700bt
Piller mount gauges autometer pyro/boost/tranny
F650 dash w/ fuel pressure and air pressure
Fisher 7.6 HD plow
BTS Transmission
And lights everywhere
kyleh20 is offline
post #5 of 21 Old 10-17-2011, 04:55 PM
Compression Ignition Addict

Join Date: Oct 2006
Location: Walpole, MA
Posts: 1,554
Thanks: 1
Thanked 22 Times in 21 Posts
Mentioned: 1 Post(s)
Quoted: 17 Post(s)
Feedback Score: 0 reviews
Send a message via AIM to rufushusky
Cool thanks fellas! Thanks again for posting this up!

2002 F-350 4X4 ECLB 7.3 4R100 6637 filter w/ RiffRaff cover, 08 diff cover, 203* T-stat, HPX, Stancor Relay, 6.0 trans cooler, Zone leveling kit, 8'6" Western Ultramount
Sold: 04.5 Dodge Ram 2500 5.9 CTD, Reg Cab, 48re
rufushusky is offline
post #6 of 21 Old 10-17-2011, 06:08 PM
Compression Ignition Addict

jesilvas's Avatar

Join Date: Feb 2009
Location: Nacogdoches, TX
Posts: 11,148
Thanks: 0
Thanked 27 Times in 25 Posts
Mentioned: 0 Post(s)
Quoted: 1 Post(s)
Feedback Score: 0 reviews
Heck idk. Maybe they do. Try forcing air or something backwards through one. Cause my other stock one isn't here.
Heck, after seeing yours, I just might change my idea.



2000 F-350 Lariat Super Duty, Dually, CCLB, 7.3L
4R100, 2wd
330,000 + miles
jesilvas is offline
post #7 of 21 Old 10-17-2011, 06:31 PM Thread Starter
Powerstroke.org Fanatic

Join Date: Mar 2009
Posts: 121
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Send a message via AIM to kyleh20
ya thats what i did but i couldn't thats why i didn't worry about it haha also when one of them goes i will just get one bigger pump. but ya i haven't installed it on the truck yet but it seems like everything is going to work out well

2002 F-250 7.3l 190K
str8 piped exhaust
T4 mount s366 turbo
6637 W/ zoodad
TW custom tunes
18" rockstars with nitto terra grapplers
Pioneer avic-f700bt
Piller mount gauges autometer pyro/boost/tranny
F650 dash w/ fuel pressure and air pressure
Fisher 7.6 HD plow
BTS Transmission
And lights everywhere
kyleh20 is offline
post #8 of 21 Old 10-17-2011, 06:47 PM
Compression Ignition Addict

jesilvas's Avatar

Join Date: Feb 2009
Location: Nacogdoches, TX
Posts: 11,148
Thanks: 0
Thanked 27 Times in 25 Posts
Mentioned: 0 Post(s)
Quoted: 1 Post(s)
Feedback Score: 0 reviews
Mine is going to be all mounted straight inside the frame. Filters and mounts, pumps, just straight to it. I like the whole 'mount it all to a plate then plate to frame' Idea.



2000 F-350 Lariat Super Duty, Dually, CCLB, 7.3L
4R100, 2wd
330,000 + miles
jesilvas is offline
post #9 of 21 Old 10-18-2011, 05:48 AM
Compression Ignition Addict

Join Date: Dec 2007
Posts: 6,231
Thanks: 7
Thanked 237 Times in 228 Posts
Mentioned: 6 Post(s)
Quoted: 83 Post(s)
Feedback Score: 3 reviews

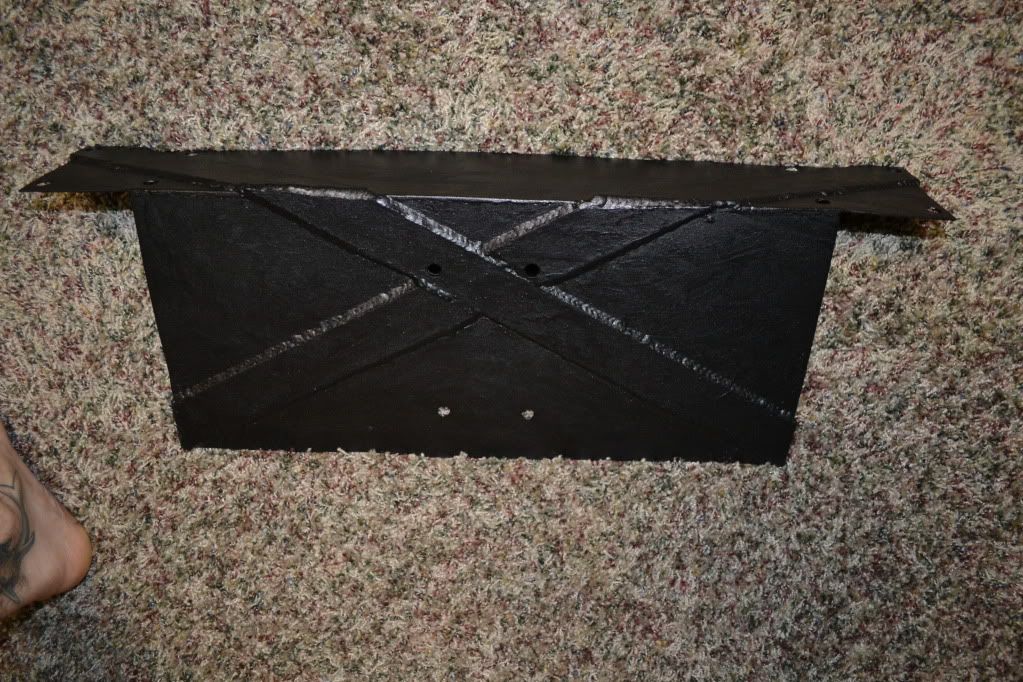

OK, TOTALLY off topic,,,, but Dude -> WTF is That? in the Lower/LeftHand portion on the bottom pic???

Is that a tattooed human foot? Ankle? Elbow?? I can't make sense of it!
NoRalPh is offline
post #10 of 21 Old 10-19-2011, 06:28 AM Thread Starter
Powerstroke.org Fanatic

Join Date: Mar 2009
Posts: 121
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Send a message via AIM to kyleh20
haha ya it is my foot with a shark tattoo on it haha thats it

but ya i wanted to do the whole mount because i can build the whole system except the last pump and get it all plumbed and then less down time for when i go to install it
