05+ Axle swap! Complete

So over the last couple weeks at night i performed the axle swap. wasnt bad to do actually. a little annoying once and awhile but i got her done. and it moved. pics!

This is a 2003 7.3L supercab lariat 4x4 truck the swap was done on.

What you need:

Front differential from 05-07, i dont know about 08 axles up. im sure your good till 2010, 2011 up have bunch more goodies. stick with 05-07 i know they work.
Your factory abs sensors, or buy new ones like i did as one broke when i took it out. you cannot use the 05+ up ones, different design and yes they plug in but dont read.
Re-use your old vacuum lines
Coil Springs: choose your ride, 250-350-450. I used 07 F350 springs.
Coil spring Rubber insulators

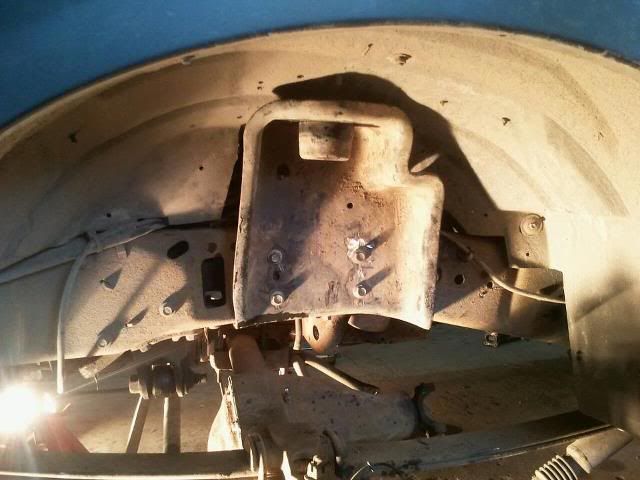

Coil Spring Buckets from 05-07
Front brake lines from the 05 -07 from axle to coil buckets.
Front Shocks and hardware- i used rancho's life time warranty. and they come factory and have a nice ride.
Front sway bar, brackets and Sway bar end links.
05-07 Track bar and 05-07 Track bar bracket.
05 steering box and power steering lines and pitman arm. OR you modify the current 7.3L pitman arm. which i did, bought a reamer the same taper as the ball joint and reamed it out, hasnt failed yet 3000km
30-40" Pre made brake lines with fittings, Napa auto parts had mine with shielding, i bent them to form around the new coil buckets.

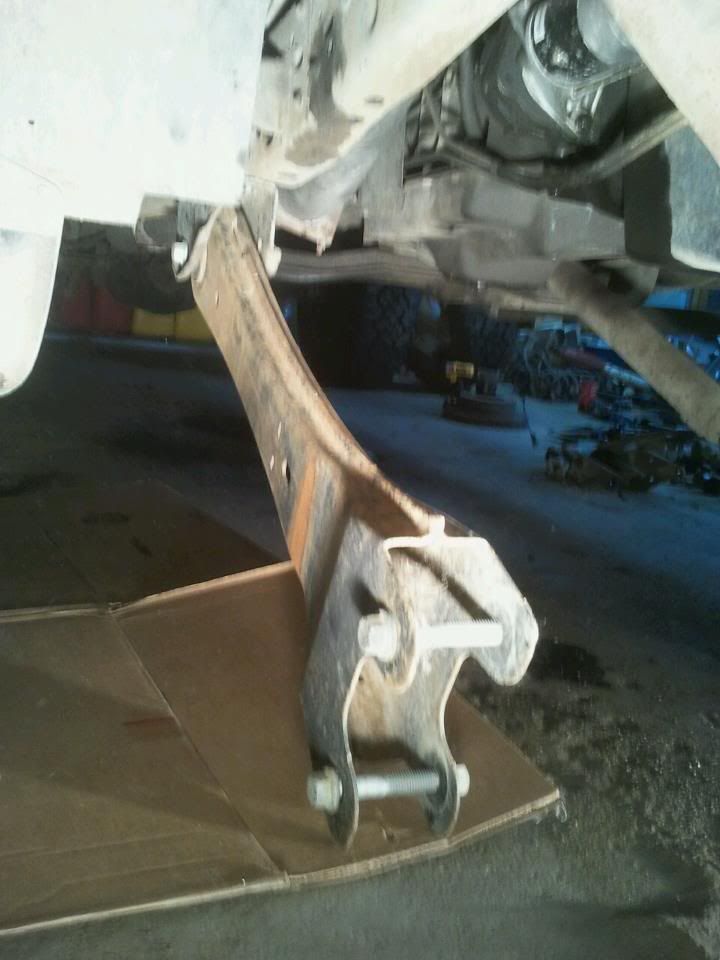

Radius Arms and Radius arm brackets. and hardware.
1/8", 3/8" and 1/2" good drill bits. You have about 15 holes to drill.
A wack load of 1/2 grade 8 bolts, washers and nuts, along with red locktite. I used 1/2" by 2" long bolts, on the drivers side radius arm bracket youll need shorter ones, fuel pumps in the way.
4-17" or up 05+ wheels, older 16" wheels will not fit over the brakes!!! youll also need one for a spare under the back!
The drive shaft doesnt need to be changed.

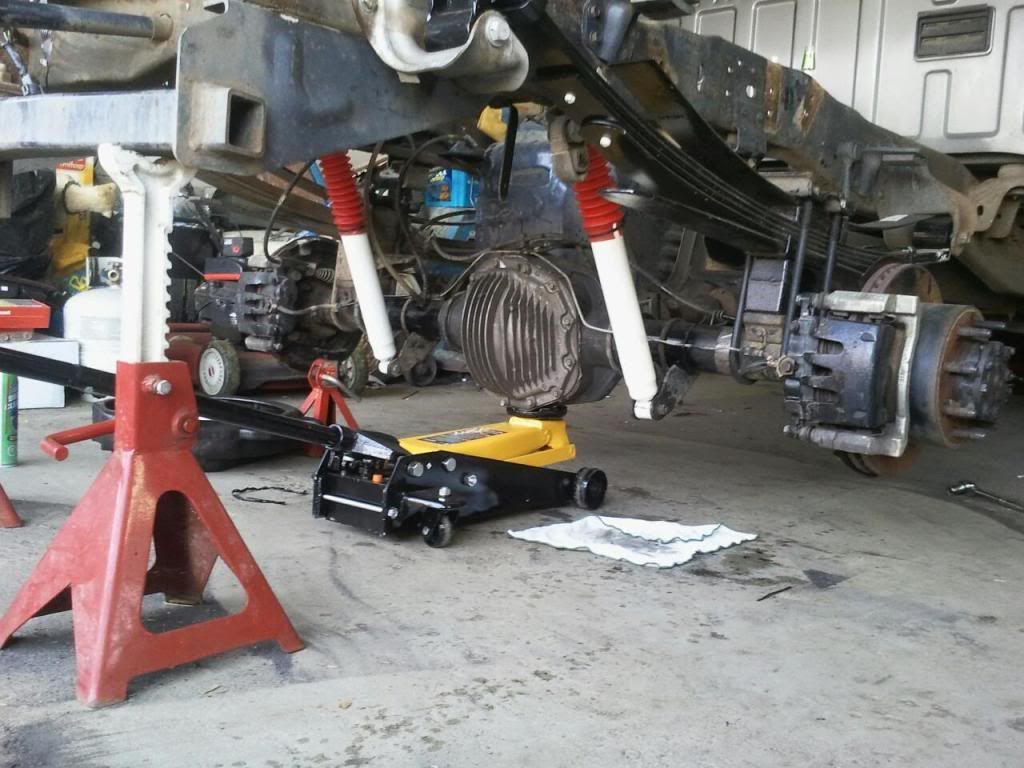

I also suggest upgrading the Rear Diff at the same time to correct the new width youll have. its about 3", best part, you can run factory new rims and not rub! I used a 2010 Rear diff with 3.73 i modded to fit!

NOTE!! your factory 16" SPARE will no longer fit! youll need a 17" steelie off a new truck. The brakes are way bigger

Also 50% of the holes are already there. you will need to drill quite a few.

JUST REMEMBER, IN THE END ITS WORTH IT!!!







05+ coils, 10 Rear diff, box, tailgate, lights, bumper, Full 07 front harley swap...the list is endless.

AS IM RARLEY on here anymore...have a question ?? EMAIL ME dakinbryce@hotmail.com..ill gladly answer any of your questions. OR search me on facebook. ill help out anyway I can !

updated as of OCT 28/2013

Last edited by 03_Turbo7.3; 06-12-2012 at 02:49 PM.
03_Turbo7.3 is offline
post #2 of 96 Old 03-25-2012, 08:15 AM
Delivers Pizzas For Fun!

ol_Blue97's Avatar

Join Date: Apr 2010
Location: cecil county MD
Posts: 6,024
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 1
Thanked 18 Times in 16 Posts
Feedback Score: 0 reviews
welcome to the club.... altho yours was alot easier, are you gonna use wheel spacers in the rear or are you gonna swap the 05 rear end in also

FRANK THE TANK
DIY INTAKE - HYDRA CHIP - MARTY'S E-FUEL - 250/200s
05 AXLE SWAP 3.73 - 2.5" PURE PERF. LIFT COILS - FOX SHOCKS
BTS TRANS - TYMAR DOWN PIPE - 4" EXHAUST
Waiting To Be Installed... gtx4294r, studs, springs, HPOP?
Quote:
Originally Posted by STROKED_NY_023 View Post
You are so smart Frank, I dont care what Terry says.
ol_Blue97 is offline
post #3 of 96 Old 03-25-2012, 08:21 AM Thread Starter
Compression Ignition Addict

03_Turbo7.3's Avatar

Join Date: Jan 2008
Location: Edmonton Alberta, Canada
Posts: 1,867
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 0
Thanked 1 Time in 1 Post
Feedback Score: 0 reviews
Send a message via MSN to 03_Turbo7.3
Well i did this before. 2010 w/ 3.73 modded to fit!


05+ coils, 10 Rear diff, box, tailgate, lights, bumper, Full 07 front harley swap...the list is endless.

AS IM RARLEY on here anymore...have a question ?? EMAIL ME dakinbryce@hotmail.com..ill gladly answer any of your questions. OR search me on facebook. ill help out anyway I can !

updated as of OCT 28/2013
03_Turbo7.3 is offline
post #4 of 96 Old 03-25-2012, 08:45 AM
Compression Ignition Addict

Join Date: Oct 2009
Location: hudson, fl
Posts: 3,172
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Thanks: 10
Thanked 17 Times in 14 Posts
Feedback Score: 1 reviews
Looks great! Wish you had done a write up on both! Always find write ups for obs swaps but nothing for the 99+


2000 DRW CC 7.3
Exterior: 08 Exterior Clone, 22.5's
Engine Mods: GTP38R WW2, 5 inch exhaust,T500, 6637, TW tunes,DI Up pipes, 6.7 fuel pump fuel system.
Trans Mods: 6.0 trans cooler, JW Valve body,Billet triple disc converter.
Sound Mods: 7" flip out tv, 3-way speakers all around, 12" sub, 500 watt amp.
Misc:dieselsite coolant filter, max ac assist, BRV, IHD,gauges, CCV

Next up power rear window
campbellflage is offline
post #5 of 96 Old 03-25-2012, 09:01 AM Thread Starter
Compression Ignition Addict

03_Turbo7.3's Avatar

Join Date: Jan 2008
Location: Edmonton Alberta, Canada
Posts: 1,867
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 0
Thanked 1 Time in 1 Post
Feedback Score: 0 reviews
Send a message via MSN to 03_Turbo7.3
lol...fine......i guess i can...... when i get a free minute i will.

05+ coils, 10 Rear diff, box, tailgate, lights, bumper, Full 07 front harley swap...the list is endless.

AS IM RARLEY on here anymore...have a question ?? EMAIL ME dakinbryce@hotmail.com..ill gladly answer any of your questions. OR search me on facebook. ill help out anyway I can !

updated as of OCT 28/2013
03_Turbo7.3 is offline
post #6 of 96 Old 05-21-2012, 06:22 PM
Mob boss


Jarrod B's Avatar

Join Date: Jul 2008
Location: Austin Texas
Posts: 26,935
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Thanks: 25
Thanked 27 Times in 25 Posts
Feedback Score: 1 reviews
ok what is the truck that this swap is being done on?

2006 Ford F250 CCSB FX4 6.0




Sold
1997 F350 CCLB 2WD 7.3
1999 F350 CCLB 4WD 7.3
2003 F350 CCLB FX4 6.0
Jarrod B is offline
post #7 of 96 Old 05-21-2012, 07:13 PM Thread Starter
Compression Ignition Addict

03_Turbo7.3's Avatar

Join Date: Jan 2008
Location: Edmonton Alberta, Canada
Posts: 1,867
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 0
Thanked 1 Time in 1 Post
Feedback Score: 0 reviews
Send a message via MSN to 03_Turbo7.3
2003 7.3L Lariat supercab 4x4.

It does not look like this anymore, well kinda, has full harley grille, light bar, 4 pro-comp 9" lights, full coil swap, 2010 box, tailgate,lights etc, recon 3rd brake light and mirror lights, 2010 Rear diff swap, 2007 Front diff swap with coils. updated pic to come one day.

05+ coils, 10 Rear diff, box, tailgate, lights, bumper, Full 07 front harley swap...the list is endless.

AS IM RARLEY on here anymore...have a question ?? EMAIL ME dakinbryce@hotmail.com..ill gladly answer any of your questions. OR search me on facebook. ill help out anyway I can !

updated as of OCT 28/2013
03_Turbo7.3 is offline
post #8 of 96 Old 05-21-2012, 07:17 PM
Mob boss


Jarrod B's Avatar

Join Date: Jul 2008
Location: Austin Texas
Posts: 26,935
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Thanks: 25
Thanked 27 Times in 25 Posts
Feedback Score: 1 reviews
Ok I have an 03 as well but a 6.0. What I want to know is what's required to swap an 05 axles to my 03. Both are 4x4 trucks.


Nice truck look too!

iPhone

2006 Ford F250 CCSB FX4 6.0




Sold
1997 F350 CCLB 2WD 7.3
1999 F350 CCLB 4WD 7.3
2003 F350 CCLB FX4 6.0
Jarrod B is offline
post #9 of 96 Old 05-21-2012, 07:27 PM Thread Starter
Compression Ignition Addict

03_Turbo7.3's Avatar

Join Date: Jan 2008
Location: Edmonton Alberta, Canada
Posts: 1,867
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 0
Thanked 1 Time in 1 Post
Feedback Score: 0 reviews
Send a message via MSN to 03_Turbo7.3
Thanks!

You need everything lol.

05-07 axles, replace the rear also, wider stance, bigger brakes, 17" spare tire. brake lines to spring perch, then buy 30-40" pre-made brake lines and bend to make fit with old lines, springs,shocks, spring buckets, coil rubber spacers, sway bar, sway bar links,radius arms, radius arm brackets, 05+ steering box and pitman arm or modify your old box. 05+ track bar bracket and track bar,wheel speed sensors from your current axle, newer sensors do not work.i found out the hard way. from 1/2" drill bit, lots of grade 8 bolts and red locktite. and a **** tonne of patience

05+ coils, 10 Rear diff, box, tailgate, lights, bumper, Full 07 front harley swap...the list is endless.

AS IM RARLEY on here anymore...have a question ?? EMAIL ME dakinbryce@hotmail.com..ill gladly answer any of your questions. OR search me on facebook. ill help out anyway I can !

updated as of OCT 28/2013
03_Turbo7.3 is offline
post #10 of 96 Old 05-21-2012, 07:30 PM
Mob boss


Jarrod B's Avatar

Join Date: Jul 2008
Location: Austin Texas
Posts: 26,935
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 142 Post(s)
Thanks: 25
Thanked 27 Times in 25 Posts
Feedback Score: 1 reviews
man thats more than i thought. i have a complete 06 donner truck to pull parts from so its a complete setup. hmmmm all the research ive done are obs that has done it but yours was the first sd to read about. any more pics on it?
