The BIGRED got a new exhaust ...

Well, after a couple of days working on it for practically only moments after hours, I finally finished it up this morning. Came out really nice, and sounds great.

I took a lot of pics, so enjoy...
-

-

-

-

-

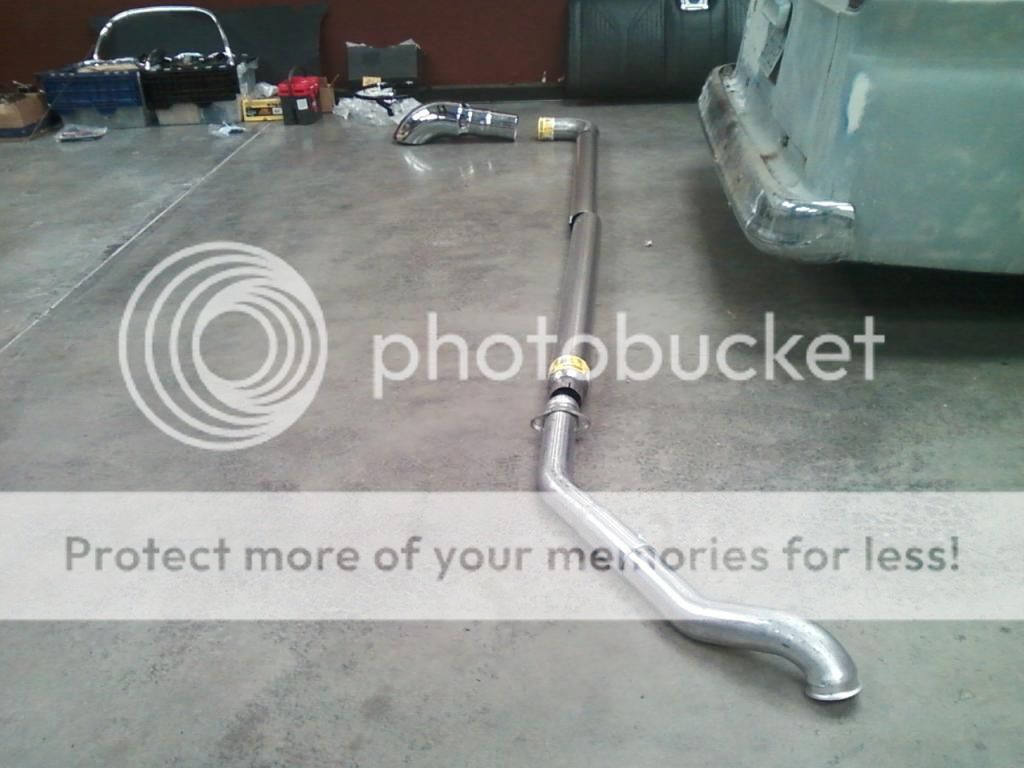

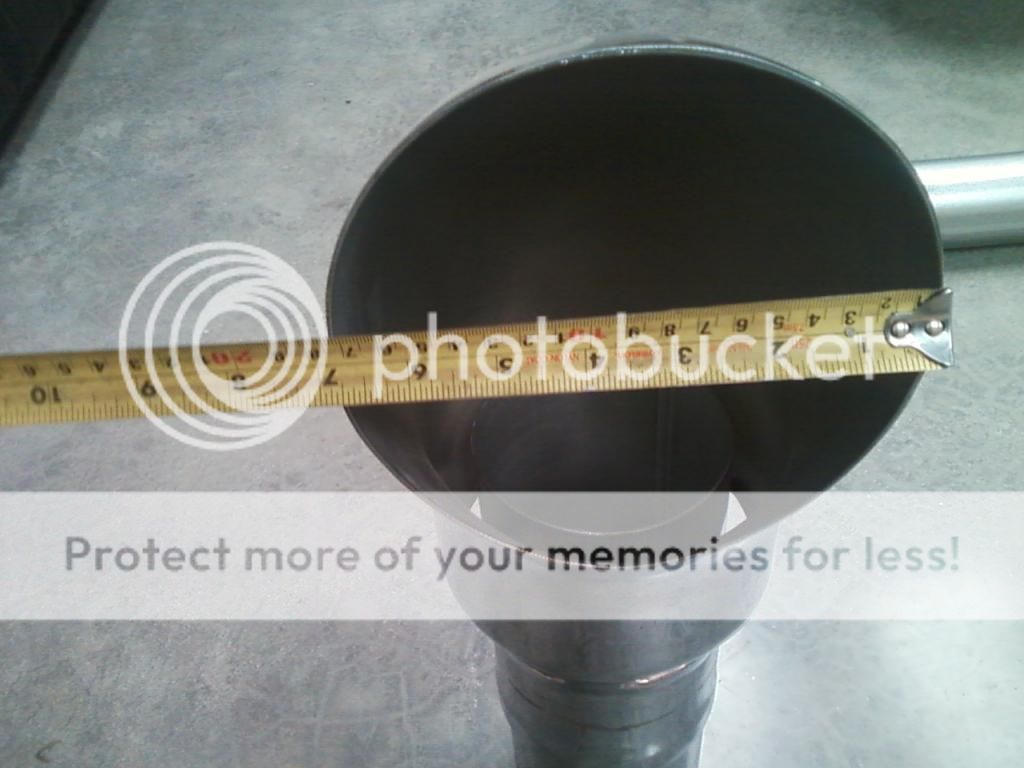

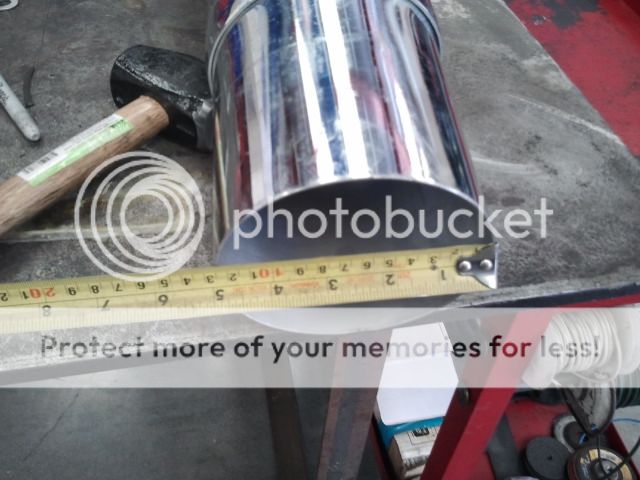

The ridiculous "small penis" chrome tip ....
-

-

-

-

John

2002 F-250, CCSB, 4" Exhaust, Stock otherwise

http://www.acchollister.com/

Last edited by ChiefRocka; 06-06-2013 at 06:26 AM.
ChiefRocka is offline
post #2 of 20 Old 06-05-2013, 10:14 PM Thread Starter
Compression Ignition Addict

ChiefRocka's Avatar

Join Date: Oct 2010
Location: Hollister, CA
Posts: 280
Thanks: 27
Thanked 3 Times in 2 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
After wrestling the stock downpipe out ... and wrestling the new one in, I quickly realized I didn't like how close the pipe was to the tranny.

Since I had extra pipe from a customers Flowmaster system, I decided to kick it out a bit ... while keeping it all level and square ....
-

-

-

-

-

-

-

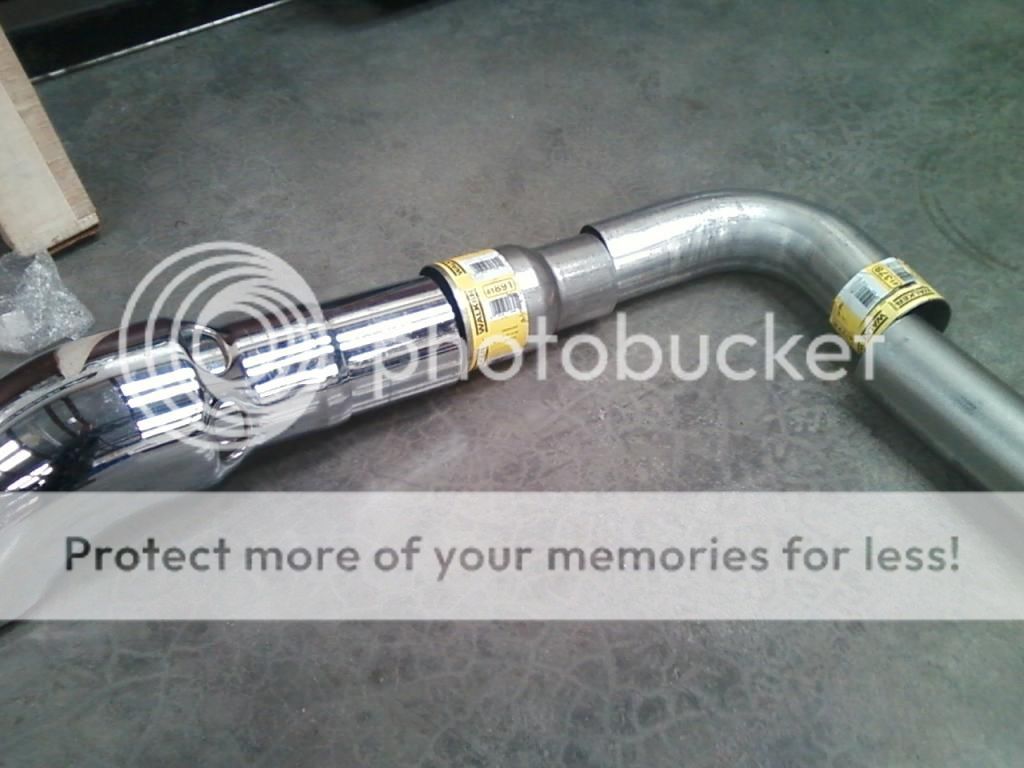

If you notice, I cut off the flange of the DE pipe ... no cat ... and I wanted to make it all slip fit.... For the 3", I used one of these leftover clamps. I hit it with the polisher. why not ?
-

John

2002 F-250, CCSB, 4" Exhaust, Stock otherwise

http://www.acchollister.com/

Last edited by ChiefRocka; 06-06-2013 at 06:28 AM.
ChiefRocka is offline
post #3 of 20 Old 06-05-2013, 10:22 PM Thread Starter
Compression Ignition Addict

ChiefRocka's Avatar

Join Date: Oct 2010
Location: Hollister, CA
Posts: 280
Thanks: 27
Thanked 3 Times in 2 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
I removed the first hanger (the one right above where the cat would be) and modified it to my needs ....
-
Cut off the end mount, welded the seam, trimmed the gussets ... and gave it some paint ...
-
The first hanger rod was made out of 1/2" (I know, super kill) but it fit snug in orange hanger ...
-
After mockup, I tacked, removed, fully welded, painted and reinstalled the first pipe section....
-

-

-

-

-

-

-

-

John

2002 F-250, CCSB, 4" Exhaust, Stock otherwise

http://www.acchollister.com/

Last edited by ChiefRocka; 06-06-2013 at 06:31 AM.
ChiefRocka is offline
post #4 of 20 Old 06-05-2013, 10:27 PM Thread Starter
Compression Ignition Addict

ChiefRocka's Avatar

Join Date: Oct 2010
Location: Hollister, CA
Posts: 280
Thanks: 27
Thanked 3 Times in 2 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
-
-
HMMMMM.......
-
-

-
-
(No thanks!)
-
-
Using some jackstands, I was trying to decide placement ....
-
-
-

-

-

-

Tack weld, mock up ...
-

-
Looks too long ... screw it, weld it up !!
-
-

-

John

2002 F-250, CCSB, 4" Exhaust, Stock otherwise

http://www.acchollister.com/

Last edited by ChiefRocka; 06-06-2013 at 06:42 AM.
ChiefRocka is offline
post #5 of 20 Old 06-05-2013, 10:35 PM
DERAIL MOD!!!



351fifty's Avatar

Join Date: May 2011
Location: Canton and kennesaw
Posts: 23,180
Thanks: 34
Thanked 207 Times in 195 Posts
Mentioned: 1 Post(s)
Quoted: 3 Post(s)
Feedback Score: 4 reviews
Looks good, and my trans has a heat shield between the down pipe and trans

-Kris-
2000 excursion V10 2wd 230k
2000 Excursion 7.3 4x4 246k
1995 CCLB DRW 324K
2001 CCLB DRW 319K
Dp tuner infinity, exhaust, intake, chipped, tricked, and wrecked


Quote:
Originally Posted by marine5811
The stock downpipe in an OBS is flat because I'm a ginger.
Quote:
Originally Posted by alberta 7.3
Finding a decent woman is like shopping for a used truck. You spend most of your time picking through the money pits, wrecks, and basket cases until you find one that you can tolerate
Quote:
Originally Posted by JJFLASH
Well at least you caught the loose bolts before they cause any damage. Nothing worse than a sloppy hole
351fifty is offline
post #6 of 20 Old 06-05-2013, 10:40 PM Thread Starter
Compression Ignition Addict

ChiefRocka's Avatar

Join Date: Oct 2010
Location: Hollister, CA
Posts: 280
Thanks: 27
Thanked 3 Times in 2 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Next up was the middle hanger. Notice how much play there is between the slight bend and the nipple ... too much side to side play. This had to tightened up.
-
I did this by cutting off nipple, and welding in some washers...
-
Then made another hanger rod this time 3/8 to fit hanger....Tap with threads to ease installation ...
-
These slip fit clamps work GREAT !!
-
-

-

-

-

-

-

-

-
-

-

John

2002 F-250, CCSB, 4" Exhaust, Stock otherwise

http://www.acchollister.com/

Last edited by ChiefRocka; 06-06-2013 at 06:37 AM.
ChiefRocka is offline
post #7 of 20 Old 06-05-2013, 10:55 PM Thread Starter
Compression Ignition Addict

ChiefRocka's Avatar

Join Date: Oct 2010
Location: Hollister, CA
Posts: 280
Thanks: 27
Thanked 3 Times in 2 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
The third hanger (located at the rear of where the stock muffler would be) was flipped to the outside of the frame into the same holes ... and used to support the tip. This places two hanger close to each other for a nice support... (forgot to get pics of that hanger position)
-
-
Middle pipe done and painted...
-

-
-
-
ALL DONE !
-
-

-
-

-
I went with slip fit so if I decide to "jethoat" coat I can pull apart quickly. Next time we have to coat some pipes for a customer, I might throw mine in too !

Next I would like to cut and lower those side bars (they are too close to cab, and a little high for liking)

What ya'all think ??

John

2002 F-250, CCSB, 4" Exhaust, Stock otherwise

http://www.acchollister.com/

Last edited by ChiefRocka; 06-06-2013 at 06:40 AM.
ChiefRocka is offline
post #8 of 20 Old 06-05-2013, 11:02 PM Thread Starter
Compression Ignition Addict

ChiefRocka's Avatar

Join Date: Oct 2010
Location: Hollister, CA
Posts: 280
Thanks: 27
Thanked 3 Times in 2 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Quote:
Originally Posted by 351fifty View Post
Looks good, and my trans has a heat shield between the down pipe and trans
So does mine, (well, a tiny one) but I wanted it center a bit better ....

John

2002 F-250, CCSB, 4" Exhaust, Stock otherwise

http://www.acchollister.com/
ChiefRocka is offline
post #9 of 20 Old 06-05-2013, 11:03 PM
DERAIL MOD!!!



351fifty's Avatar

Join Date: May 2011
Location: Canton and kennesaw
Posts: 23,180
Thanks: 34
Thanked 207 Times in 195 Posts
Mentioned: 1 Post(s)
Quoted: 3 Post(s)
Feedback Score: 4 reviews
All the clamps in there look great, and big question, how does it sound?

-Kris-
2000 excursion V10 2wd 230k
2000 Excursion 7.3 4x4 246k
1995 CCLB DRW 324K
2001 CCLB DRW 319K
Dp tuner infinity, exhaust, intake, chipped, tricked, and wrecked


Quote:
Originally Posted by marine5811
The stock downpipe in an OBS is flat because I'm a ginger.
Quote:
Originally Posted by alberta 7.3
Finding a decent woman is like shopping for a used truck. You spend most of your time picking through the money pits, wrecks, and basket cases until you find one that you can tolerate
Quote:
Originally Posted by JJFLASH
Well at least you caught the loose bolts before they cause any damage. Nothing worse than a sloppy hole
351fifty is offline
post #10 of 20 Old 06-05-2013, 11:10 PM Thread Starter
Compression Ignition Addict

ChiefRocka's Avatar

Join Date: Oct 2010
Location: Hollister, CA
Posts: 280
Thanks: 27
Thanked 3 Times in 2 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Quote:
Originally Posted by 351fifty View Post
All the clamps in there look great, and big question, how does it sound?
I must say ... It sounds BAD F#CKIN A$$ !!

I did notice one important thing. (this must be from the down pipe) Right around 2500-2600 RPMS, the turbo seems to spool faster...no more power, just a quicker response.

I wasn't expecting much, if anything, but I can honestly notice something. Next up, is the WIX filter sitting on my desk.

Hmmm, what next cheap mod should I do ?? Buy a resistor ??

John

2002 F-250, CCSB, 4" Exhaust, Stock otherwise

http://www.acchollister.com/
ChiefRocka is offline
