How to: Grab Handles for the OBS

Originally Posted:7/14/11


Here's a little write-up about something that rarely gets elaborated on. Adding grab handles to an OBS..

One common beef that passengers have always had about my truck is that it's too hard to get into. My truck isn't crazy tall although it sits on 35s, it seems to have just enough ground clearance to make getting in some sort of acrobatic stunt for some passengers. In the process they usually smash down the sides of the seat cushion or try to pull on something that isnt intended to be used as a hoisting device.
I do give some credit to some passengers. They actually jump right on in perfectly. You'll know she's worth keeping around a little longer if she knows how to get in and not complain.

Alright, down to business..

My install was patterned after this guys pictures. He did this mod about 8 years ago with handles out of an 80s subaru, but he never elaborated on any of the forums. But his pictures were very helpful at the least.
Grab Handles, Cell Phone Bracket, Seat Trim, Tailgate Vise, Fused 12v Under-dash pictures from cars photos on webshots

I scooped up a full set of 3 grab handles from a 98 Ford Explorer. They were already opal gray in color and I liked their simple and effective design. These handles were used in several ford vehicles including Super Dutys.
*Although the handles were in the correct color i couldnt find all the rubber caps, so I grabbed some caps from a different colored interior. To solve the difference in color I ordered a can of Opal Gray interior paint made by SEM from here..
Mustang Parts, Chevy Truck Parts & Dodge Challenger Parts at Latemodel Restoration Supply
The paint matched perfectly for me.

Since mounting into the A-pillar is an extremely difficult task I decided I would mount the handles above each passenger door forward of center. I find they function great in the spot i chose.

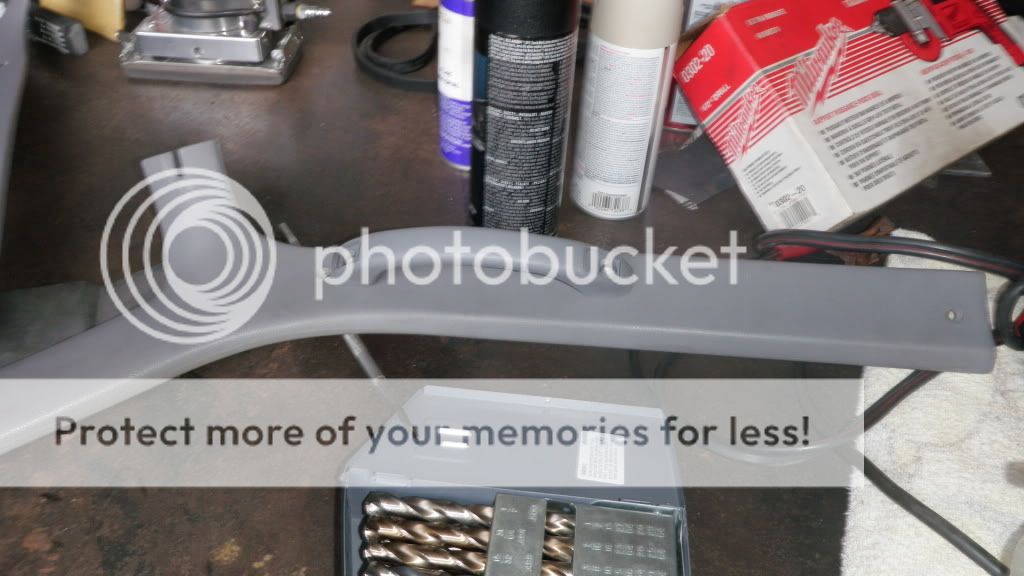

So I marked where i wanted them on the truck and marked them in the same spot on the plastic trim.


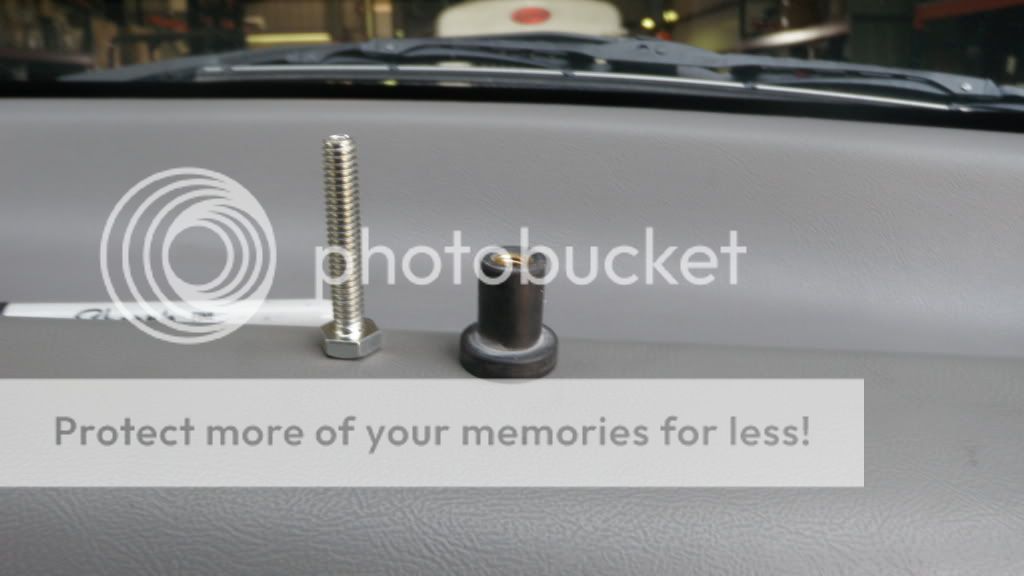

For the hardware I went with 1.5" 1/4"-20 bolts and 1/4"-20 Well Nuts aka (expansion nuts). Note, there is plenty of room for 1.5" long bolts to fit in between the roof and door frame without interference.

Note that 1/4" is a bit overkill and 3/16" is more than fine. I found it hard to put a socket around the bolt head because the bolt takes up most the space in the cavity of the handle.

Here's a shot of the factory fastener compared to the 1/4" bolt.

Next i drilled 1/4" holes in the appropriate spots on the trim pieces.


Next you can double check the holes in the trim pieces with the markings you made in the cab and prepare to drill out the holes in the cab to accept the well nuts.
For the well nuts you want the hole for them to be a bit snug. My well nuts were 1/2 in diameter so I chose a drill bit a few sizes down. The hole was a little small so I filed it the rest of the way out til I liked the fitment.


Next I set up all my hardware and attached the grab handle to the trim. Sorry i did grab any pics of the backside but you need to add a few washers between the trim and well nuts to fill the small gap between the trim and the cab. This keeps the trim piece from being stressed and indented.

So with all the washers on you can hand tighten the well nuts onto the bolts and pop the trim piece in the cab. Make sure the well nuts pop in all the way and then begin cinching them down. Once again I recommend going with hardware smaller than 3/16 for these specific handles because tightening them down was difficult since the cavity in the handle is a bit small for 1/4" bolts.
Once the handle is tight to your liking you're ready test them out. I had two 275lb brother and his buddy of about the same size test them out. The handles are as rigid as can be and it made it alot easier for those big guys to get in.

So here's some pictures of the finished product. A special thanks the Chase (superduty4x4) for supplying me an extra set of trim pieces for experimenting with these handles.


*Note the rear trim pieces look a bit bellied out behind the handle. Those rear pieces have always been bowed like that. I think the hole that the trims screw into on the rear of the piece were drilled to short from the factory.


John
'97-F-250 PSD CCSB 3.55s E40D, Dana 60, PMF 2.25" RSK, U Code SD Springs, 315/75/16 TerraGrapplers, Tow Mirrors, Colibert Tow hooks, RDS Stage 1s, PHP 80hp, RiffRaff 6637, 3"DP, 4" Exhaust, 6" Tip, Power Front Seats, Rear 40/20/40, Explorer OHC and Autolamp Rearview, EATC, Cree LEDs & more
'89-Bronco 5.0l 33"s Free flowing exhaust, 06 SD power seats, & more (SOLD)
'80-M35A2 "Deuce 'n a Half" W/winch Multifuel Soft top

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Last edited by 97Beast; 05-26-2012 at 09:16 AM.
97Beast is offline
Sponsored Links
Advertisement

post #2 of 10 Old 10-25-2011, 04:36 PM
DERAIL MOD!!!



351fifty's Avatar

Join Date: May 2011
Location: Canton and kennesaw
Posts: 23,180
Thanks: 34
Thanked 207 Times in 195 Posts
Mentioned: 1 Post(s)
Quoted: 3 Post(s)
Feedback Score: 4 reviews
I still need to fix my rear ones, think I mite go do that now.

-Kris-
2000 excursion V10 2wd 230k
2000 Excursion 7.3 4x4 246k
1995 CCLB DRW 324K
2001 CCLB DRW 319K
Dp tuner infinity, exhaust, intake, chipped, tricked, and wrecked
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


Quote:
Originally Posted by marine5811
The stock downpipe in an OBS is flat because I'm a ginger.
Quote:
Originally Posted by alberta 7.3
Finding a decent woman is like shopping for a used truck. You spend most of your time picking through the money pits, wrecks, and basket cases until you find one that you can tolerate
Quote:
Originally Posted by JJFLASH
Well at least you caught the loose bolts before they cause any damage. Nothing worse than a sloppy hole
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
351fifty is offline
post #3 of 10 Old 11-17-2011, 12:45 PM
Compression Ignition Addict

POWERSMOKIN's Avatar

Join Date: May 2007
Location: Colorado Springs, CO
Posts: 2,138
Thanks: 2
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
You need to create a thread with all of your mods, or a website. Like Guzzle has.
All of your write-ups are very good and things that i am interested in doing!

~Mike Lewis

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

1996 F-350 CC LB PSD
Beans Stage 1's - 6637 Intake - SD HPOP - 5" Exhaust
E4OD w/ Shift Kit - Sky MFG Reverse Shackle
265,000MI
POWERSMOKIN is offline
post #4 of 10 Old 11-17-2011, 05:18 PM Thread Starter
Compression Ignition Addict

97Beast's Avatar

Join Date: Jul 2008
Location: Richmond / College Station TX
Posts: 2,494
Thanks: 0
Thanked 1 Time in 1 Post
Mentioned: 0 Post(s)
Quoted: 13 Post(s)
Feedback Score: 0 reviews
Quote:
Originally Posted by POWERSMOKIN View Post
You need to create a thread with all of your mods, or a website. Like Guzzle has.
All of your write-ups are very good and things that i am interested in doing!
haha Thanks! I mean i dont have near as much done to my truck as some others do. But maybe once I have more stuff done, i'll finally put together a little "build" thread for my 97.

John
'97-F-250 PSD CCSB 3.55s E40D, Dana 60, PMF 2.25" RSK, U Code SD Springs, 315/75/16 TerraGrapplers, Tow Mirrors, Colibert Tow hooks, RDS Stage 1s, PHP 80hp, RiffRaff 6637, 3"DP, 4" Exhaust, 6" Tip, Power Front Seats, Rear 40/20/40, Explorer OHC and Autolamp Rearview, EATC, Cree LEDs & more
'89-Bronco 5.0l 33"s Free flowing exhaust, 06 SD power seats, & more (SOLD)
'80-M35A2 "Deuce 'n a Half" W/winch Multifuel Soft top

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
97Beast is offline
post #5 of 10 Old 11-18-2011, 01:19 AM
Compression Ignition Addict

glovemeister's Avatar

Join Date: Sep 2011
Posts: 2,052
Thanks: 0
Thanked 3 Times in 3 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Very nice 97! Since your the expert on grab handles any idea as to what it would take to install them on the outside, as in the metal grab bars.
glovemeister is offline
post #6 of 10 Old 11-18-2011, 06:33 AM
Compression Ignition Addict

Red '97's Avatar

Join Date: Oct 2010
Location: Nunn, Colorado
Posts: 840
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
thats so sick haha i really need some OH S*** handles for mine... and powersmokin, your truck is SICK.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
-Conner

1997 F-250 Long Bed Extended Cab
--7.3 Powerstroke E40D Auto
--4.10 Rear End
--280,000 Miles
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


-Napa 6637 DIY CAI
-3 inch DP, 5 inch under truck, 6 inch Mitre!!
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

-2nd gen Wicked Wheel from Dieselsite
-Tony Wildman 6 Position Chip
Broke College Kid Mod
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.

Now residing in LARAMIE, WY for school at the University of Wyoming! Hit me up if youre around, I'm always down for a hot rodding adventure
To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


"Never cut what you can untie"
--Buckaroo Proverb
Red '97 is offline
post #7 of 10 Old 05-23-2012, 11:13 PM
Compression Ignition Addict

Maverick1701's Avatar

Join Date: Nov 2008
Location: Memphis, TX
Posts: 1,374
Thanks: 0
Thanked 1 Time in 1 Post
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Send a message via AIM to Maverick1701
man that is a cool mod! I picked up some SD handles off clist and am going to install as soon as I get the time

ChrisChris
2003 Kawasaki KLR650
1997 Ford Expedition 4x4
1967 Kaiser Jeep M35A2 6x6
2016 Silverado 4x4 Crew-Cab LS/Police


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.



To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
Maverick1701 is offline
post #8 of 10 Old 05-26-2012, 06:41 AM
Compression Ignition Addict

leojr's Avatar

Join Date: Aug 2011
Posts: 679
Thanks: 1
Thanked 8 Times in 7 Posts
Mentioned: 0 Post(s)
Quoted: 4 Post(s)
Feedback Score: 0 reviews
97Beast, About 6 months ago I did this mod based on your pictures! The only variation was that I used allen head bolts. I also took the clothes hanger hooks from the donor Explorers and installed them at the rear doors. There is already a slot in the steel body for this so it's almost a factory fit.

Denton, TX

I envy those that know exactly which modification to make and in the most logical of sequences. But not enough to trade for my meanderings and misfires.

1996 F250 crew cab/short bed, 4x4, auto PSD, 6637 air filter, interior grab handles, stainless window vents, remote door locks work with engine running mod.

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.


To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
leojr is offline
post #9 of 10 Old 05-26-2012, 09:16 AM Thread Starter
Compression Ignition Addict

97Beast's Avatar

Join Date: Jul 2008
Location: Richmond / College Station TX
Posts: 2,494
Thanks: 0
Thanked 1 Time in 1 Post
Mentioned: 0 Post(s)
Quoted: 13 Post(s)
Feedback Score: 0 reviews
Quote:
Originally Posted by 97Beast View Post

I guess you are referring to the slots in the picture above. Thats not a bad idea at all. It didnt take much longer for me to just drill out new holes, plus i wanted the handles toward the front of the door. Did you use well nuts on the back side??

John
'97-F-250 PSD CCSB 3.55s E40D, Dana 60, PMF 2.25" RSK, U Code SD Springs, 315/75/16 TerraGrapplers, Tow Mirrors, Colibert Tow hooks, RDS Stage 1s, PHP 80hp, RiffRaff 6637, 3"DP, 4" Exhaust, 6" Tip, Power Front Seats, Rear 40/20/40, Explorer OHC and Autolamp Rearview, EATC, Cree LEDs & more
'89-Bronco 5.0l 33"s Free flowing exhaust, 06 SD power seats, & more (SOLD)
'80-M35A2 "Deuce 'n a Half" W/winch Multifuel Soft top

To view links or images in signatures your post count must be 10 or greater. You currently have 0 posts.
97Beast is offline
post #10 of 10 Old 05-26-2012, 03:34 PM
Compression Ignition Addict

leojr's Avatar

Join Date: Aug 2011
Posts: 679
Thanks: 1
Thanked 8 Times in 7 Posts
Mentioned: 0 Post(s)
Quoted: 4 Post(s)
Feedback Score: 0 reviews
I did use wellnuts on all four handles! The clothes hanger is at the rear of the back doors. That slot in your picture looks bigger than I remember the rear slots being.
