Mag-Hytec Rear Diff. Install <pics>

Difficultly: Very Easy
Tools: Rachet, 1/2" Socket, 1/4 Allen key, portable rotary tool with brass wire wheel. Shop rags, and drip pan, your choice of beer.
Time: Few hours of slowly working.

Ok so I ordered a Mag-Hytec Rear Diff. for its added capacity (~5 1/4 quarts), its dipstick, and magnet. Plus it adds something like 100RWHP

Pretty easy
Tools of the trade: Torque wrench, 1/4" Allen key, 1/2" socket, rachet, dremmel with brass wire wheel, shop rags, latex gloves because I can, and a drip pan

Place drip pan under the rear diff. and using the 1/2" socket start to remove the bolts, i would leave the top two in but loosened so you don't have to hold the rear diff when draining it out.

Keep the little tag for later and reinstall it for later references:

I did have to use a little mechanical agitation to break the seal and remove it:

After all the old gear fluid has been draining completly remove the rear diff and use the shop rags to clean up the old gearing inside.

Now I covered the gearings and used my dremmel with a brass wire wheel to clean up the outter rim of the diff. to clear off any old gasket material and what not and prep it for the o-ring seal that the Mag-Hytec pan uses:

After your statisfied you can remove all the shop rags and replace the old diff with the new Mag-Hytec cover using the 1/4" allen key and a torque wrench and tighten it down to 30 inch-pounds:

I used Royal Purple Max-Gear to fill the new diff. Took me 5 bottles to make it perfect in the middle of the dip stick.

TOTALED

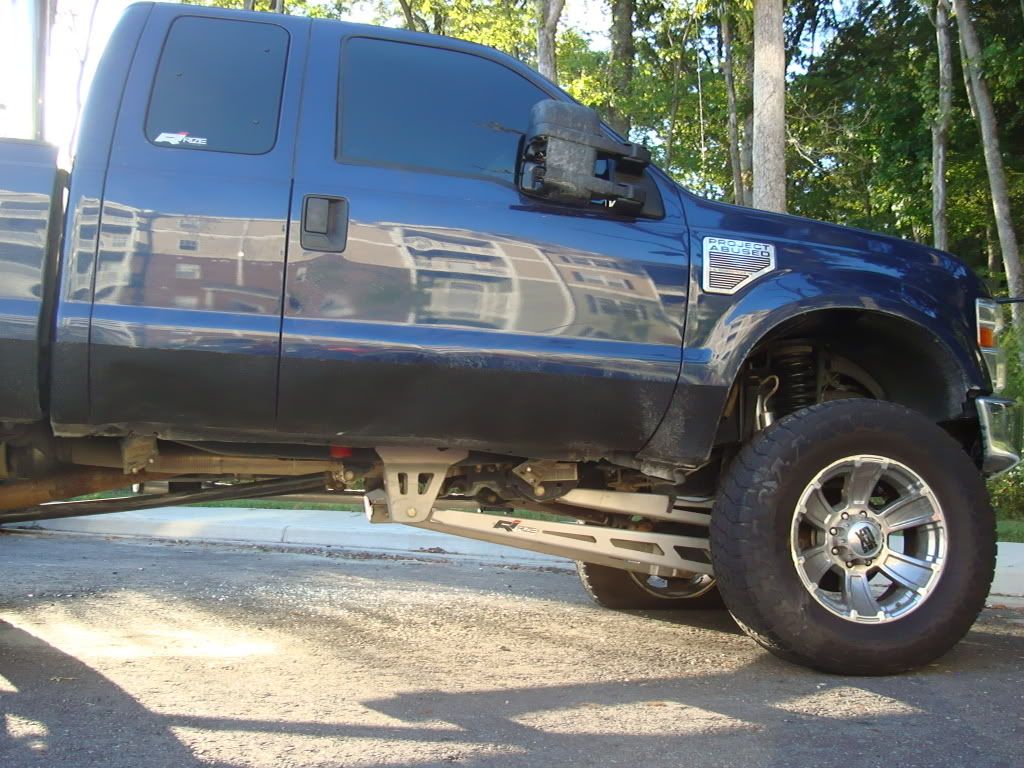

08 Super Cab F250 4x4:
Performance: No Cat/DPF, Spartan 275, MBRP, aFe, Snow Performance, NX, Farmboy Fab, Spearco, SunCoast, Autometer, Mag-Hytec, Fox Shocks, CCV Mod
Looks: Rize Quad Link & Steering Stabalizer, KMC, Nitto Terra, Herculined Rocker Panels, AVIC Z2
---
For sale
96 12V Reg. cab Long bed auto, BHAF, CFM, KDP killed, 0 plate, DDP4, HTT 64/71/14, ATS Exh. Manifold. Waiting to install 7" mitre single stack 60# springs 4kGSK.

Last edited by Goolsbymd; 07-12-2008 at 02:57 PM.
Goolsbymd is offline
post #2 of 22 Old 07-11-2008, 12:53 PM
Compression Ignition Addict

Lonno's Avatar

Join Date: Jul 2007
Location: San Diego
Posts: 3,151
Thanks: 0
Thanked 1 Time in 1 Post
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Thats just how I did it except I used Budweiser instead of the Coors light.

1970 F250 Crew Cab rebuilt/restored w/Cummin s 4bt

8v, M5R2 Tranny, VE pump, DennyT stage 2 pin, M&H Dynamic Timing, 3200k gov spring, Hx30/Hx35 Twins, 40hp styx, smoke screw screwed, star wheel cranked, Hydroboosted
91 Gillig Phantom, Converted transit bus, 6v92 Detroit Diesel

6500 Watt Diesel Generator on board

All Diesel All Day
Lonno is offline
post #3 of 22 Old 07-11-2008, 12:58 PM
Let's Run'em



TwinTurboStroker's Avatar

Join Date: May 2007
Location: El Paso, TX
Posts: 17,820
Thanks: 5
Thanked 16 Times in 15 Posts
Mentioned: 0 Post(s)
Quoted: 3 Post(s)
Feedback Score: 2 reviews
Send a message via AIM to TwinTurboStroker
Looks good man!

-Julian
Facebook
4th 6.fo
TwinTurboStroker is offline
post #4 of 22 Old 07-11-2008, 02:45 PM
Compression Ignition Addict

onebadf150's Avatar

Join Date: Aug 2007
Posts: 401
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
looks killer can't wait to get mine !!!
onebadf150 is offline
post #5 of 22 Old 07-11-2008, 05:02 PM
Powerstroke.org Fanatic

gixxer1's Avatar

Join Date: Mar 2008
Posts: 125
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
What's the advantage over the stock cover, as well I've seen on the forum some-one had put one on the transmission. How much are they suppose to lower the temps?
Look's great.
Thanks

2008 F-350 6.4l S&B intake
Spartan 275 tune with DPF delete pipe.
MBRP Dual exhaust
6" procomp lft kit
20x10 American racing wheels
37" Toyo M/T tires
Recon Led tail lights
Recon 3rd Brake light
Recon mirror lights
gixxer1 is offline
post #6 of 22 Old 07-11-2008, 05:25 PM
My 6OH Hates Me



mudrunninpig's Avatar

Join Date: Sep 2007
Location: Nexus of the Universe
Posts: 24,836
Thanks: 8
Thanked 27 Times in 26 Posts
Mentioned: 0 Post(s)
Quoted: 16 Post(s)
Feedback Score: 1 reviews
Looks great Matt

Mike




"The Iron Pig"



mudrunninpig is offline
post #7 of 22 Old 07-11-2008, 06:13 PM
Compression Ignition Addict

Pahrump's Avatar

Join Date: Feb 2008
Location: Beaumont TX
Posts: 3,802
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Wanna sell me the stocker?

2008 F250 FX4 CC SB Black on Black STOCK and SLOW...Rolled over and TOTALED...

2008 White with Black interior FX4 CCSB
Black C6 Vette
As far as actual HP numbers I have no idea. It don't snap your neck but.....It feels good.
Pahrump is offline
post #8 of 22 Old 07-11-2008, 06:17 PM
Compression Ignition Addict

Lonno's Avatar

Join Date: Jul 2007
Location: San Diego
Posts: 3,151
Thanks: 0
Thanked 1 Time in 1 Post
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Quote:
Originally Posted by gixxer1 View Post
What's the advantage over the stock cover, as well I've seen on the forum some-one had put one on the transmission. How much are they suppose to lower the temps?
Look's great.
Thanks
They are deeper and hold more oil.

1970 F250 Crew Cab rebuilt/restored w/Cummin s 4bt

8v, M5R2 Tranny, VE pump, DennyT stage 2 pin, M&H Dynamic Timing, 3200k gov spring, Hx30/Hx35 Twins, 40hp styx, smoke screw screwed, star wheel cranked, Hydroboosted
91 Gillig Phantom, Converted transit bus, 6v92 Detroit Diesel

6500 Watt Diesel Generator on board

All Diesel All Day
Lonno is offline
post #9 of 22 Old 07-11-2008, 06:26 PM
Compression Ignition Addict

fordmugg's Avatar

Join Date: Jun 2007
Location: west covina, CA
Posts: 1,933
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
looks good

my name is jeff but my friends call me.........jeff



2003 f-250 6.0 lariat, crew cab, long bed,fx4

Autometer guages
Z plate Zoodad
4inch turbo back
s&b intake
Pro comp
8.5 inch lift
Dual shocks
toyo 37's
stereo System
100% awesome
fordmugg is offline
post #10 of 22 Old 07-11-2008, 06:26 PM
Rice Hunter

Diesel Freak's Avatar

Join Date: Aug 2007
Location: Norfolk,VA...Near the beach
Posts: 4,036
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Great Job Matt!! Good choice on the cover!!

Lloyd Vice Director of Virginia Strokers
2006 F350 6.0L SuperDuty Lariat 4x4
Magnaflow 4" S.S. Turbo Back, Lost Cat, 5" S.S. Tip
Custom Tuned SCT
6" Fabtech 4-Link Suspension- Dirt Logic Shocks-Dual steering Stabilizers
S.S. Brake Lines
Fumoto oil Drain Valve
Accufab Polished Elbow
BFG 37"x12.5"x18" Load "D" All Terrains
ARP Head Studs
EGR Delete
'03 Turbo Swap


Diesel Freak is offline
