My DIY vent Mod

Hey guys! I know guys have posted theirs on here already but I am pretty proud of how these turned out so had to show you all. Hardest part of this was getting the guts to pry the vent off the body. Ya just gotta get a pair and do it! Took me about 30 mins to do the first one with all the trial fitting but the second only took 10 mins now that I had a template to go off.
Attached Thumbnails
Click image for larger version

Name:	Side vent disassembled.jpg
Views:	273
Size:	91.2 KB
ID:	15638   Click image for larger version

Name:	#3 Stainless Steel mesh 10"X10".jpg
Views:	218
Size:	95.4 KB
ID:	15639   Click image for larger version

Name:	Mesh trimed to fit.jpg
Views:	242
Size:	97.6 KB
ID:	15640   Click image for larger version

Name:	Vent reassembled.jpg
Views:	276
Size:	95.5 KB
ID:	15642   Click image for larger version

Name:	Side vent after.jpg
Views:	342
Size:	87.0 KB
ID:	15643


___________
Terry
08 F350 Superduty Lariat
:



Some mods!!
CanuckF350 is offline
post #2 of 16 Old 06-21-2010, 07:37 PM
Premium Member



dalton1's Avatar

Join Date: Sep 2008
Location: North Berwick
Posts: 1,829
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Looks Great!

03 F-250 Lariat Crew Cab SB 6.0L Auto 4x4
5" exhaust, AFE intake, Blue spring mod, EGR Delete, 58v FICM, Warren 175/75 injectors, Powermax Turbo,
ARP Head Studs, Coolant filter, Innovative tunes


Pine Tree Powerstroke Association Director
pm me for chapter info


dalton1 is offline
post #3 of 16 Old 06-22-2010, 11:06 AM
Compression Ignition Addict

Join Date: May 2008
Location: West Palm Beach, FL
Posts: 553
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Awesome! I love it. Im going to do this, for sure.

Few questions, Canuck:
How are the vents held on the fender?
Do they just pry off?
How do they re-attach?


2008 Ford F250 FX4 Supercab Shortbed Powerstroke Diesel
2006 Ford F350 XL Regular Cab 4x4 Powerstroke Diesel - SOLD
AW794 is offline
post #4 of 16 Old 06-22-2010, 11:41 AM Thread Starter
Compression Ignition Addict

CanuckF350's Avatar

Join Date: Jan 2009
Location: Saskatoon
Posts: 383
Thanks: 0
Thanked 3 Times in 1 Post
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Send a message via MSN to CanuckF350
Attached is a pic of the body panel with the vent removed. The slots you see are where there are clips holding the vent in place. There are five for the upper piece and 3 for the lower. I used a screwdriver wrapped in tape to pry them off with. I also used a rolled up rag to pry against. Start at the upper corners, the go down the side just above the joint of the two pieces. the fifth clip is a little tough to get at but if you have the first four popped out just pull straight out on the upper piece and it should come easily. The bottom piece comes off in a similar way just 3 clips. Note the pic for the placement of the clips. The slots are where they are. To get the FUGLY red piece off it is held on by two washers on two pins of the lower piece. gently pry up on the washers until ya get them off. I flattened them a little with a hammer so they would bite hard again when I reassembled it with my mesh in place. You will understand what I am talking about when you see them yourself. I test fit mine a whole pile of time before I put the washers back on. To reinstall put bottom piece onto the fender lining up the slots and give it a good push to get the clips to grab. Repeat with the upper piece
Attached Thumbnails
Click image for larger version

Name:	Body panel with vent removed.jpg
Views:	160
Size:	94.1 KB
ID:	15655

___________
Terry
08 F350 Superduty Lariat
:



Some mods!!
CanuckF350 is offline
post #5 of 16 Old 06-22-2010, 11:54 AM
Compression Ignition Addict

Join Date: May 2008
Location: West Palm Beach, FL
Posts: 553
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Quote:
Originally Posted by CanuckF350 View Post
Attached is a pic of the body panel with the vent removed. The slots you see are where there are clips holding the vent in place. There are five for the upper piece and 3 for the lower. I used a screwdriver wrapped in tape to pry them off with. I also used a rolled up rag to pry against. Start at the upper corners, the go down the side just above the joint of the two pieces. the fifth clip is a little tough to get at but if you have the first four popped out just pull straight out on the upper piece and it should come easily. The bottom piece comes off in a similar way just 3 clips. Note the pic for the placement of the clips. The slots are where they are. To get the FUGLY red piece off it is held on by two washers on two pins of the lower piece. gently pry up on the washers until ya get them off. I flattened them a little with a hammer so they would bite hard again when I reassembled it with my mesh in place. You will understand what I am talking about when you see them yourself. I test fit mine a whole pile of time before I put the washers back on. To reinstall put bottom piece onto the fender lining up the slots and give it a good push to get the clips to grab. Repeat with the upper piece
Awesome, thanks for the info brother! I think im going to spray all the chrome bits flat black, and also put similar mesh as you did in place of the ugly factory maroon color. We'll see how she turns out!


2008 Ford F250 FX4 Supercab Shortbed Powerstroke Diesel
2006 Ford F350 XL Regular Cab 4x4 Powerstroke Diesel - SOLD
AW794 is offline
post #6 of 16 Old 06-22-2010, 08:30 PM
Warheads on Foreheads

superdutydixie's Avatar

Join Date: Aug 2009
Location: Houghton, LA
Posts: 1,812
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
looks great!!! I need to do this but keep putting it off

09 F-250 Superduty CCSB
SOLD
superdutydixie is offline
post #7 of 16 Old 06-23-2010, 10:42 AM
Member

WildmanTrev's Avatar

Join Date: Jun 2009
Location: Vancouver, British Columbia
Posts: 54
Thanks: 0
Thanked 1 Time in 1 Post
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
My question is, Where did you find the mesh for the insert? Im also in canada and would like to do this too. I hate the plastic look.

2015 F350 Platinum Tuxedo Black
35" Toyo Open Country AT2
4" Zone Lift
SCT X4 with PIP tunes
No Limit 5" Intake
5" Flo Pro Straight DP Back Exhaust

Yaaa, I'm from Canada eh!
WildmanTrev is offline
post #8 of 16 Old 06-23-2010, 12:29 PM Thread Starter
Compression Ignition Addict

CanuckF350's Avatar

Join Date: Jan 2009
Location: Saskatoon
Posts: 383
Thanks: 0
Thanked 3 Times in 1 Post
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Send a message via MSN to CanuckF350
I used to work in a shop that specialized in stainless steel. So I got it from them at no charge.I am from Saskatoon but I am sure that with some phone calls or web searches in your area you should be able to find something. Sometimes the small local guys are the ones that have this stuff. I got two 10"X10" pieces and if you had to pay for it, it should be around $60.00 with the current prices on this mesh. Even if I would have had to pay for it, it was still way cheaper that what you can find in some online stores. I found some for like $380.00 and they looked pretty much the same. The best comment so far was from my wife. "Why do you always have to change stuff on your truck?" I told he "Wait you will see." Her response. "You could sell those! They look great!" Ahhh!! Music to my ears when the wife gets it.

___________
Terry
08 F350 Superduty Lariat
:



Some mods!!
CanuckF350 is offline
post #9 of 16 Old 07-05-2010, 04:41 PM
Powerstroke.org Rookie

Join Date: Sep 2008
Posts: 7
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
Just do it!

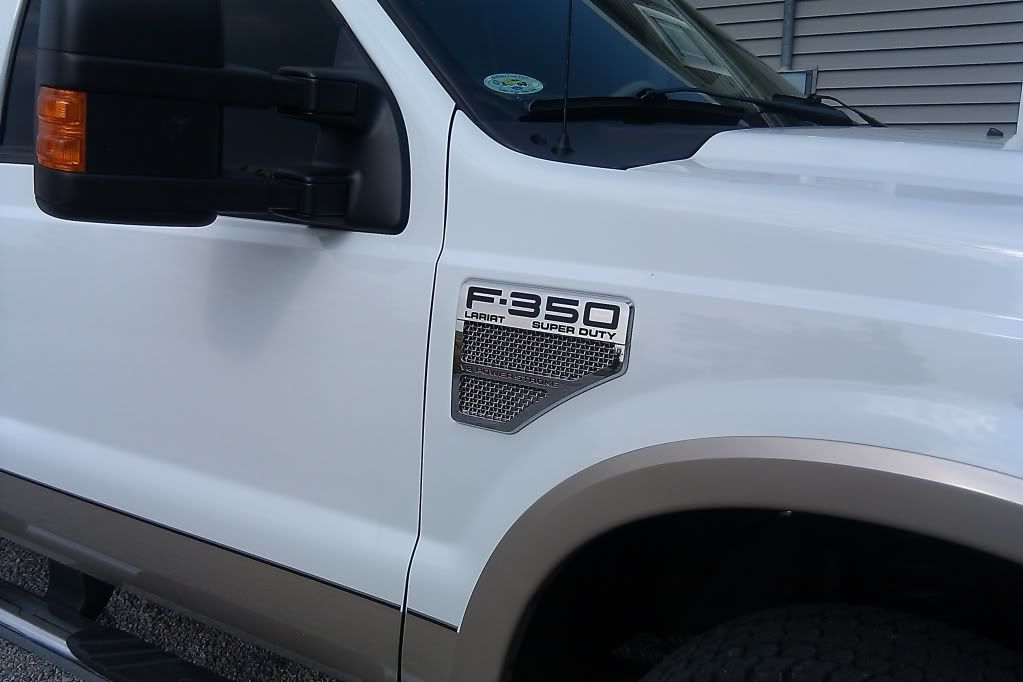

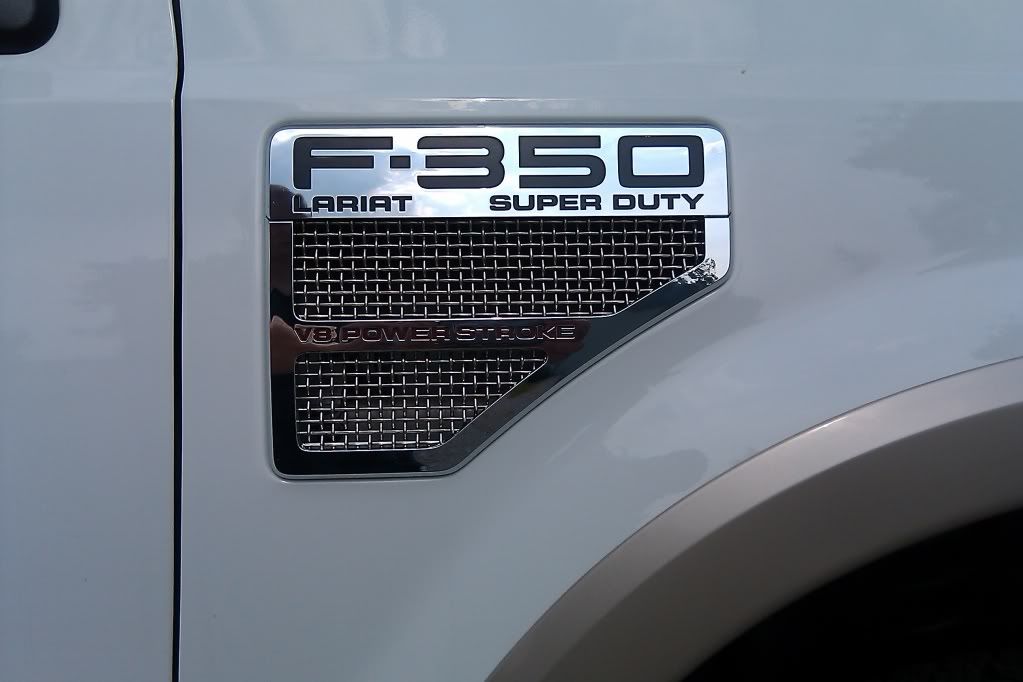

I did this mod over the weekend with good results. I went with a slightly tighter mesh. I used 4x4 .080" dia and went with 316 stainless wire cloth. I ordered a 12" x 24" sheet but could have easily gotten by with 12" x 12" for the project ordered from McMaster-Carr.






2008 F350 SRW CC Lariat PSD Spartan tuned
rabidsnowmobiler is offline
post #10 of 16 Old 07-09-2010, 04:24 PM
Powerstroke.org Rookie

Join Date: Apr 2010
Posts: 3
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
anyone know where to get the mesh in canada ? mcmaster carr wont ship to canada
