LEDs in the floorboards

So I have noticed a few threads about installing LEDs to shine in the floorboards. I ended up getting a roll of LEDs to make custom cut lengths to fit under the dash and seats.

I started out by deciding how I wanted to run the LEDs. Did I want them on a switch? Did I want them to come on with the headlights? Both? Well I decided on just a switched on. I wanted control over them just in case I ever got pulled over maybe. So I settled on using the cigarette lighter inside my console as the power source. I also got lucky and right below the cig lighter inside is a perfect flat spot made for a switch.

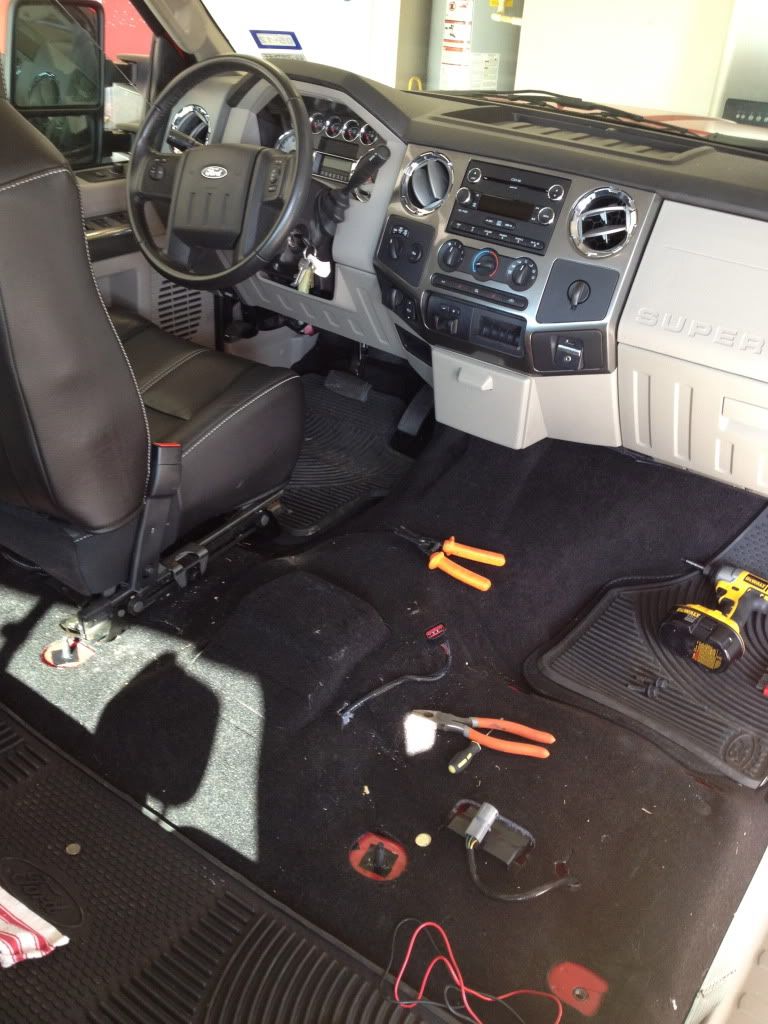

So I began by pulling out the front seats and console for easier access to running wiring. Surprisingly this was easier then I thought it would be. When running wiring to the front, I used a coat hanger and taped the wiring to it. Then I gently snaked it to the front being careful not to snag anything on the way.
[IMG][/IMG]

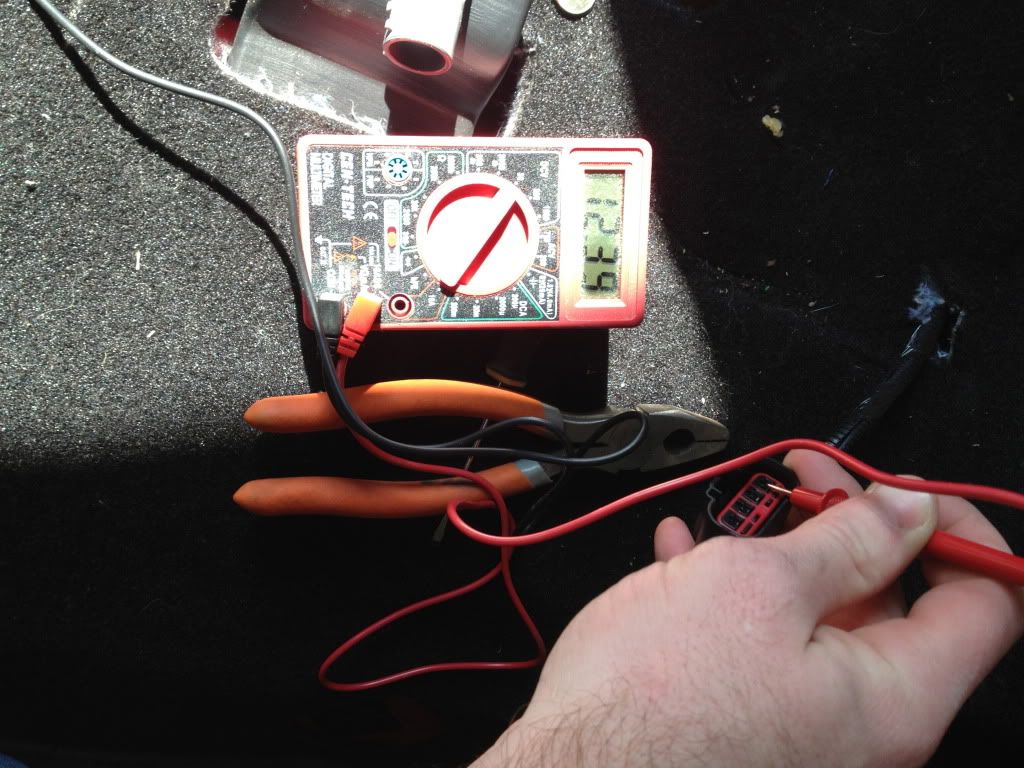

The console power is constant 12v so I can run the lights whenever I want. When removing the console you will notice a harness that needs to be unplugged to fully remove after unbolting. Here is a picture showing the juice I was getting while testing the harness for the right wiring to tap into.
[IMG][/IMG]

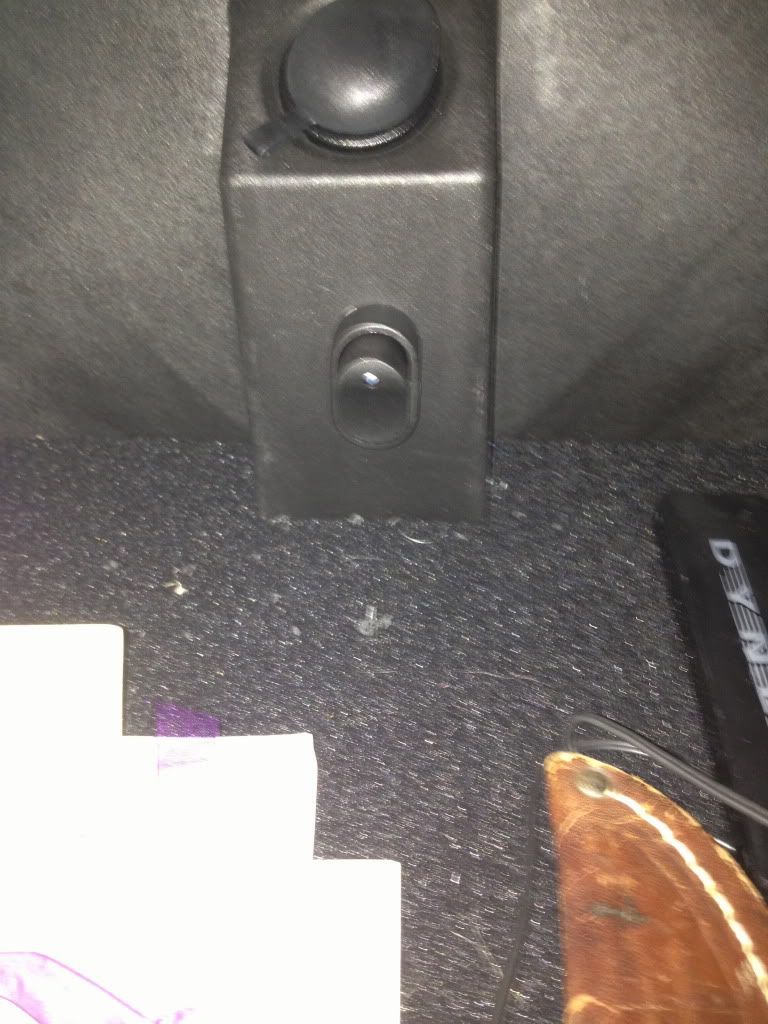

Ok, so after determining the ground and the power wire, I moved on to the console. Here I punched a hole in the space right below the cig lighter to mount the switch. I mounted the switch then tapped into the hot and ground wiring and plugged the spade connectors into the switch ports.

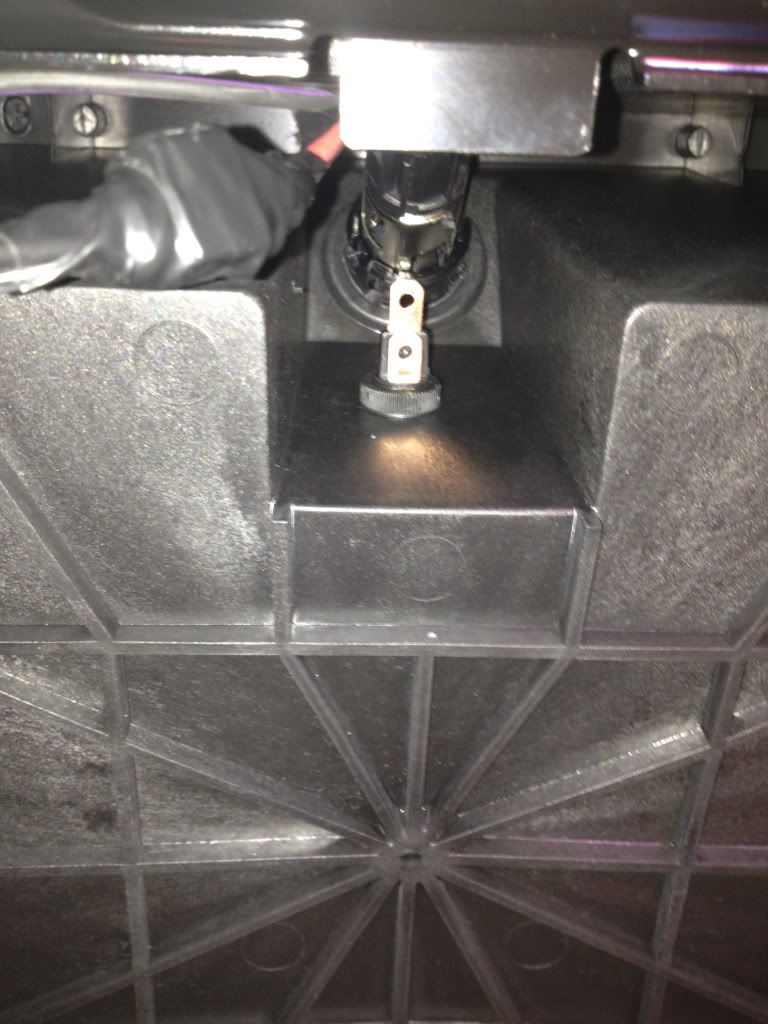

Underside of console looking up at switch backside and cig lighter above it.
[IMG][/IMG]

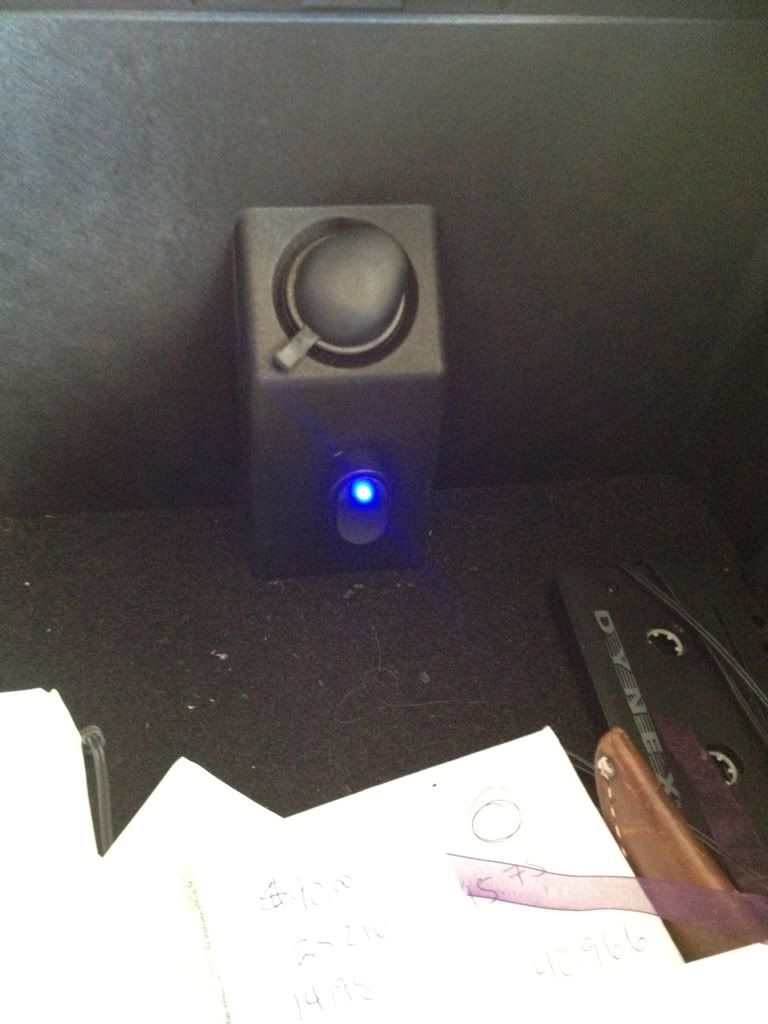

Inside console at installed switch.
[IMG][/IMG]

So I forgot to take some pictures of the process but after mounting the switch. I double checked my wiring to make sure everything was right. I put the console back into the truck and plugged the console harness back in. I did this to verify I was getting juice at each point where an LED strip would be. I wired in everything right and I had power!!!

[IMG][/IMG]

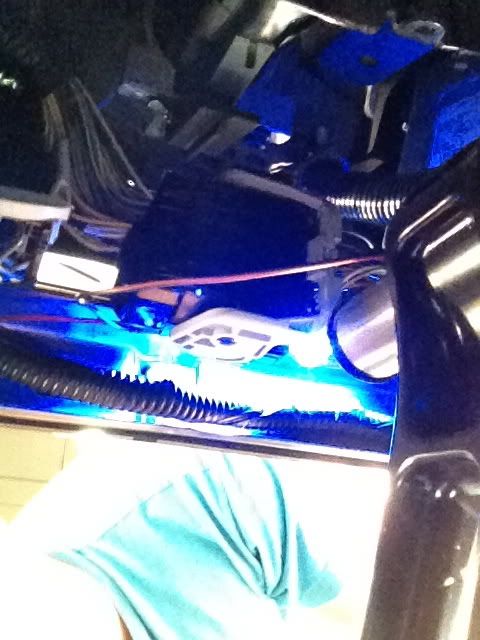

Next was unplugging the harness and install all of my LEDs. The only place that was somewhat hard on finding a spot to mount the LED was the driver front floor board. When looking up under the dash, you will find there arent very many good mounting places for a 6 inch long sticky strip. I found a flat spot right on the bottom inside edge, right above the OBD port and slightly blocked by a wiring loom. The wiring loom was easily moved up to prevent blocking of light. You can see the brake shaft that hold the pedal and arm in the pic.
[IMG][/IMG]

I moved onto the passenger side front floor board. I pulled down the hard carpet sound barrier and cut out a little bit of it to provide me with a better mounting surface to the bottom of the glove box.
[IMG][/IMG]

After the front was done, I moved to the back seat area lighting. On the bottom of the front seats on the back side is a metal 1/2" bar, this was a perfect mounting surface. The LED strips come with a 3M sticky double side tape on them. I instead used a very small zip tie and zipped them on here. I chose this way because the seat would be moved to the front and back and this would save the actual strip from trying to pull off, even with the spare wiring to help with this. So I also deciding to run a short 2 inch strip under the console cupholder to provide a small shot of light in the middle. Once wired up, I double checked to make sure everything worked and was wired right. I then hit the switch for the first time......

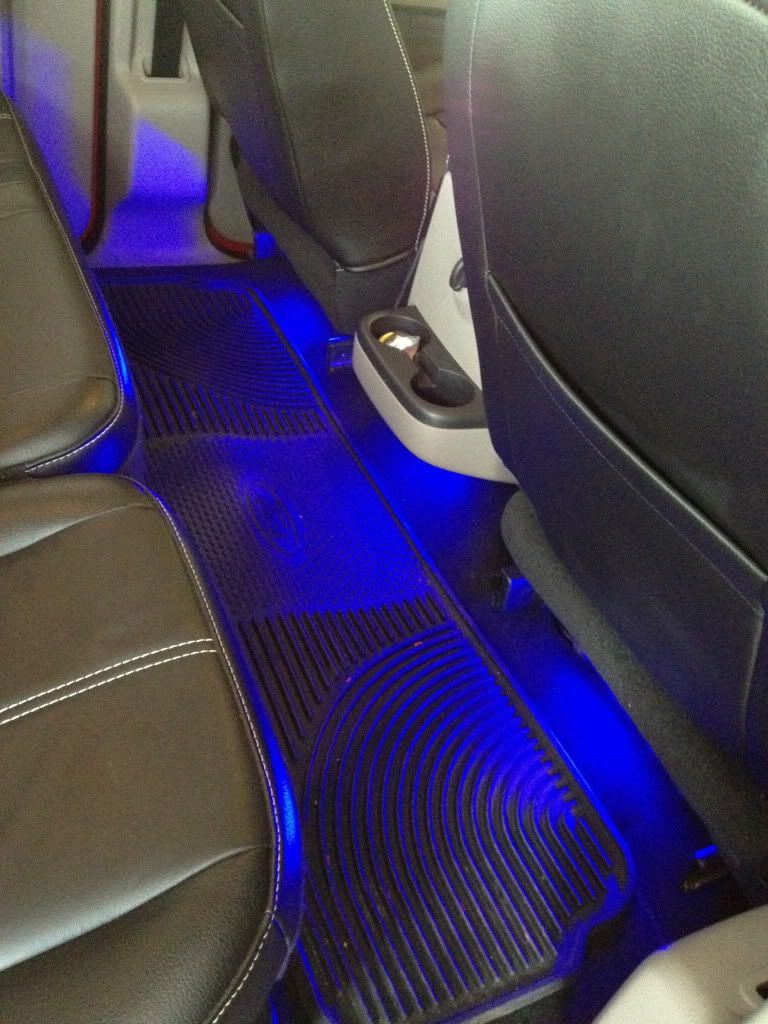

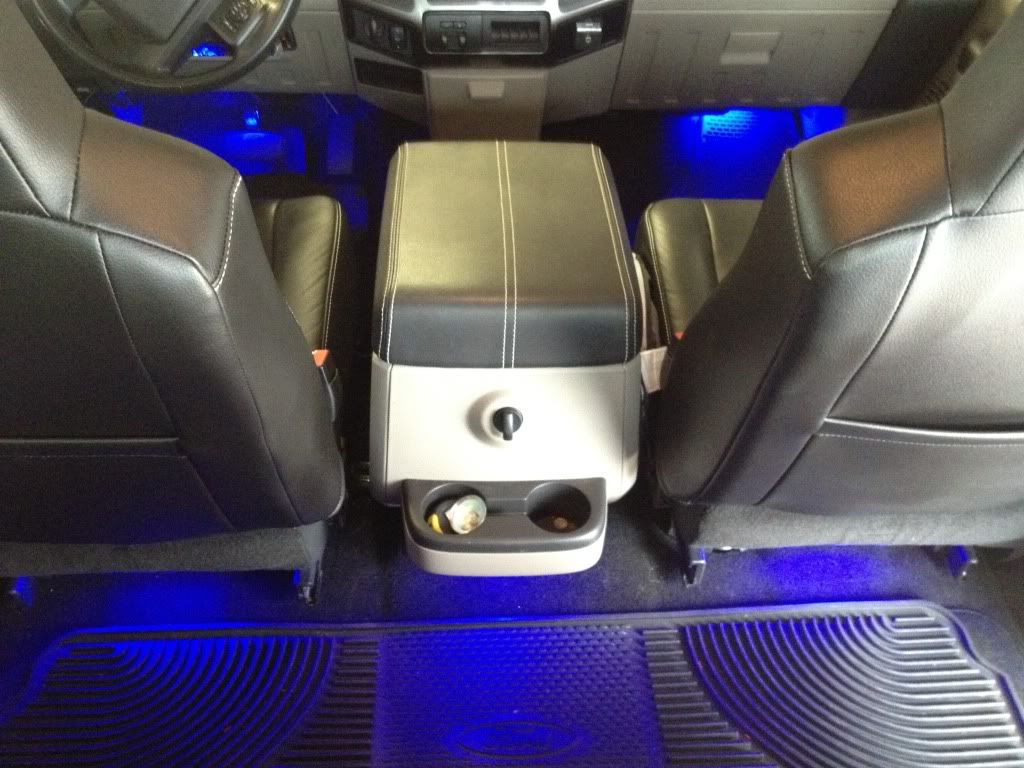

This picture was taken at 3 PM, so it was a little bright outside.
[IMG][/IMG]

[IMG][/IMG]

Also, here are a couple pictures of the LEDs that I made a custom length for the front and rear. These LEDs work great for all sorts of applications. Such as using them in your sub box, floor board lighting, tying into the door and shining on steps when door is opened(soon to come). I liked how it turned out and they are not overly bright. The light doesnt penetrate above the bottom seat level.

8 inch strip I made
[IMG][/IMG]

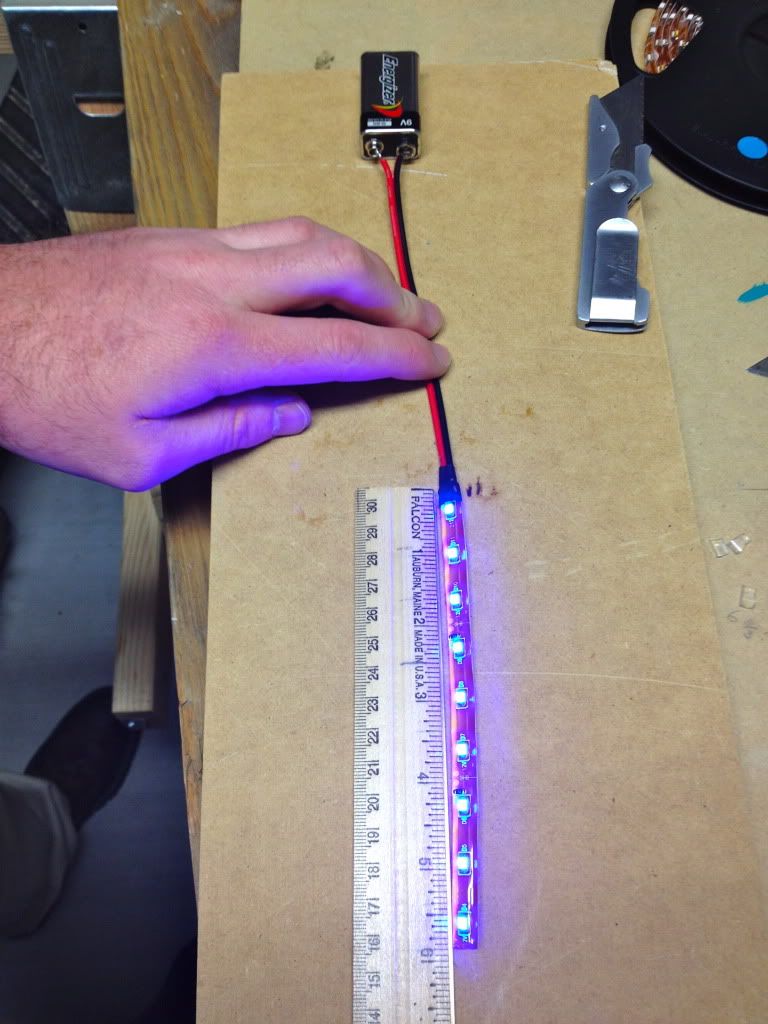

To test strips, I used a 9v battery.
[IMG][/IMG]

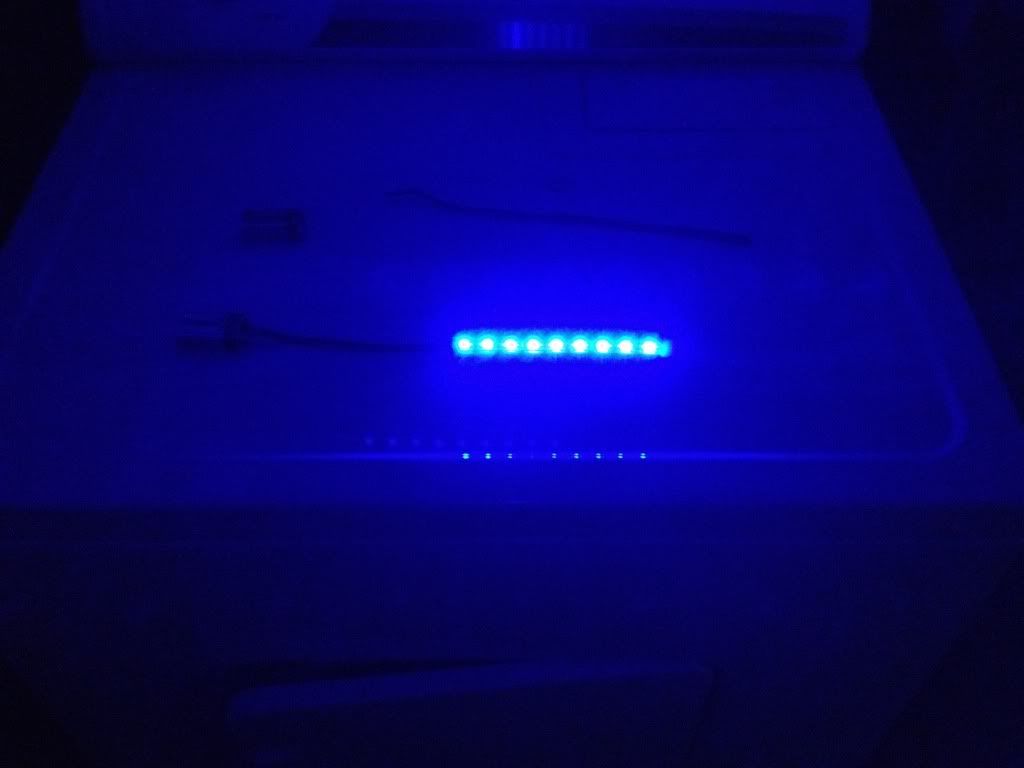

Here is a night shot of a 6 inch strip showing the brightness.
[IMG][/IMG]

If you have any questions, or are interested, PM and we can talk some more about the LEDs I have and maybe some good applications for them.
