DIY fuel system and reg. return where to start?

any threads on here for guys that built their own fuel system for the 6.0? I tried searching but don't think im looking in the right place keeping getting stuff for the 7.3
JBowen747 is offline
post #2 of 53 Old 07-20-2013, 05:30 AM
Premium Member

bondajb's Avatar

Join Date: Sep 2007
Posts: 969
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 66
Thanked 42 Times in 36 Posts
Feedback Score: 0 reviews
Custom regulated return help
This worked well for me..

Aaron 2005 f250 552/1040 45k miles
S&B. 4" mbrp, Arp's, Dual oil bypass. CCV fltr, Clnt fltr Mag trans pan 08 diff cover. 4.10's, 315's MotoMetal 951 & 5" lift.TGC trac bar, Bislstien Shocks & Dual stear stabilizer. B&W . Air Rides. Snows MPG Max. Edge Insight, fuel sens. DC Eng.185 alt. 58v ficm 6.4 Juger pump Fass sump
NO more mtw turbo
AJB Custom R.R.
AJB Custom y pipe
AJB P&P Intake
PHP Gryphon
Banks IC
BARDER Stg2
Warrens 175/30
P.I. T.C & input.
Flight Fab. Track bars
bondajb is offline
post #3 of 53 Old 07-20-2013, 05:32 AM
Compression Ignition Addict

Therabbittree's Avatar

Join Date: Nov 2011
Location: LaGrangeville,NY
Posts: 350
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Thanks: 0
Thanked 8 Times in 6 Posts
Feedback Score: 0 reviews
There are several threads on this forum alone. How are you searching?..

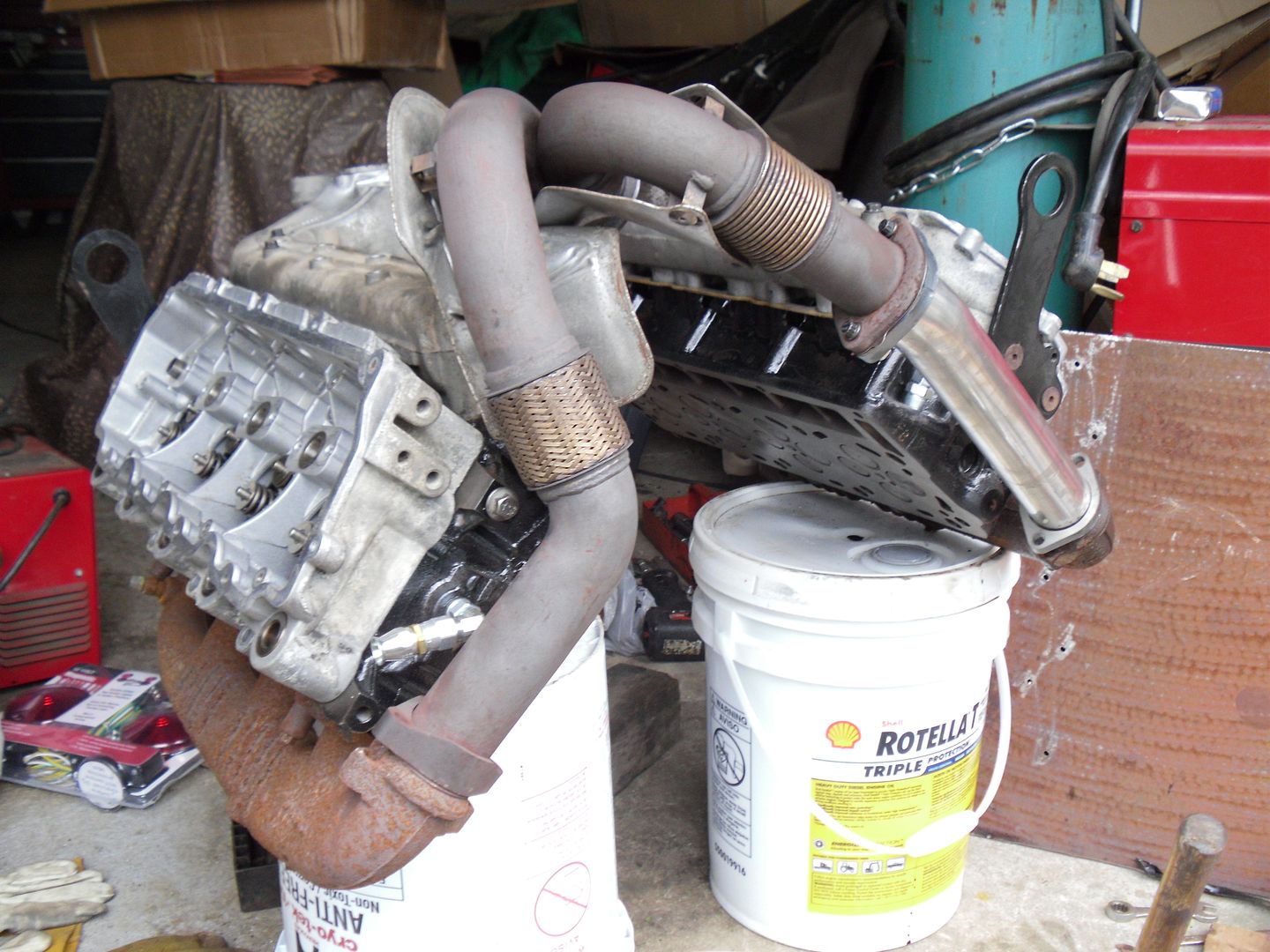

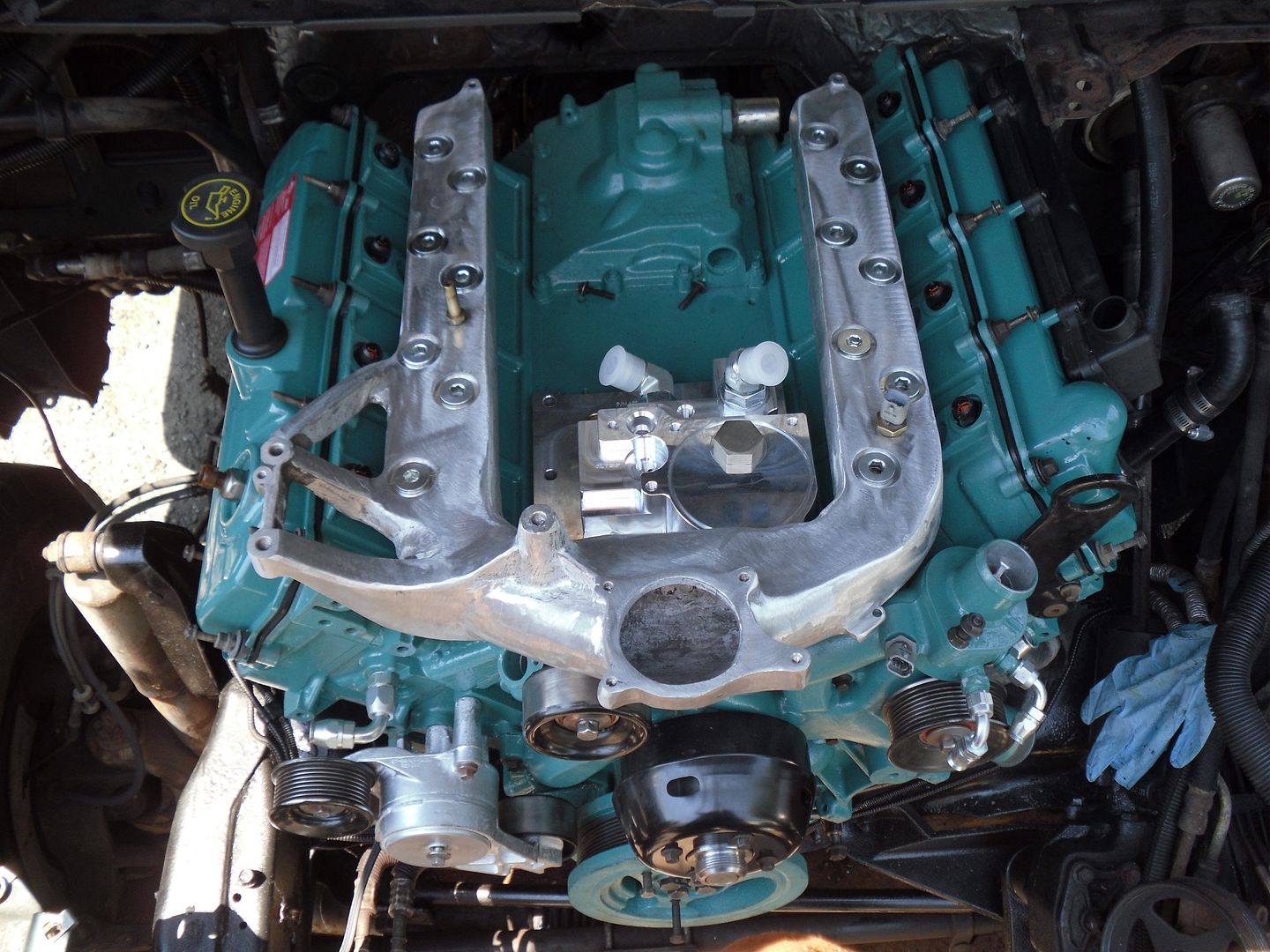

I'm building my own sump to engine and back to tank. documenting it all in my thread in the excursion section.

- I am going to run a beans sump,
- 1/2" eaton synflex line, to ball shut off valve,
- aeromotive 1000, shut off valve,
- 2 cummins fleet guard filter bases,
- running a water separator and fuel filter,
- to shutoff valve,
- more 1/2" synflex to Fragola y block,
- from y block running #8 aeroquip telfon lined hose to steel 1/2" 90 deg swivels into front of both heads..
- from rear of both heads I have steel 3/8" 90 deg swivels,
- #6 aeroquip teflon hose to aeromotive fuel pressure regulator remote mounted off engine in engine compartment,
- added a gauge to regulator,
- running 3/8" eaton synflex from regulator to factory 3/8" feed line before factory lift pump with an to ford 3/8" quick disconnect adapter.






- front of engine lines

- rear of heads

I will be starting the fuel system build shortly, have repair a tractor for my parents first. build will be speced out piece by piece in my thread. its the Driveway build in the excursion forum here.
Thanks,
Deo
Therabbittree is offline
post #4 of 53 Old 07-20-2013, 08:51 AM
Premium Member

snafu!'s Avatar

Join Date: May 2012
Location: Anchorage
Posts: 1,469
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 19
Thanked 50 Times in 43 Posts
Feedback Score: 1 reviews
Therabbittree I would suggest placing the water seperaror before your pump to protect it.

Cameron
2006 F250 Lariat CCSB
Comp Turbo 64/88 compounds
Warren 285/100
ODAWG ported intake
R&R rods, mahle pistons, stage 2 colt cam
Built Trans
Water/Meth
snafu! is offline
post #5 of 53 Old 07-20-2013, 10:24 AM
Compression Ignition Addict

617mach 1x's Avatar

Join Date: May 2011
Posts: 199
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
DIY fuel system and reg. return where to start?-imageuploadedbyautoguide1374344575.106097.jpgDIY fuel system and reg. return where to start?-imageuploadedbyautoguide1374344598.134896.jpgDIY fuel system and reg. return where to start?-imageuploadedbyautoguide1374344627.184889.jpgDIY fuel system and reg. return where to start?-imageuploadedbyautoguide1374344675.284838.jpg


Sent from AutoGuide.com App


studded, stacked,chipped

trans, turbo, tire and injectors??
617mach 1x is offline
post #6 of 53 Old 07-20-2013, 10:57 AM Thread Starter
Premium Member

Join Date: Dec 2012
Location: Proctor
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
ok thanks a lot guys! now I have a starting point, and I just done a threads seach at the top of the forum
JBowen747 is offline
post #7 of 53 Old 07-21-2013, 06:06 AM Thread Starter
Premium Member

Join Date: Dec 2012
Location: Proctor
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
Therabbittree what size are the metric ports on the front and back of the heads
JBowen747 is offline
post #8 of 53 Old 07-21-2013, 06:35 AM Thread Starter
Premium Member

Join Date: Dec 2012
Location: Proctor
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
Dumb question do I have to keep the factory lift pump to return the fuel to the tank ? Any pros and cons to this
JBowen747 is offline
post #9 of 53 Old 07-21-2013, 11:22 AM
Premium Member

snafu!'s Avatar

Join Date: May 2012
Location: Anchorage
Posts: 1,469
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 19
Thanked 50 Times in 43 Posts
Feedback Score: 1 reviews
Quote:
Originally Posted by JBowen747 View Post
Therabbittree what size are the metric ports on the front and back of the heads
The front and back of the heads are 12mmX1.5 oring boss. I got mine from summit. http://www.summitracing.com/parts/ear-949092erl

Quote:
Originally Posted by JBowen747 View Post
Dumb question do I have to keep the factory lift pump to return the fuel to the tank ? Any pros and cons to this
Depends on how big of injectors you plan on running, the stock HFCM is capable of supplying enough fuel for 175/75s. I see about a 7psi drop at WFO which puts me right in the sweet spot for fuel pressure (53PSI). IMHO a airdog 150 or 6.4 fuel pump feeding the HFCM will be a good setup for smaller injectors but if you plan on going big pull the HFCM and install a fuelab 41401.

Cameron
2006 F250 Lariat CCSB
Comp Turbo 64/88 compounds
Warren 285/100
ODAWG ported intake
R&R rods, mahle pistons, stage 2 colt cam
Built Trans
Water/Meth

Last edited by snafu!; 07-21-2013 at 11:32 AM.
snafu! is offline
post #10 of 53 Old 07-22-2013, 01:17 PM Thread Starter
Premium Member

Join Date: Dec 2012
Location: Proctor
Posts: 65
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks: 0
Thanked 0 Times in 0 Posts
Feedback Score: 0 reviews
would a areomotive A1000 work instead of the fuellab pump
