Wiring Aux Lights

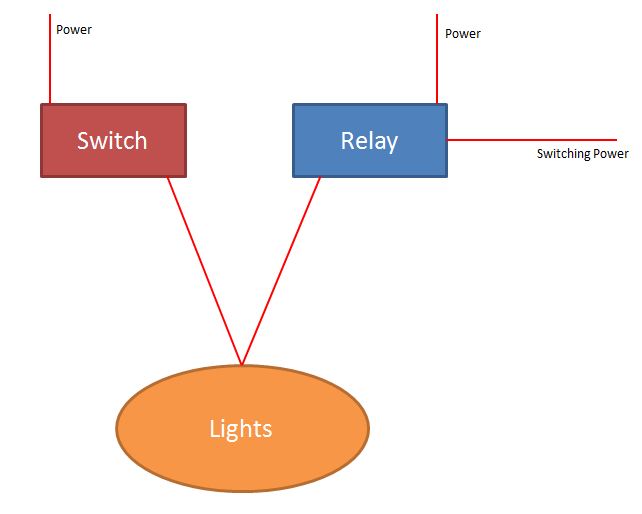

OK, I've found a few threads close to this but need some clarification. I plan to wire aux lights at the hitch for additional light. I want them switch controled from the dash and also to come on when in reverse. Is it possible to hook power up like shown below without causing a backfeed of power to the other source?


Early 1999 F-250 PSD SCLB
4" Turbo back - DIY 6637
Vip is offline
post #2 of 6 Old 08-25-2011, 06:44 PM
Member

Join Date: Apr 2011
Location: N.W. Alabama
Posts: 53
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
I'm sorry I can't see your picture. The filter at work eats it and all I see is a red X. From what I understand what your wanting to do is control the lamps from two sources. This will work fine but you will have to add a diode. This will let current pass in only one direction. That will prevent you from backfeeding.They are cheap. You could get by with using only 1 in the wire to the "brake on" wire, but as cheap as they are I would also put one in the wire to the dash mounted switch.

stock 6.0, BPD EGR cooler, coolant filter, CTS insight, STC fitting upgrade, fuel pressure spring upgrade, EGT probe, turbo cooldown, back-up camera, high idle mod, turbo drain tube upgrade
wjeffp2000 is offline
post #3 of 6 Old 08-25-2011, 11:17 PM
Serving Our Country!

JSchuricht's Avatar

Join Date: Aug 2007
Location: Manor, TX
Posts: 2,975
Thanks: 0
Thanked 27 Times in 26 Posts
Mentioned: 1 Post(s)
Quoted: 0 Post(s)
Feedback Score: 2 reviews
What I would do is use a on-on or on-off-on switch and a relay. The wiring is the same for both, just depends on if you want an off position on the switch.

Lets assume the switch is single pole on-off-on with three contacts on the back 1,2,3 from top to bottom. With the switch in down position 1 is connected to 2 and 3 is open, in the off position all are open, in the up position 2 is connected to 3 and 1 is open. 2 will be the output to the relay which will turn on the lights. 1 is connected to the reverse light 12v. 3 is connected to 12v constant. What you will end up with is in the down position the aux lights will come on with the backup lights, center position is aux lights off, up position will manually turn on the aux lights.

There are many way to wire it depending on the desired results. Your diagram will work as well, just add a relay between the switch and aux lights and use an appropriate fuse.

JSchuricht is offline
post #4 of 6 Old 08-26-2011, 03:53 AM Thread Starter
Vip
Powerstroke.org Fanatic

Join Date: Jun 2010
Location: Coatesville, IN
Posts: 114
Thanks: 0
Thanked 1 Time in 1 Post
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 1 reviews
Quote:
Originally Posted by JSchuricht View Post
There are many way to wire it depending on the desired results. Your diagram will work as well, just add a relay between the switch and aux lights and use an appropriate fuse.

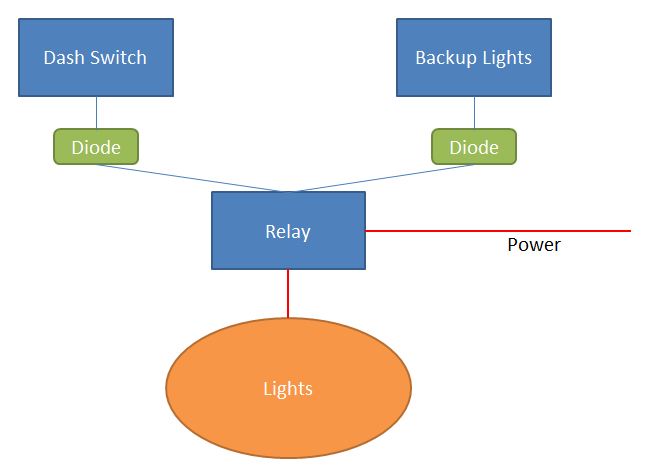

I am limited to an on/off switch on the dash due to the style that I already have mounted. I'm not sure that I understand the usage of an additional relay to the one already there. Using diodes, would this way work?

Vip is offline
post #5 of 6 Old 08-26-2011, 03:23 PM
Member

Join Date: Apr 2011
Location: N.W. Alabama
Posts: 53
Thanks: 0
Thanked 0 Times in 0 Posts
Mentioned: 0 Post(s)
Quoted: 0 Post(s)
Feedback Score: 0 reviews
If your limited I would go the diode route. THe switch on the dash needs a hot wire on one side. The other side run a wire to the lights but before connecting it to the light connect it one side of a diode. the other side of the diode to the light. Now connect another diode to the light/diode point. Now connect the other side of this diode to the brake light. Done. Note with this method you wont be able to turn them off. They will still work with the brakes. It just gives you the option to turn them on at will.


All a diode does is act like a one way gate. You can walk through one way but not the other. Look at it closely and you sill see a band on one end. They should be tied together with both banded ends going to the light. The other side of one diode will go to the switch and the other diode loose end will go to the brake circuit. I don't know what size light you will be using, just be sure to get a diode that will handle the current.

As stated earlier you could also use a relay with your switch to switch between the two conditions. This will take 2 wires going up to the cab. One switched and one hot all the time. Also another wire to the brake lights. If you mount the realy at the light. If relay is mounted at dash you will need to get the brake wire up there.

So many ways, so many dicisions.

stock 6.0, BPD EGR cooler, coolant filter, CTS insight, STC fitting upgrade, fuel pressure spring upgrade, EGT probe, turbo cooldown, back-up camera, high idle mod, turbo drain tube upgrade
wjeffp2000 is offline
post #6 of 6 Old 08-26-2011, 04:15 PM
Serving Our Country!

JSchuricht's Avatar

Join Date: Aug 2007
Location: Manor, TX
Posts: 2,975
Thanks: 0
Thanked 27 Times in 26 Posts
Mentioned: 1 Post(s)
Quoted: 0 Post(s)
Feedback Score: 2 reviews
Quote:
Originally Posted by Vip View Post
I am limited to an on/off switch on the dash due to the style that I already have mounted. I'm not sure that I understand the usage of an additional relay to the one already there. Using diodes, would this way work?

Like I said there are many ways to make this work. Your diagram will work, just check to see if the backup lights are positive or negative switched and match it with the same from your new switch.

The way you could do it with two relays vs diodes is to parallel the input and output of both relays, have one activated by the manual switch and the other by the backup lights. It would essentially be a OR circuit where either one or both "switches" can power the backup lights.
